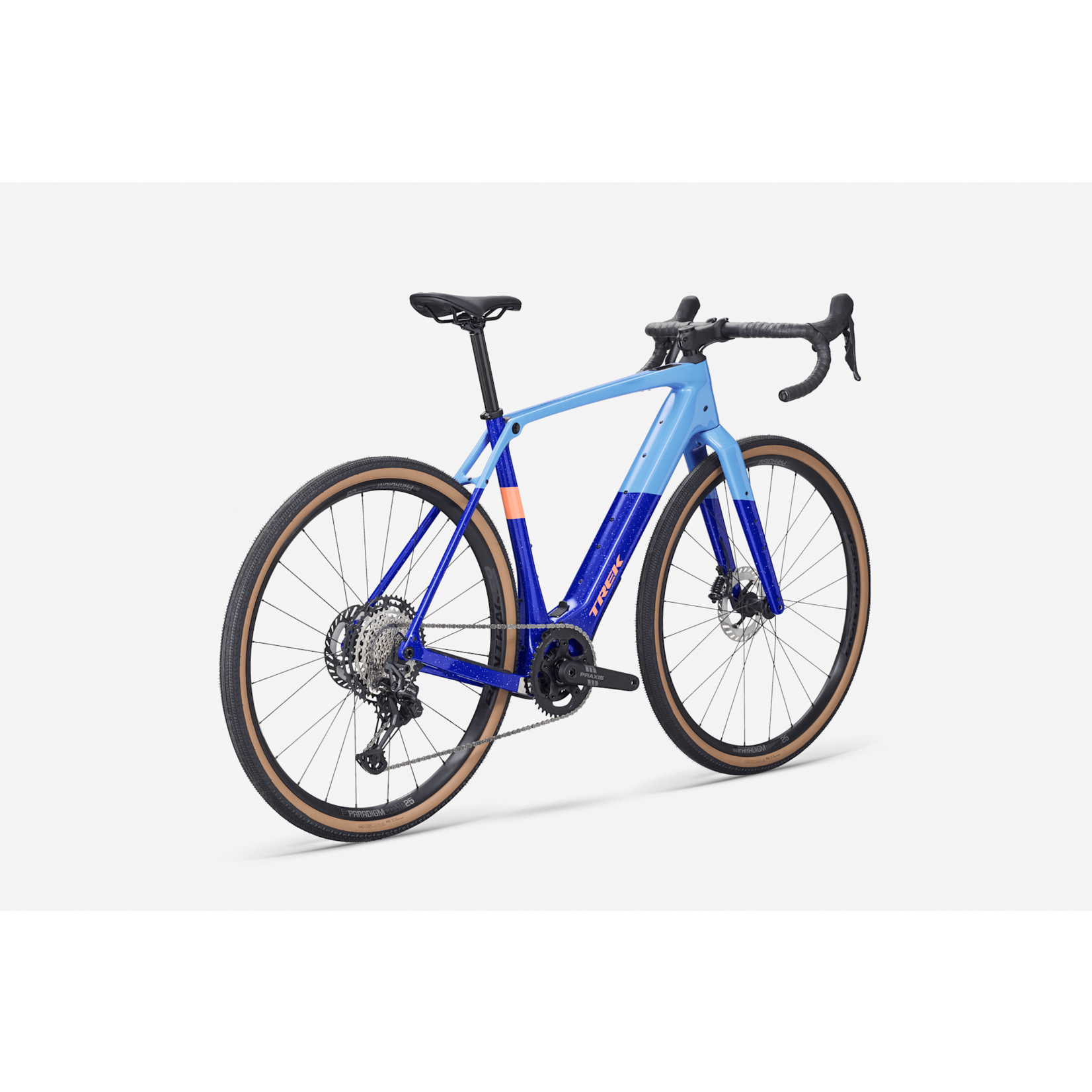

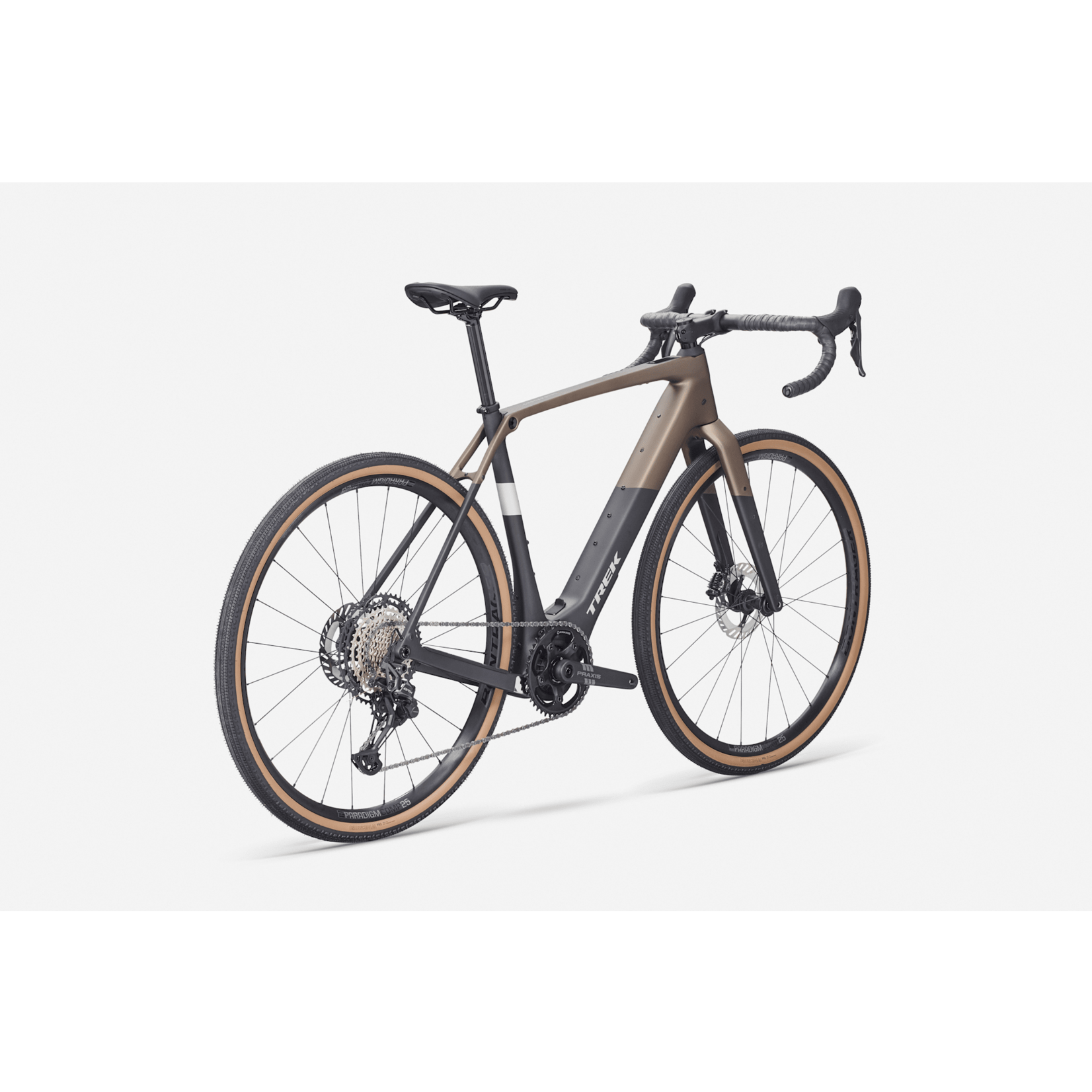

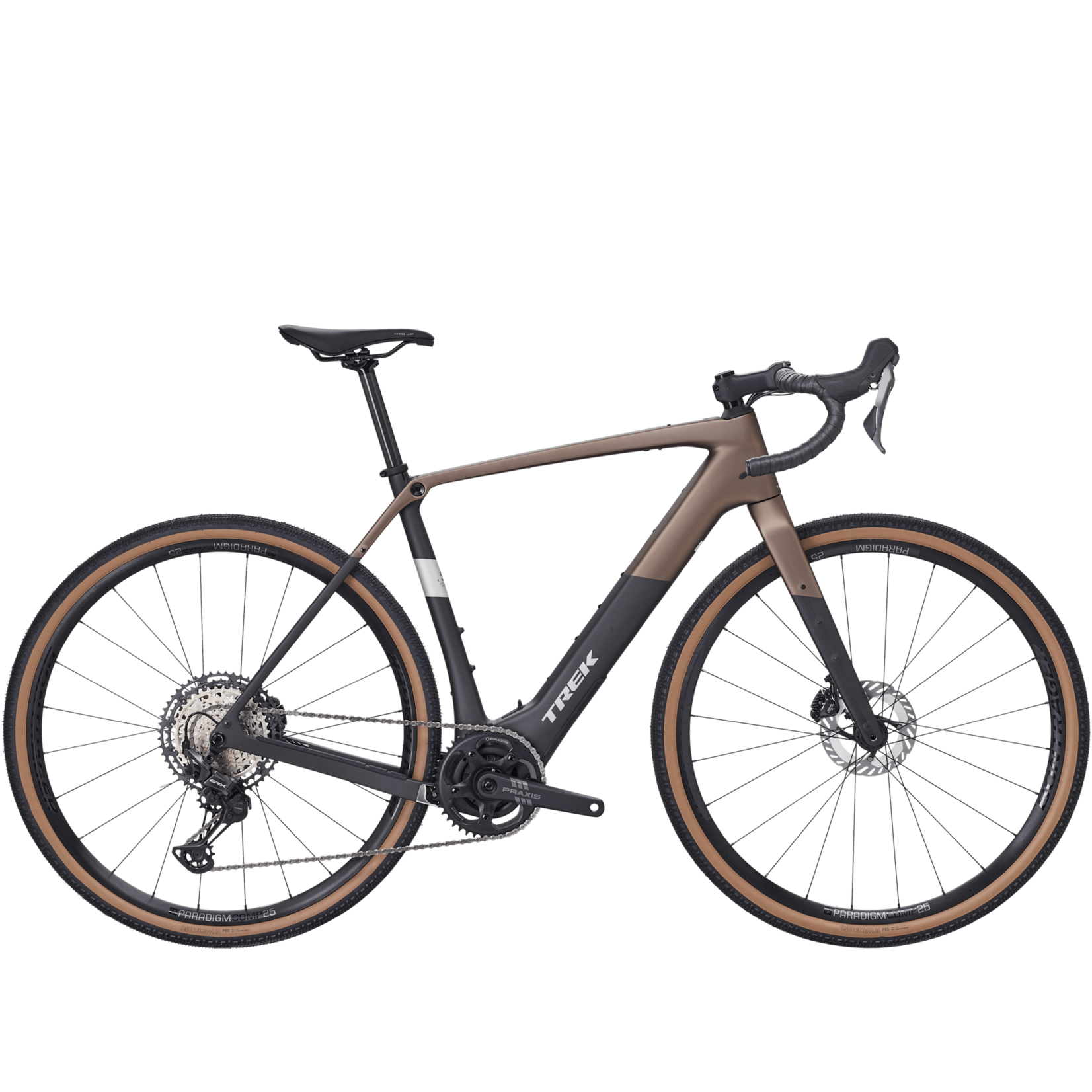

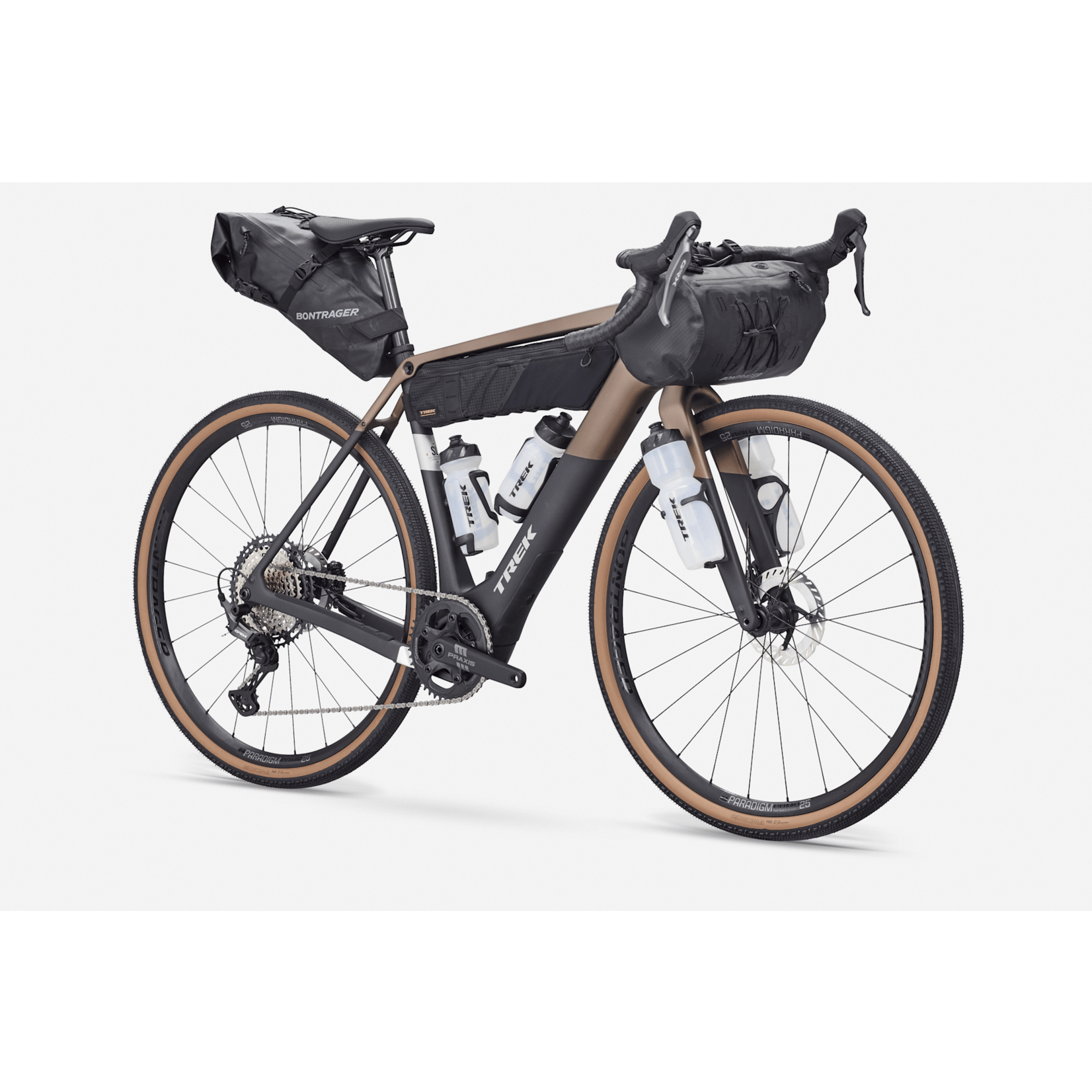

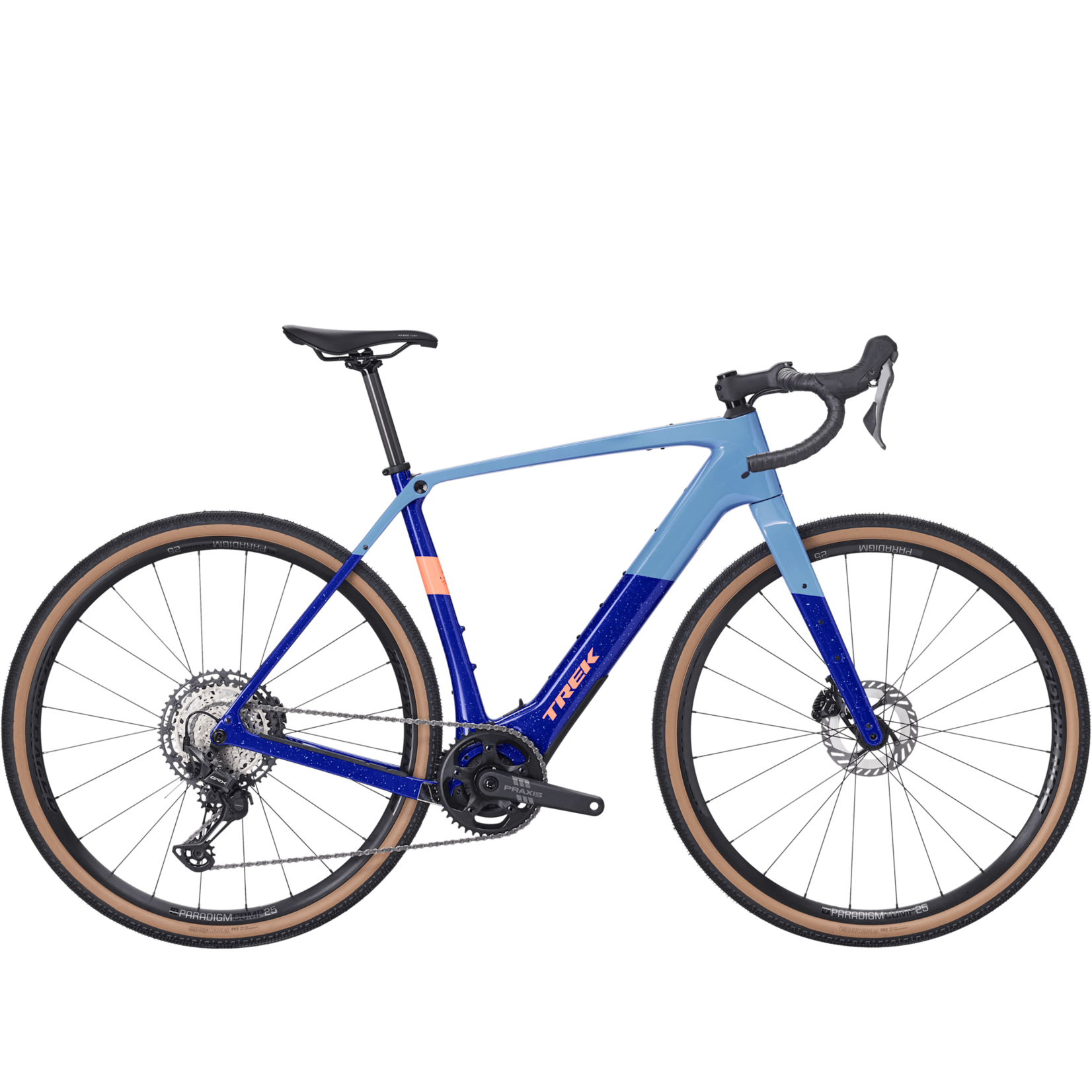

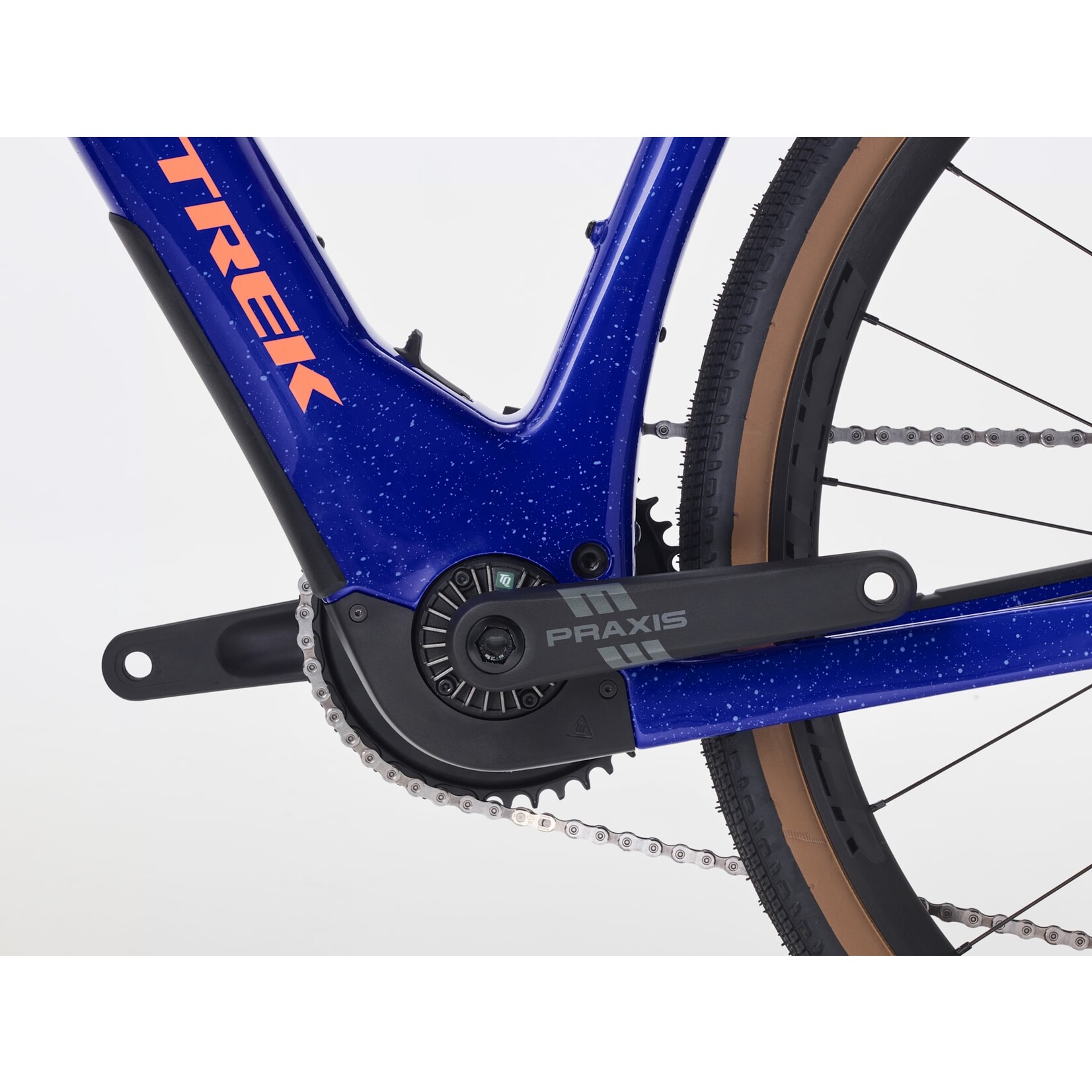

The Checkpoint+ SL 5 is an electric gravel bike built to take you the distance. You get a TQ HPR60 motor with a smooth and quiet boost and a 360 Wh battery that keeps going on your biggest rides. It comes ready to roll with an OCLV Carbon frame, durable alloy wheels, 12-speed Shimano GRX 1x shifting and endurance geometry to keep you comfortable for the long haul.
Specs
*Please note – spec applies to all sizes unless listed separately
- Frame
-
500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat-mount disc, mudguard mounts, UDH, 142x12 mm chamfered thru axle
- Fork
-
- Weight
- ML - 13.81 kg / 30.45 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
- Battery
-
- Charger
-

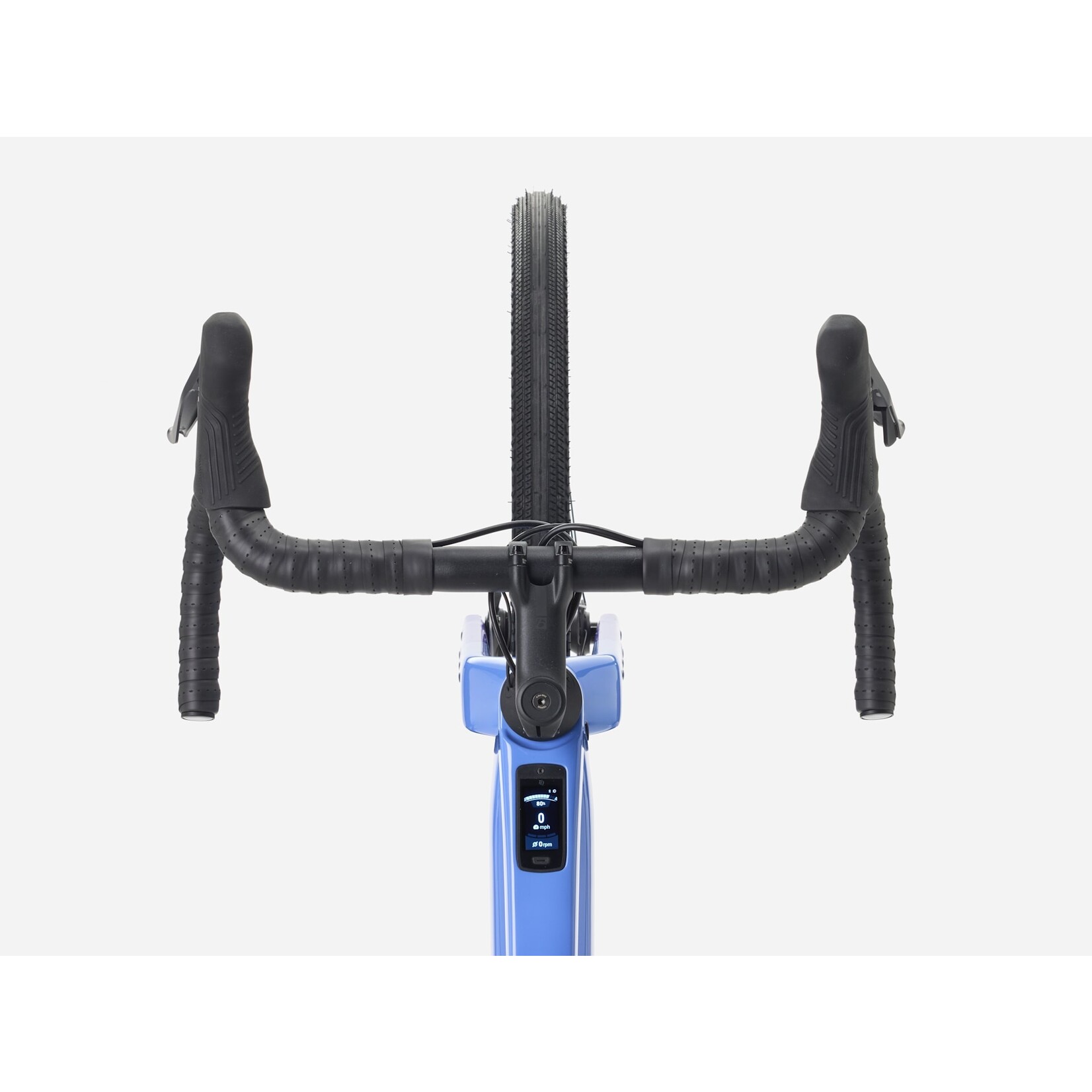

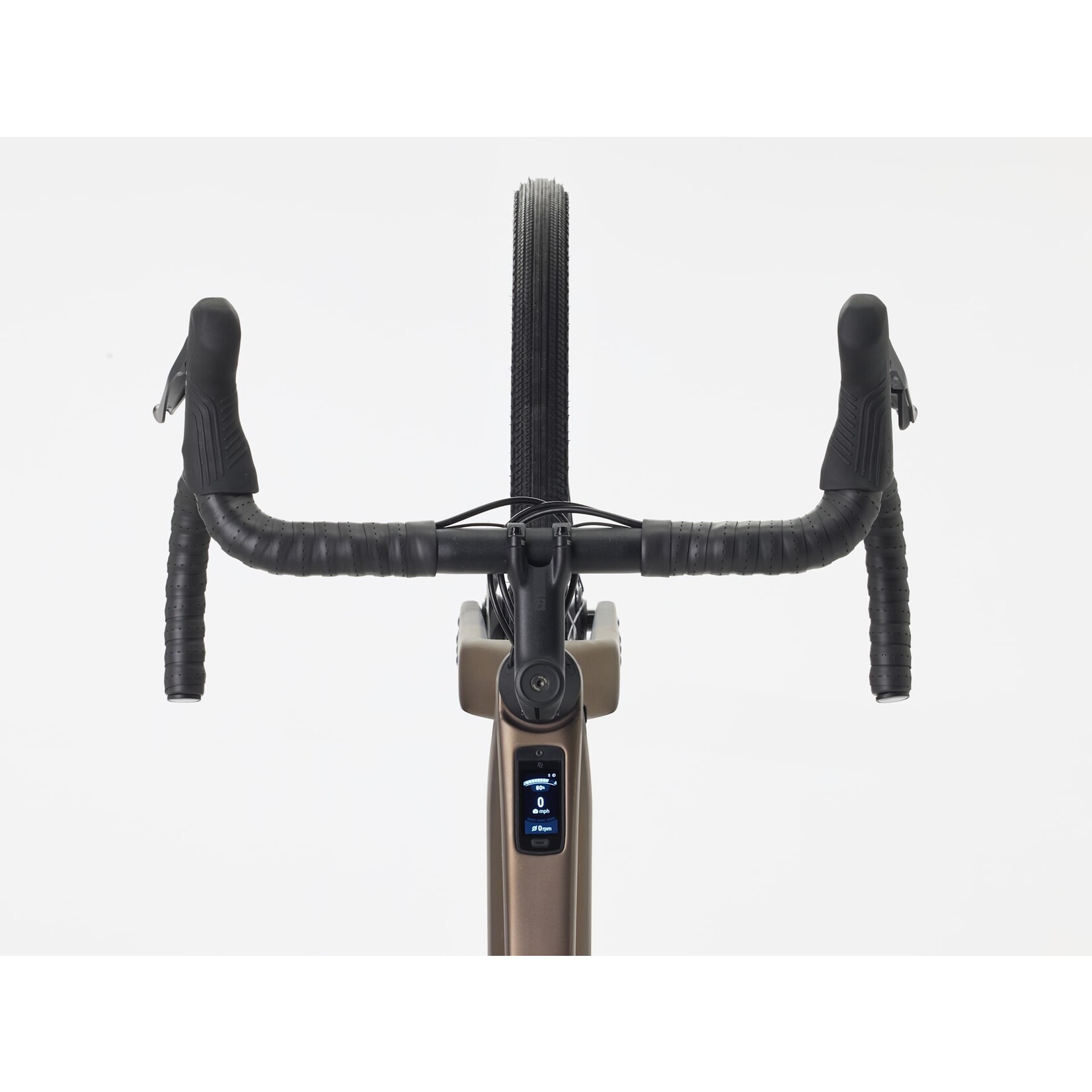

- Computer
-
- Motor
-
TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
- Shifter
-
Shimano GRX RX820, 12-speed
- Rear derailleur
-
Shimano GRX RX822, 51T max cog

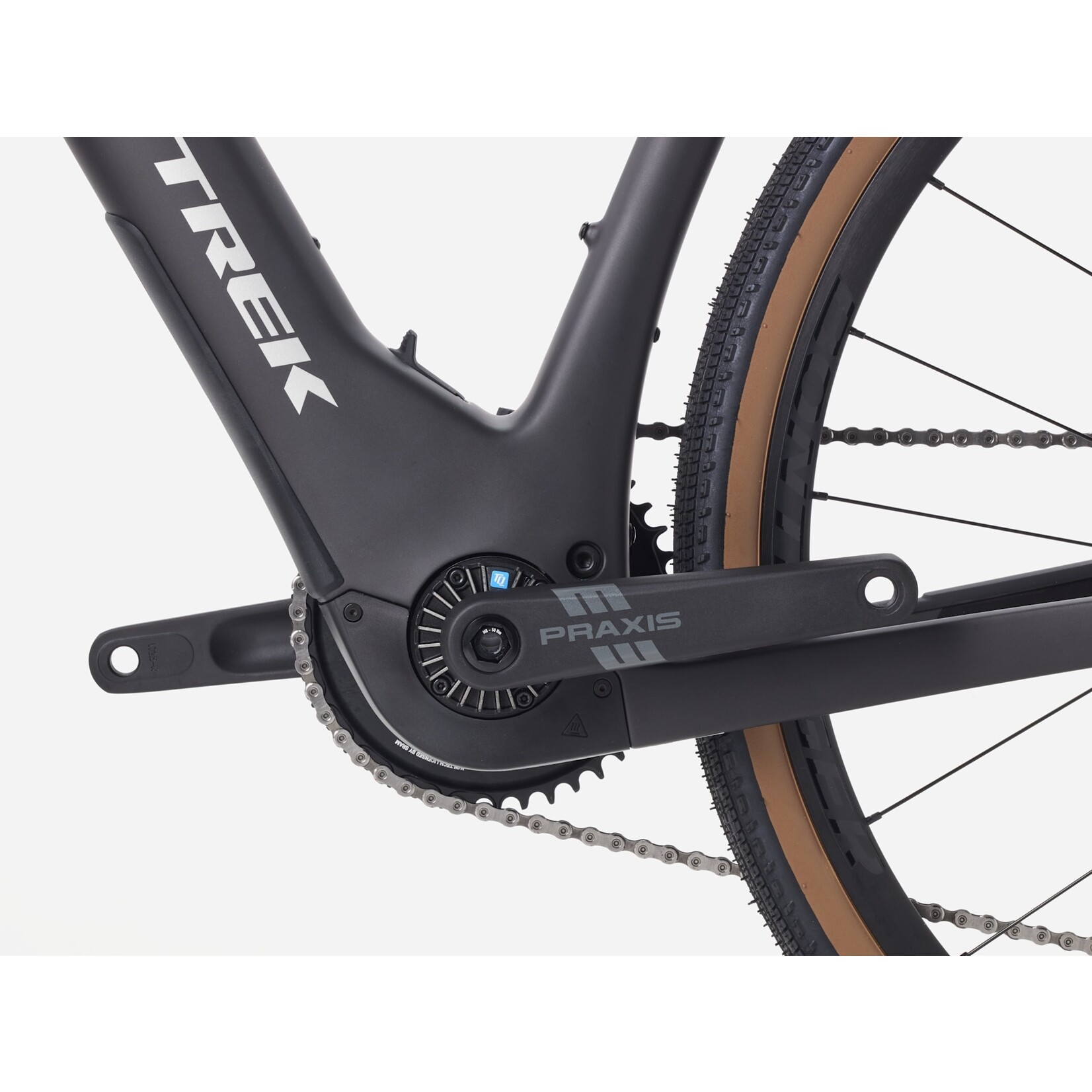

- *Crank
-
Size: XS, S
Praxis Alloy, 165 mm length
Size: M, ML
Praxis Alloy, 170 mm length
Size: L, XL
Praxis Alloy, 172.5 mm length
- Cassette
-
- Chain
-
- Max. chainring size
- 1x: 44T
- Wheel front
-
- Wheel rear
-
Bontrager Paradigm Comp 25, Tubeless-Ready, 25 mm rim width, SRAM XD-R 12-speed freehub, 142x12 thru axle
- Skewer front
-
- Skewer rear
-
- Tyre
-
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
- Tyre part
-
Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
-
- Max tyre size
- 50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details)
- Saddle
-
- Seatpost
-
Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
- *Handlebar
-
- Handlebar tape
-
Bontrager Supertack Perf tape
- *Stem
-
- Brake rotor
-
- Brake lever
-
Shimano GRX RX820, 12-speed
- Rotor size
- Max brake rotor sizes: 180 mm front and rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
