26 Trek Checkpoint+ SL 7

The Checkpoint+ SL 7 AXS is an electric gravel bike built to take you on your most wide-ranging adventures. An OCLV Carbon frame keeps things light, a TQ HPR60 motor provides a smooth and quiet boost, while a 40 mm RockShox Rudy XPLR suspension fork keeps handling confident and relaxed on the roughest roads. SRAM's Force AXS 12-speed drivetrain delivers smooth, wireless shifting, and OCLV Carbon Bontrager Aeolus Elite 35V wheels and a carbon seat post damp vibrations while keeping the weight down.

Specs

*Please note – spec applies to all sizes unless listed separately

Frame: 500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat-mount disc, mudguard mounts, UDH, 142x12 mm chamfered thru axle
Fork: RockShox Rudy XPLR, Solo Air spring, tapered steerer, 45 mm offset, 12x100 mm thru axle, 40 mm travel

Weight: ML - 14.05 kg / 30.98 lbs (with TLR sealant, no tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Battery: TQ 360Wh
Charger: TQ 4A charger
Controller: TQ color LED display with Bluetooth & ANT+ connectivity

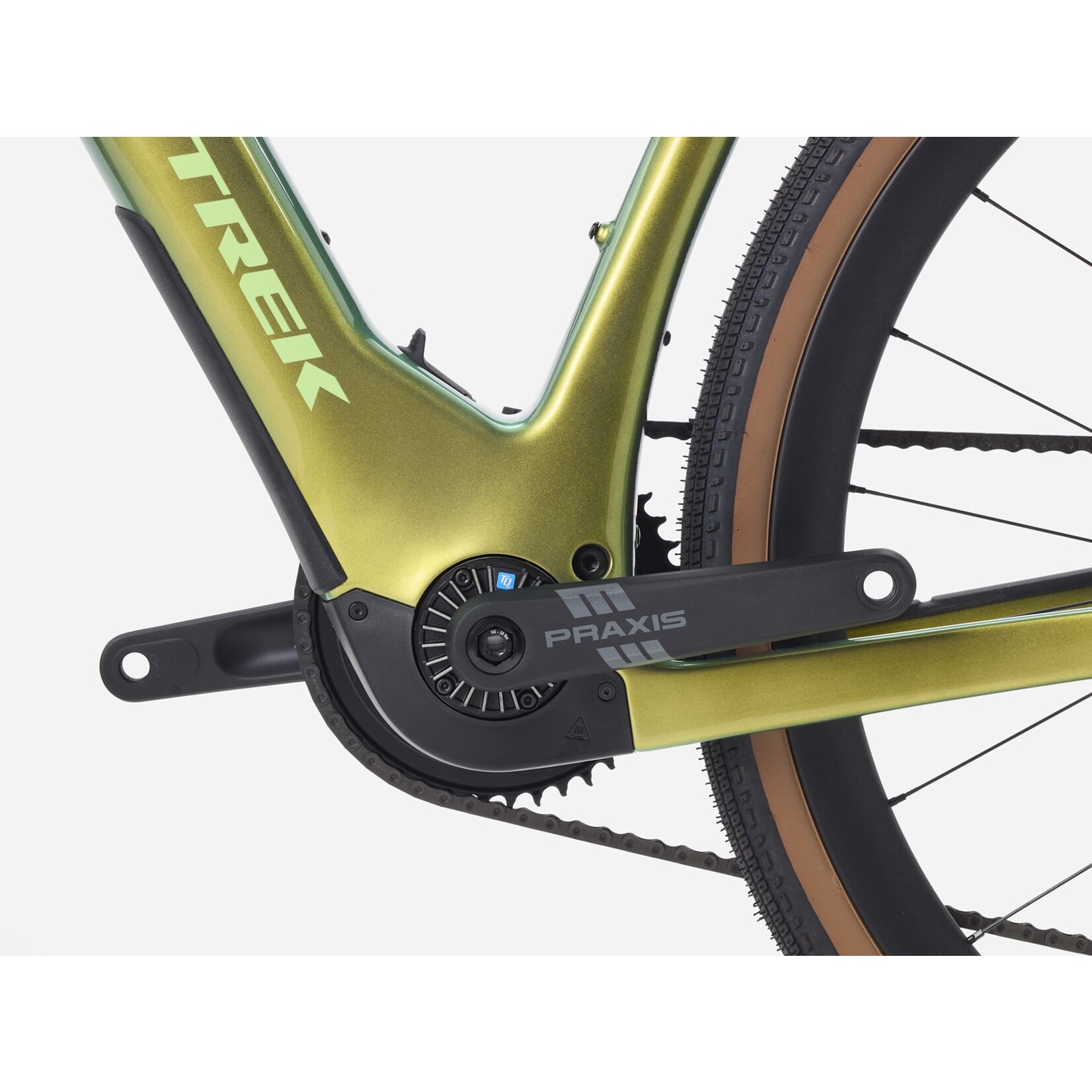

Motor: TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power

Shifter: SRAM Force AXS E1
Rear derailleur: SRAM X0 Eagle AXS, T-Type
*Crank: Size: S

Praxis Alloy, 165 mm length

Size: M, ML

Praxis Alloy, 170 mm length

Size: L, XL

Praxis Alloy, 172.5 mm length
Cassette: SRAM Eagle XS-1295, T-Type, 10-52, 12-speed
Chain: SRAM X0 Eagle, T-Type, 12-speed
Max. chainring size: 1x: 44T

Wheel front: Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth, 100x12 mm thru axle
Wheel rear: Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth, SRAM XD-R driver, 142x12 mm thru axle
Skewer rear: Bontrager Switch chamfered thru axle, removable lever
Tyre: Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
Tyre part: Bontrager TLR sealant, 180 ml/6 oz
Rim strip: Bontrager TLR
Max tyre size: 50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details)

Saddle: Verse Short Elite, hollow magnesium rails, 145 mm width
Seatpost: Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
*Handlebar: Size: S
Bontrager Pro Gravel, 40 cm width

Size: M, ML
Bontrager Pro Gravel, 42 cm width

Size: L
Bontrager Pro Gravel, 44 cm width

Size: XL
Bontrager Pro Gravel, 46 cm width
Handlebar tape: Bontrager Supertack Perf tape
*Stem: Size: S, M

Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80mm length

Size: ML, L

Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90mm length

Size: XL

Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100mm length
Brake rotor: SRAM Paceline X, rounded, CentreLock, 160 mm
Rotor size: Max brake rotor sizes: 180 mm front and rear

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
