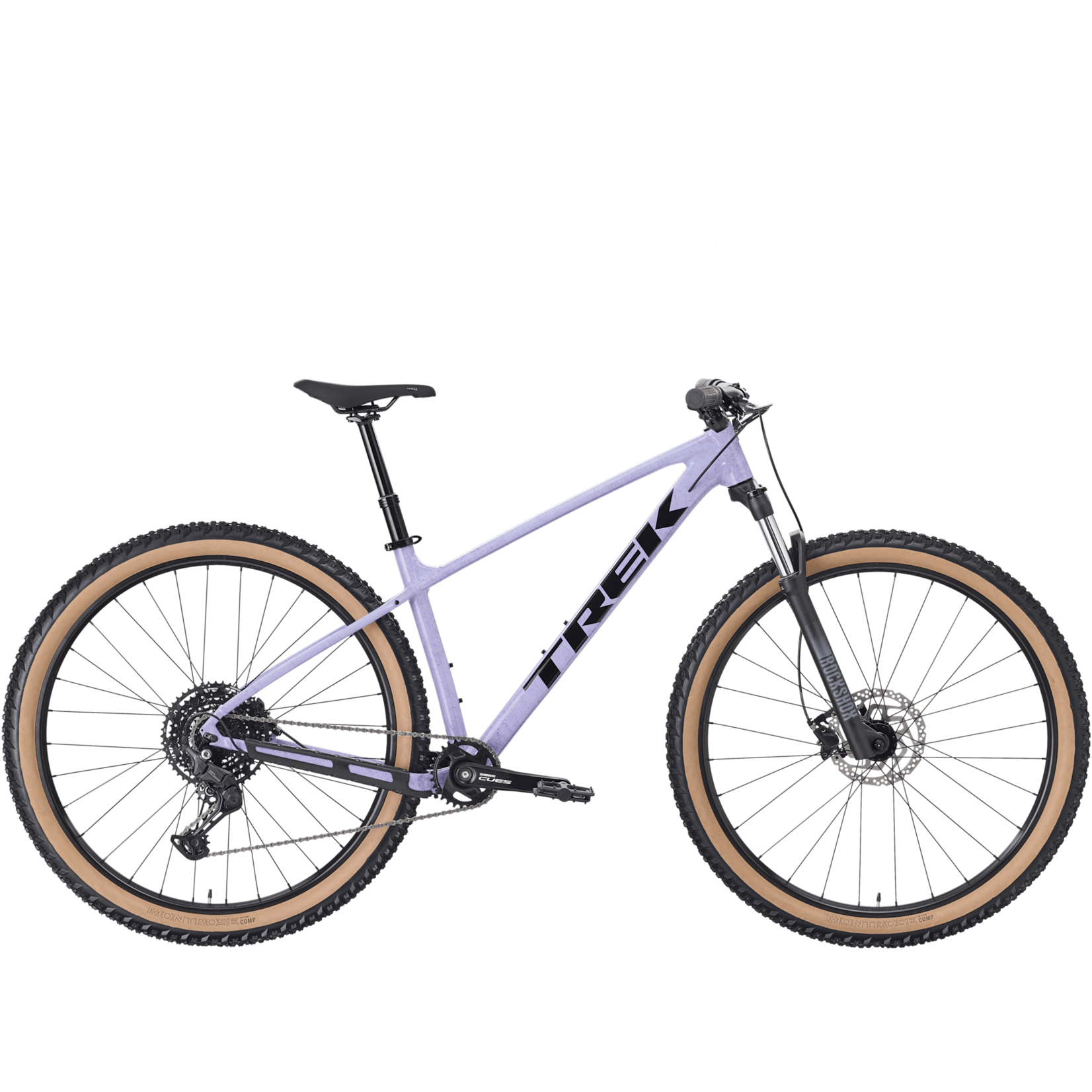

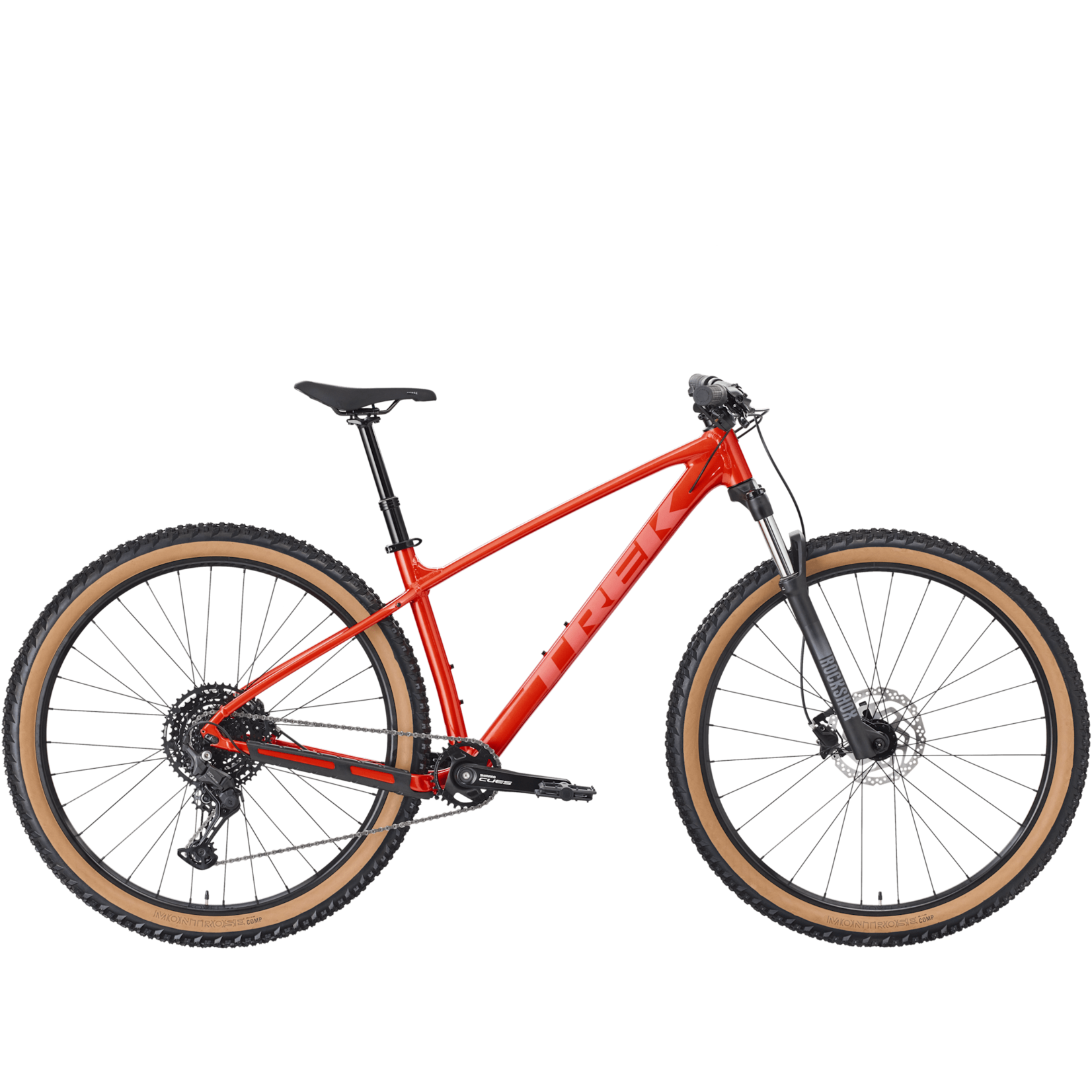

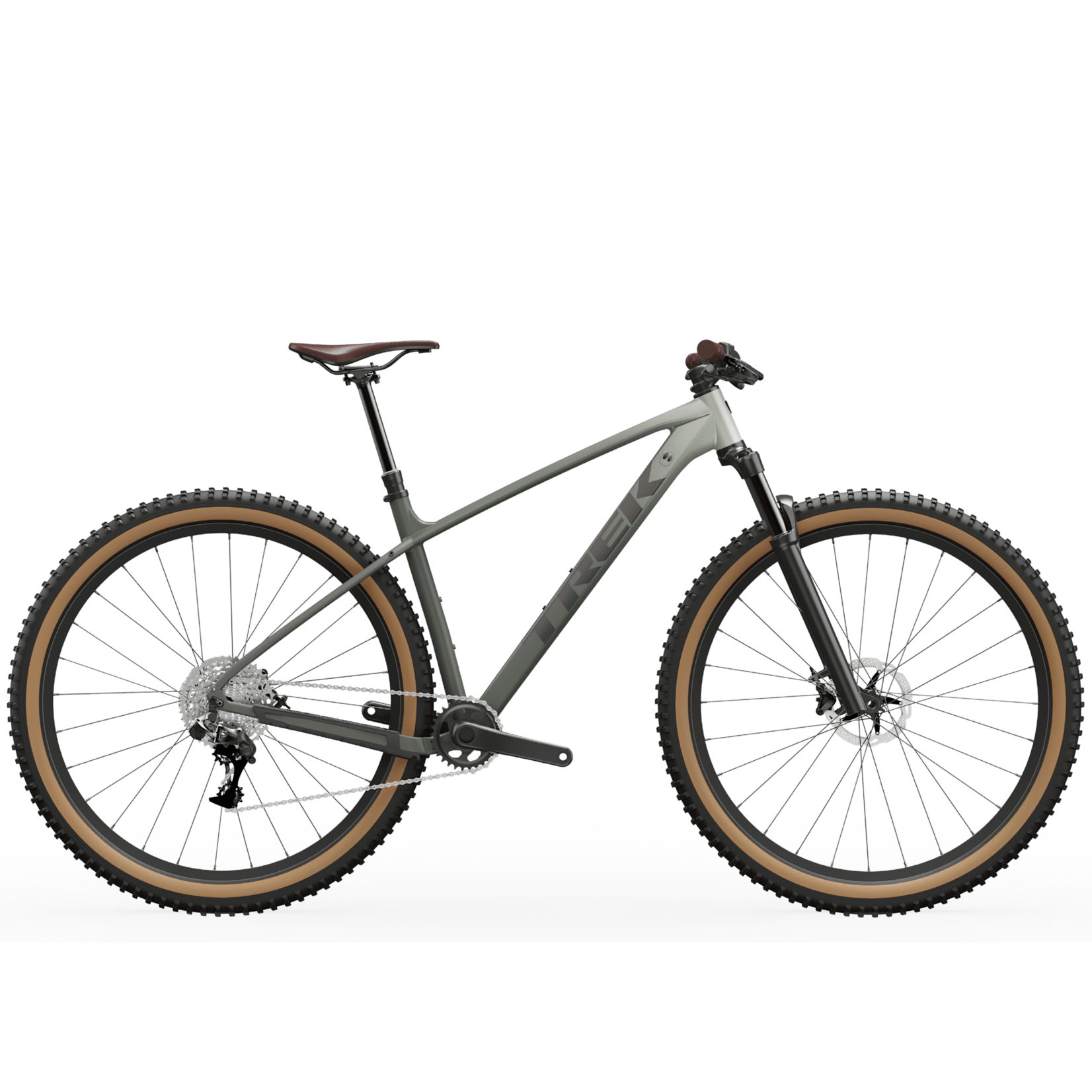

26 Trek Marlin 6 Gen 3

The Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated slacker frame geometry makes it easier to control on descents while the suspension fork takes the edge off bumpy trails. Integrated rack and kickstand mounts make it easy to add accessories to this versatile steed.

You want a trail bike that's dialled for building confidence on the dirt, and versatile enough for commuting to work or school.

A lightweight aluminium frame with modern trail riding geometry and internal routing that keeps cables protected and keeps the bike looking sleek. A 100 mm RockShox Judy front suspension fork that cushions rocks, roots and bumps in the trail, 10-speed fuss-free Shimano CUES shifting and the serious stopping power of hydraulic disc brakes.

The Marlin 6 is an ideal trail bike for riders who want to progress on the trail, and want a bike that can keep them rolling off of the trail too.

You get real-deal modern mountain bike geometry that keeps handling confident when you're on singletrack, but is versatile enough for use on roads and bike trails too
Mudguard mounts make it easy to accessorise, so your mountain bike can double as a rugged commuter
The new Thru-Skew system is safer, simpler and stronger, plus it makes removing the rear wheel for flat fixes a piece of cake
Internal routing makes it easy to add a dropper post that lets you lower your saddle on the fly for more confident descending
Marlin models in sizes XXS and XS have a curved top tube and lower standover height that makes it easier for smaller riders to mount and dismount

Specs

*Please note – spec applies to all sizes unless listed separately

Frameset

*Frame	Size: XS Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
*Frame	Size: S , M , ML , L , XL Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
*Fork	Size: XS , S RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
*Fork	Size: M , ML , L , XL RockShox Judy, coil spring, preload, TurnKey lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel

Wheels

Hub front	Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew
Hub rear	Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Skewer rear	173x5 mm QR
*Rim	Size: XS , S , M , ML , L , XL Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve
*Rim	Size: M , ML , L , XL Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve
*Tyre	Size: XS , S Maxxis IKON, tubeless ready, EXO casing, folding bead, 60 tpi, 27.5x2.35''
*Tyre	Size: M , ML , L , XL Maxxis Rekon Race, tubeless ready, EXO casing, folding bead, 60 tpi, 29x2.35"
Rim strip	Bontrager TLR

Drivetrain

Shifter	Shimano U6000, 10-speed
Rear derailleur	Shimano CUES U6000 GS
*Crank	Size: XS , S , M , ML Shimano U4000, 30T chainring, 170 mm length
*Crank	Size: L , XL Shimano U4000, 30T chainring, 175 mm length
Bottom bracket	Shimano, 73 mm, threaded cartridge, 122.5 mm spindle
Cassette	Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
Chain	Shimano LG500
Pedal	VP-536 nylon platform

Components

Saddle	Bontrager Verse Short, stainless steel rails
*Seatpost	Size: XS , S TranzX JD-YSI34, 100 mm travel, internal routing, 34.9 mm, 350 mm length
	Size: M TranzX JD-YSI34, 125 mm travel, internal routing, 34.9 mm, 405 mm length
	Size: ML , L , XL TranzX JD-YSI34, 150 mm travel, internal routing, 34.9 mm, 456 mm length
*Handlebar	Size: XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
	Size: S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
	Size: M , ML , L , XL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips	Trek Line Comp, nylon lock-on
*Stem	Size: XS , S Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
	Size: M , ML , L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
	Size: XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
Head set	Semi-integrated, 1-1/8"
Brake	Shimano MT200 hydraulic disc
*Brake rotor	Size: XS , S , M , ML , L , XL Shimano RT26, 6-bolt, 160 mm
*Brake rotor	Size: M , ML , L , XL Shimano RT26, 6-bolt, 180 mm
Brake Set	Shimano MT200 hydraulic disc

Weight

Weight	M - 15.00 kg / 33.07 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

Please note: spec in the product illustration may not be accurate
