More Juice, No Excuse
The Moterra packs massive power, range, and silky suspension, handling rugged terrain like a luxury off-roader. Built to go further—faster.
Model Description
Moterra 1 balances brute strength with trail-savvy finesse. Featuring a new, lightweight, full carbon frame and 160/150mm of travel, it’s built for those who demand big power, silky smooth delivery, and absolute control. A Bosch CX motor with an 800Wh battery gives you the juice for even the biggest missions. A Kiox 500 display integrated into the stem keeps you connected, while the top-end Fox 38 Factory fork and Float X Factory shock soak up every bump. SRAM XO/GX AXS wireless shifting, Magura MT7 brakes, and robust DT Swiss H1900 wheels bring top-tier precision, making it the perfect blend of speed, style, and capability.
What it's for
Endless spins, uphill wins, and permanent grins on all kinds of trails, from the mild to the wild
Highlights
- A lightweight carbon fiber frame - Proportional Response size-specific suspension, tuned for specifically for the air shock and 29” wheels
- Bosch's most powerful system – Performance CX motor and 800Wh battery. Incredibly natural power delivery and huge range
- Top of the line Fox Factory suspension – 160mm Float Factory 38 fork and Float X Factory piggyback shock
- Rugged DT Swiss H 1900 Spline EMTB Wheelset – Built to survive - 30mm inner width, 370 hubs with durable Ratchet LN internals
- Wireless electronic shifting from a blended SRAM Eagle XO/GX AXS 12-speed group
- Powerful, controllable stopping from Magura’s MT7 4-piston stoppers with 220/203mm rotors
Rider-first Refinement.
For mountain bikers who want it all—power, precision, and performance—the Moterra’s full-carbon frame delivers. With 150mm of rear travel, 160mm up front and 29” wheels, it stays sharp on descents, solid on climbs, and agile in the tight stuff. Less weight, and handling so dialed you’ll forget it’s packing extra juice.
Power. Pedal. Repeat.
With up to 100Nm of torque and an 800Wh battery, the Bosch Performance Line CX system delivers the perfect blend of strength and stamina. Instant power on the climbs, effortless speed on the flats, and efficiency that keeps you rolling from sunrise to sunset. No lag, no restraint—just pure, pedal-assisted exhilaration.
Built to Fit, Born To Rip

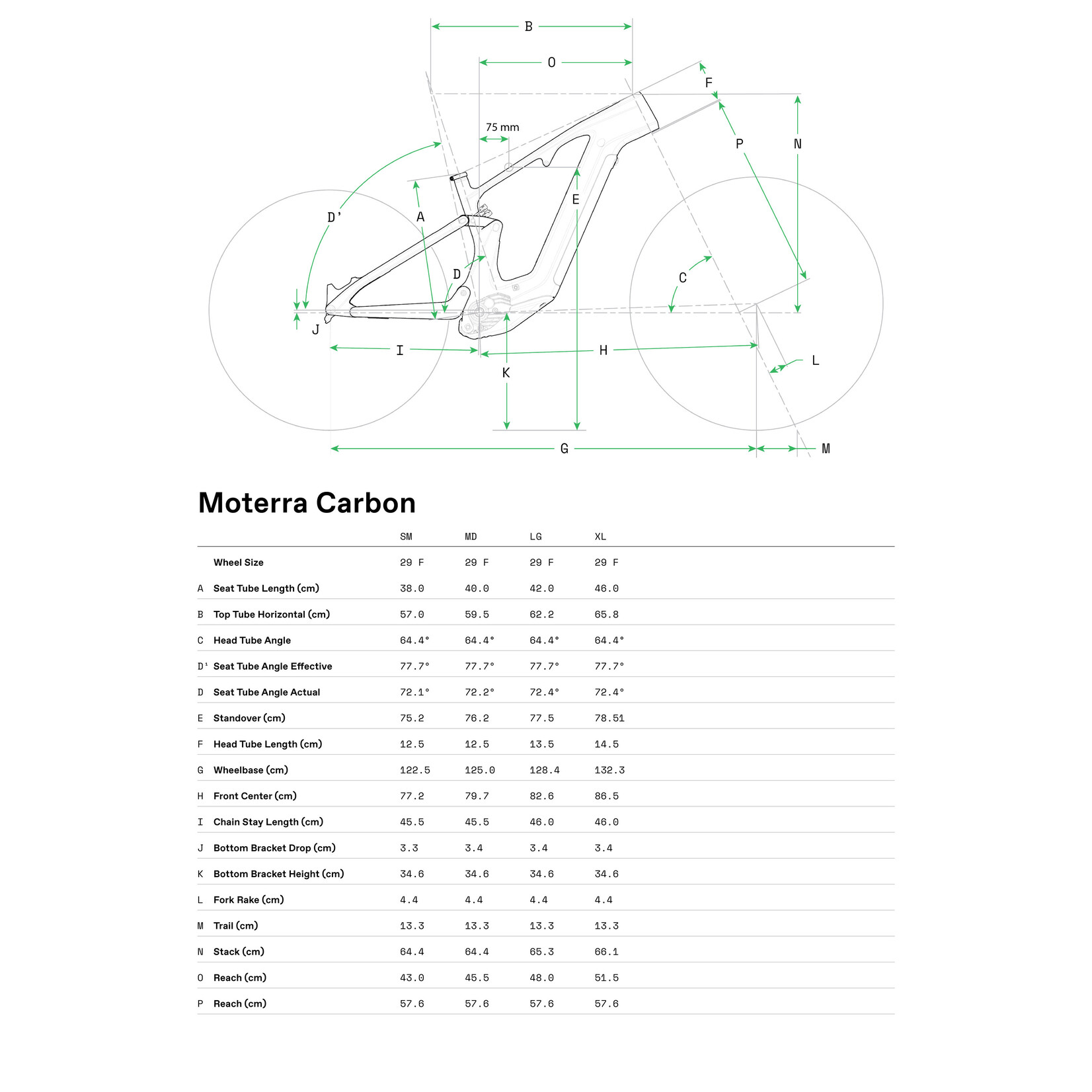

No cookie-cutter sizing here. The Moterra’s Proportional Response™ design means every frame gets custom geometry, balancing weight, traction, and control. From the first pedal stroke to last light, it’s tuned to move with you—stable, agile, and effortlessly smooth.
Specs
Frameset
Frame
Moterra Carbon, 29" wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible
Fork
Fox Float Factory 38, 160mm, GripX2 Damper, Kashima coating, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
Headset
Acros ICR, 1.5" to 1.8", sealed bearings
Rear Shock
Fox Float X Factory, Kashima coating, 2 pos adj, EVOL LV, 230x62.5mm
E-System

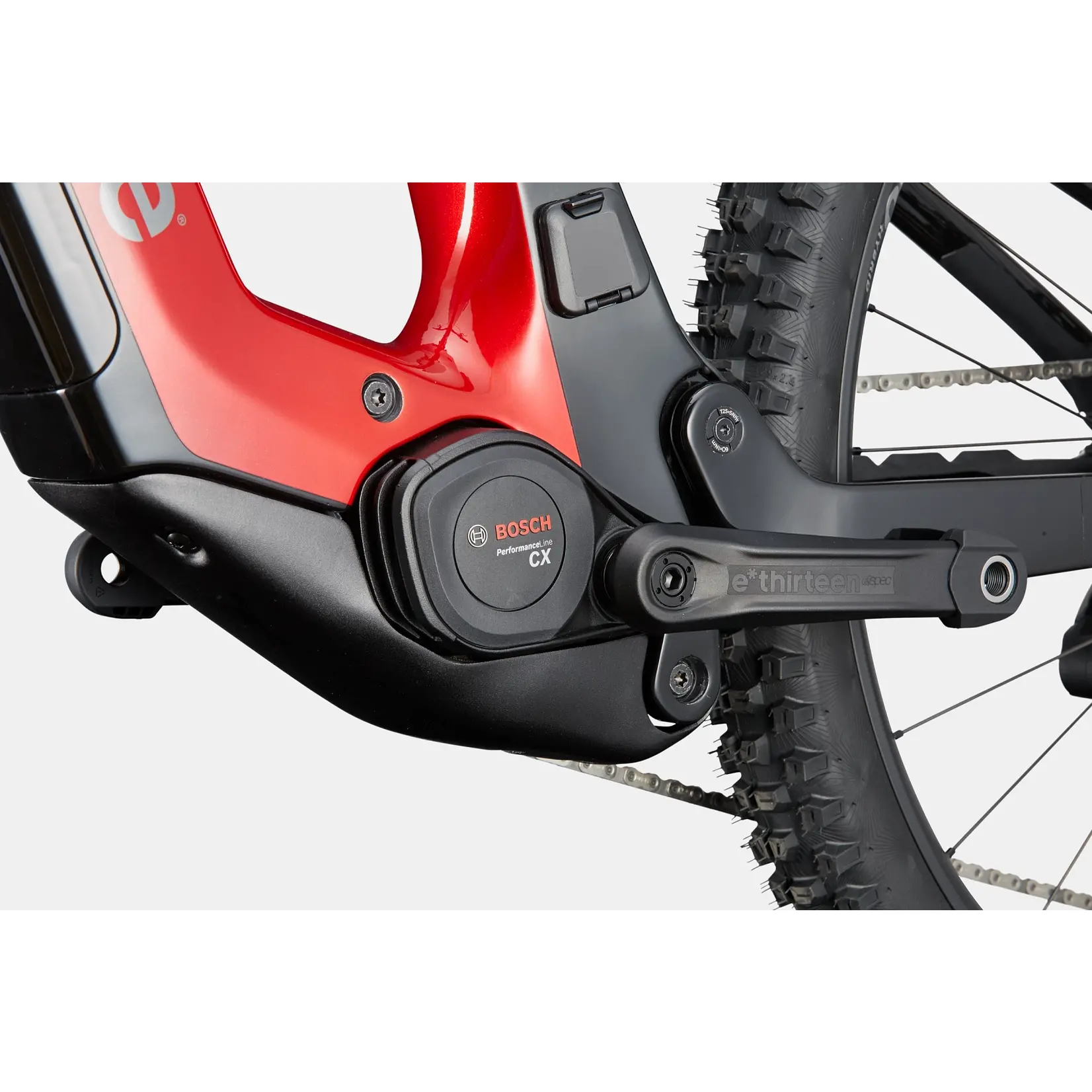

Drive Unit
Bosch Performance Line CX
Battery
Bosch PowerTube, 800Wh

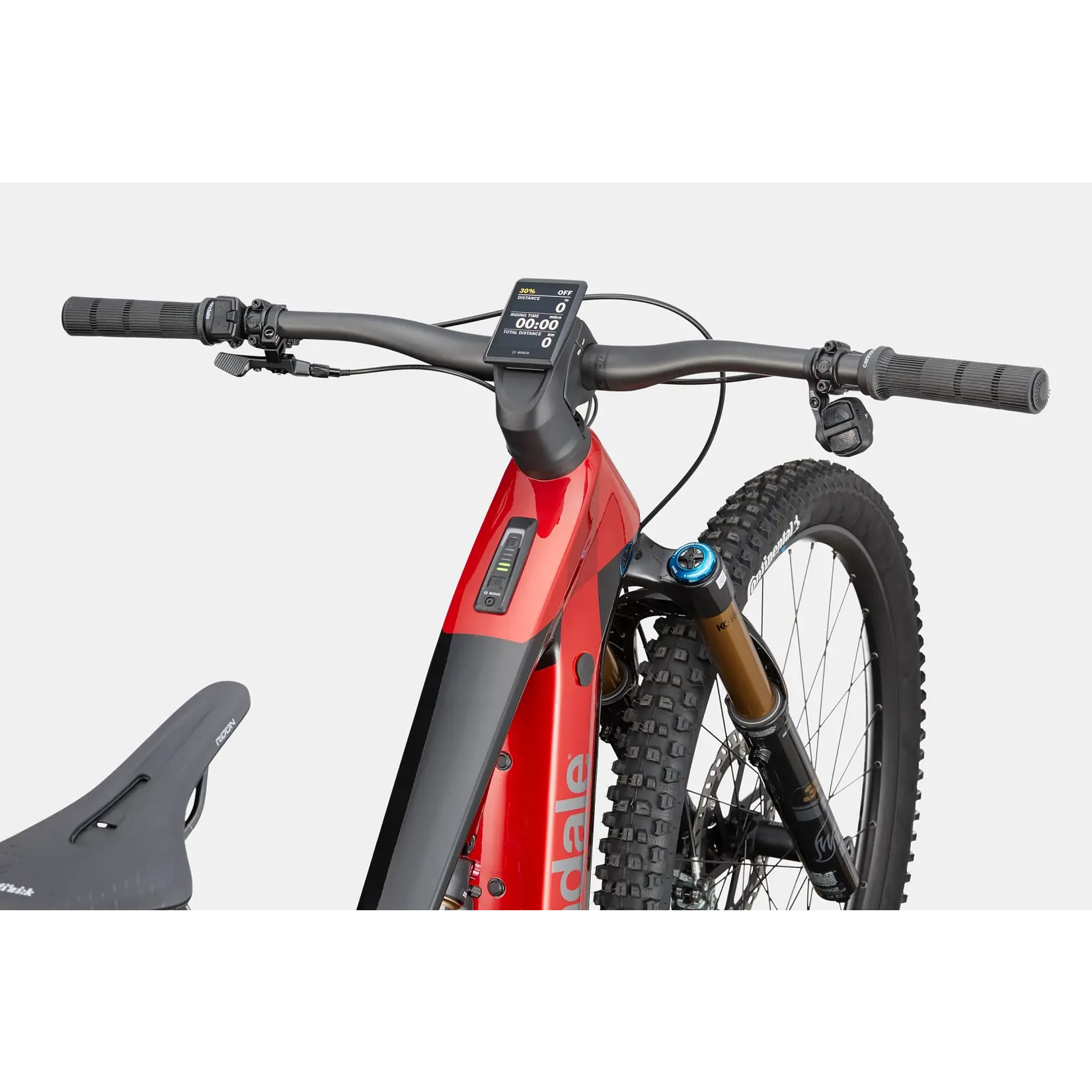

Display
Top Tube System Controller w/ Bosch Kiox 500 & Mini Remote
Drivetrain

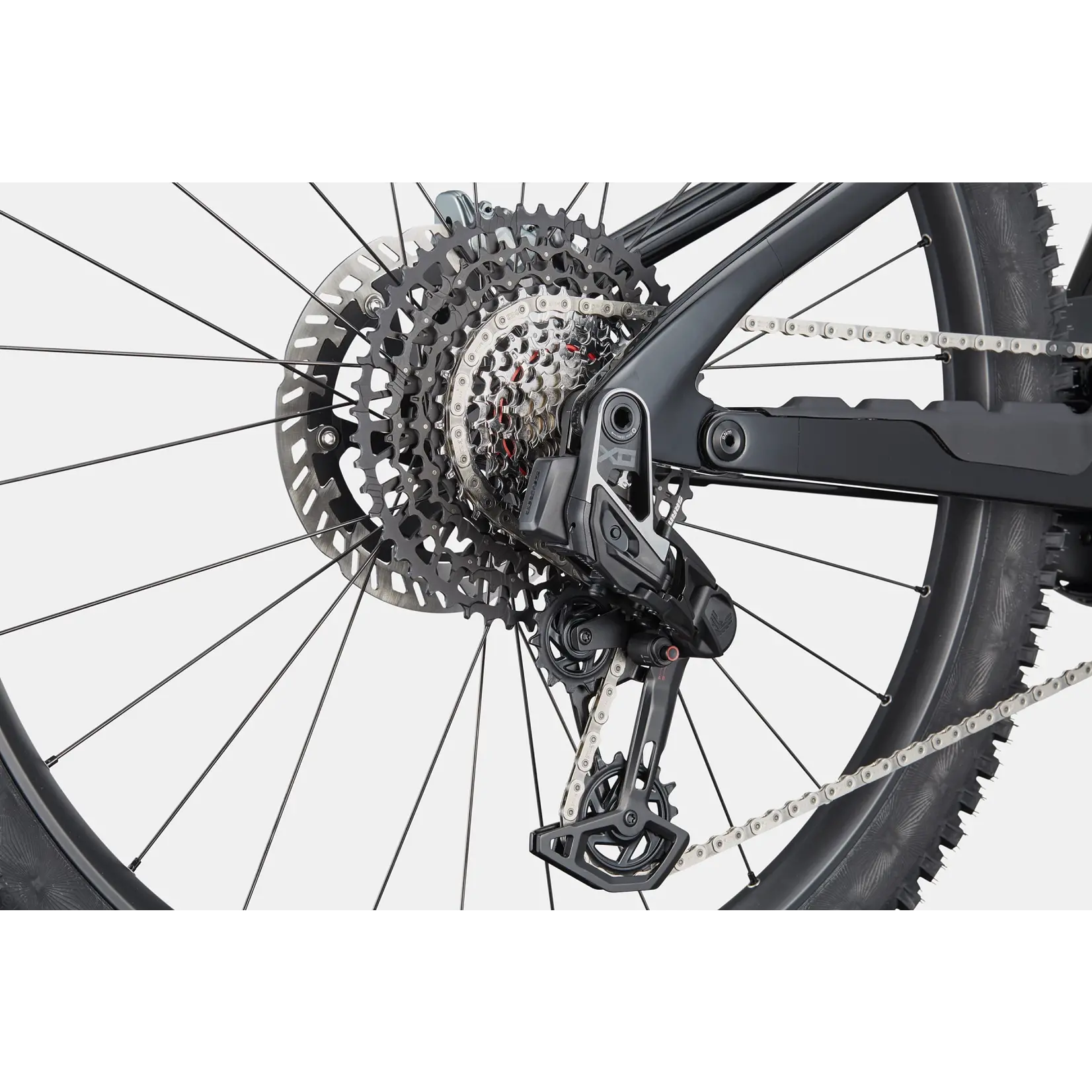

Rear Derailleur
SRAM XO Eagle AXS, T-Type
Shifters
SRAM Eagle AXS T-Type Pod Controller
Chain
SRAM GX T-Type, 12-speed
Crank
e*thirteen e*spec Helix Core, 55mm chainline, 160mm, 34T
Rear Cogs
SRAM GX Eagle T-Type, 10-52, 12-speed
Brakes
Brakes
Magura MT7 4-piston hydraulic disc, 220/203mm MDR-P rotors
Brake Levers
Magura MT7 hydraulic disc
Wheels
Rims
DT Swiss H 1900 Spline, 30mm inner width, TC (tubeless ready)
Spokes
DT Swiss Competition, straight pull
Hubs
(F) DT Swiss 370, 15x110mm thru-axle / (R) DT Swiss 370 Ratchet System 18, 12x148mm thru-axle, 6-bolt
Tires
(F) Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable
Front Tire
Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable
Rear Tire
Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable
Components
Handlebar
HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm
Stem
Cannondale Trail HeadsUp w/ integrated display mount, 3D Forged 6061 Alloy, 1-1/8", 45mm, 0°
Grips
Cannondale TaperRidge
Saddle
Fizik Terra Aidon X5, 145mm, Wingflex, S-Alloy Mobius rail
Seatpost
Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
Extra
Extra 1
Tubeless Valves, Bosch PowerMore range extender compatible
Please note that, based on component availability and other factors, specifications are subject to change without notice.
