For mountain bikers who want it all—power, precision, and performance—the Moterra’s full-carbon frame delivers. With 150mm of rear travel, 160mm up front and 29” wheels, it stays sharp on descents, solid on climbs, and agile in the tight stuff. Less weight, and handling so dialed you’ll forget it’s packing extra juice.
Power. Pedal. Repeat.
With up to 100Nm of torque and an 800Wh battery, the Bosch Performance Line CX system delivers the perfect blend of strength and stamina. Instant power on the climbs, effortless speed on the flats, and efficiency that keeps you rolling from sunrise to sunset. No lag, no restraint—just pure, pedal-assisted exhilaration.
Built to Fit, Born To Rip
No cookie-cutter sizing here. The Moterra’s Proportional Response™ design means every frame gets custom geometry, balancing weight, traction, and control. From the first pedal stroke to last light, it’s tuned to move with you—stable, agile, and effortlessly smooth.
Specs
Frameset
Frame
Moterra Carbon, 29" wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible
Fork
RockShox ZEB Select, 160mm, Charger RC, DebonAir+, 15x110mm Maxle, 44mm offset
Headset
Acros ICR, 1.5" to 1.8", sealed bearings
Rear Shock
RockShox Deluxe Select+, DebonAir+, 2-Pos mode adjust, adjustable rebound, 230x62.5mm
E-System
Drive Unit
Bosch Performance Line CX
Battery
Bosch PowerTube, 800Wh

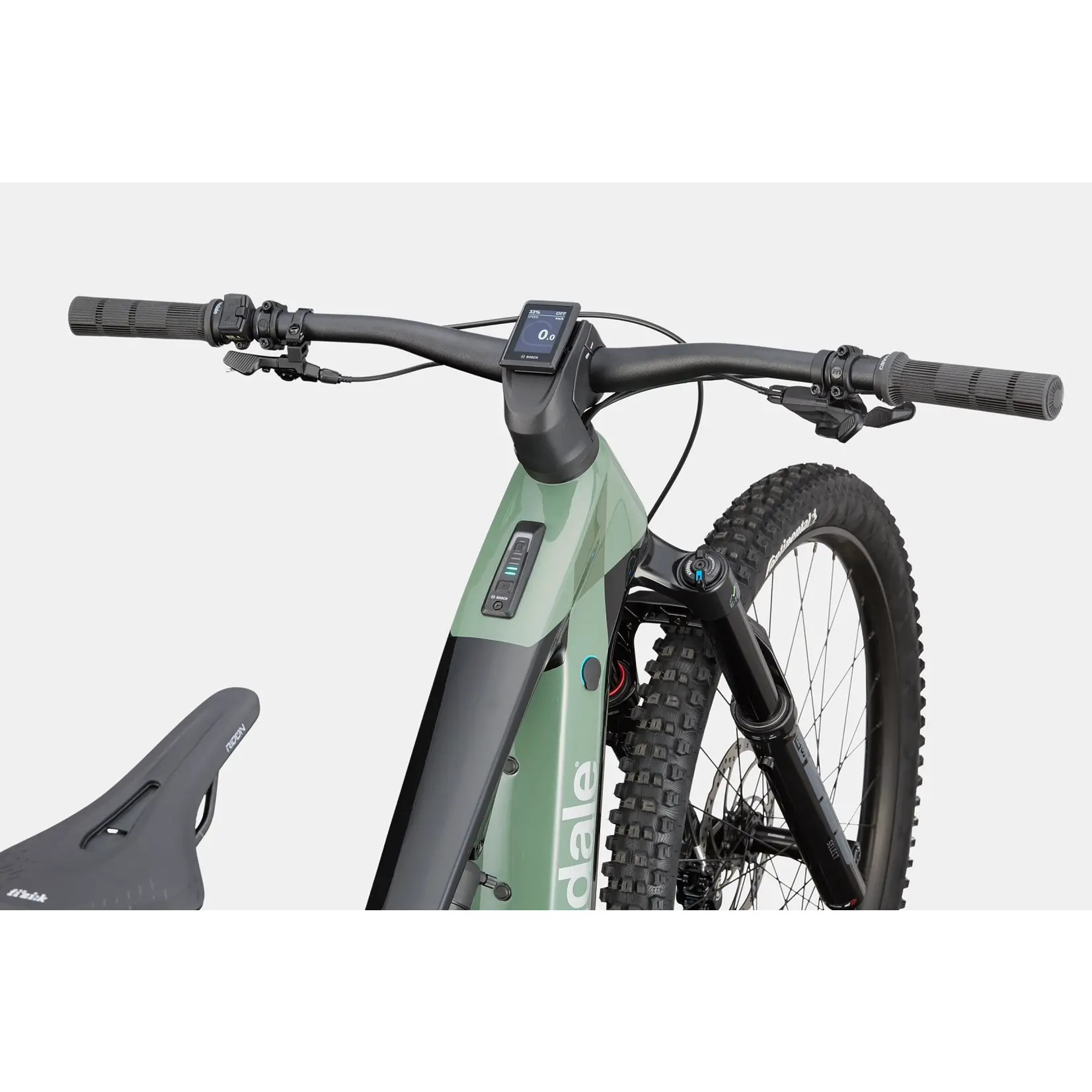

Display
Top Tube System Controller w/ Bosch Kiox 300 & Mini Remote
Drivetrain

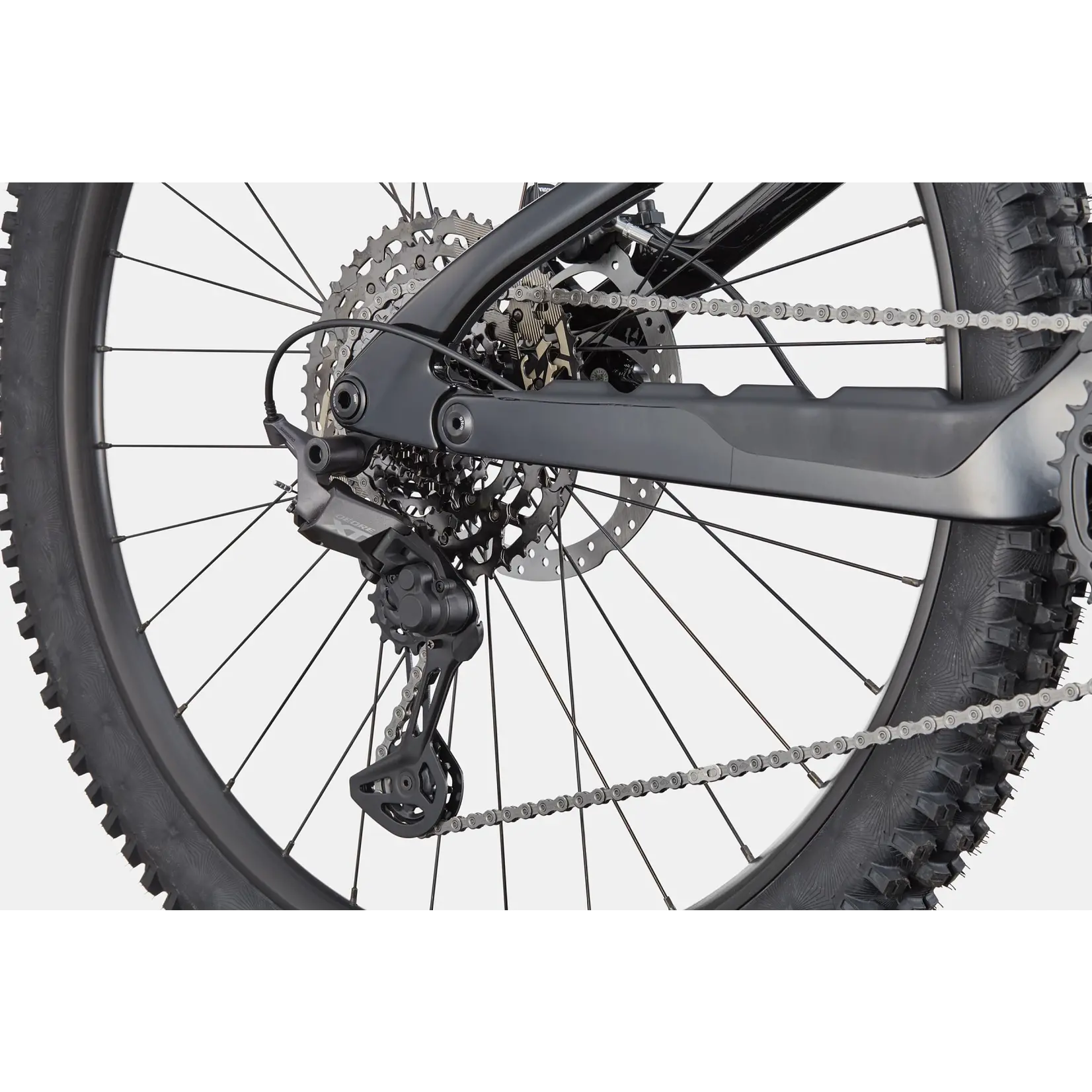

Rear Derailleur
Shimano XT M8130, LinkGlide
Shifters
Shimano CUES U8000, 11-speed, LinkGlide
Chain
Shimano LG500, LinkGlide, 11-speed
Crank
FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
Rear Cogs
Shimano CUES LG700, LinkGlide, 11-50, 11-speed
Brakes
Brakes
Magura MT5 4-piston hydraulic disc, 203mm Storm rotors
Brake Levers
Magura MT5 hydraulic disc
Wheels
Rims
WTB ST i30 Tough TCS, 30mm inner width, 32h, tubeless compatible
Spokes
DT Swiss Champion 2.0
Hubs
(F) Shimano TC500, 15x110mm thru-axle / (R) Shimano TC500, 12x148mm thru-axle, centerlock
Tires
(F) Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable
Front Tire
Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable
Rear Tire
Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable
Components
Handlebar
Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
Stem
Cannondale Trail HeadsUp w/ integrated display mount, 3D Forged 6061 Alloy, 1-1/8", 45mm, 0°
Grips
Cannondale TaperRidge
Saddle
Fizik Terra Aidon X5, 145mm, Wingflex, S-Alloy Mobius rail
Seatpost
Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
Extra
Extra 1
Bosch PowerMore range extender compatible
Please note that, based on component availability and other factors, specifications are subject to change without notice.
