Point and Play
The Moterra LT transforms every trail into a never ending playround. Power up climbs, flatten bumps, and tear through descents like a moshpit in motion.
Model Description
The Moterra LT is where agility meets audacity. With a new full carbon frame, 170mm of front and 165mm of rear travel, and a mullet wheel setup, this bike lunges up brutal climbs and down nasty descents with unshakable confidence. The Bosch CX motor and 800Wh battery deliver lasting power, while the Fox 38 Performance fork and DHX coil shock provide a plush, controlled ride. SRAM Eagle 90/70 shifting and TRP EVO Pro brakes ensure you stay in control, no matter how wild things get.
What it's for
Getting after it on the wilder side. Steep climbs, fast descents, big hits, and endless laps
Highlights
- A light yet burly carbon fiber frame - Proportional Response size-specific kinematics, tuned for specifically for the coil shock and mullet wheels
- Bosch's most powerful system – Performance CX motor and 800Wh battery. Incredibly natural power delivery and huge range
- Hard-hitting Fox Suspension – 170mm Float Performance 38 fork and supple DHX Performance coil piggyback shock
- Rugged DT Swiss H 1900 Spline EMTB Wheelset – Built to survive - 30mm inner width, 370 hubs with durable Ratchet LN internals
- Tough, reliable SRAM Eagle 90/70 12-speed shifting
- Powerful braking from TRP EVO Pro 4-piston stoppers with 220/203mm rotors
Power You Feel, Not Hear

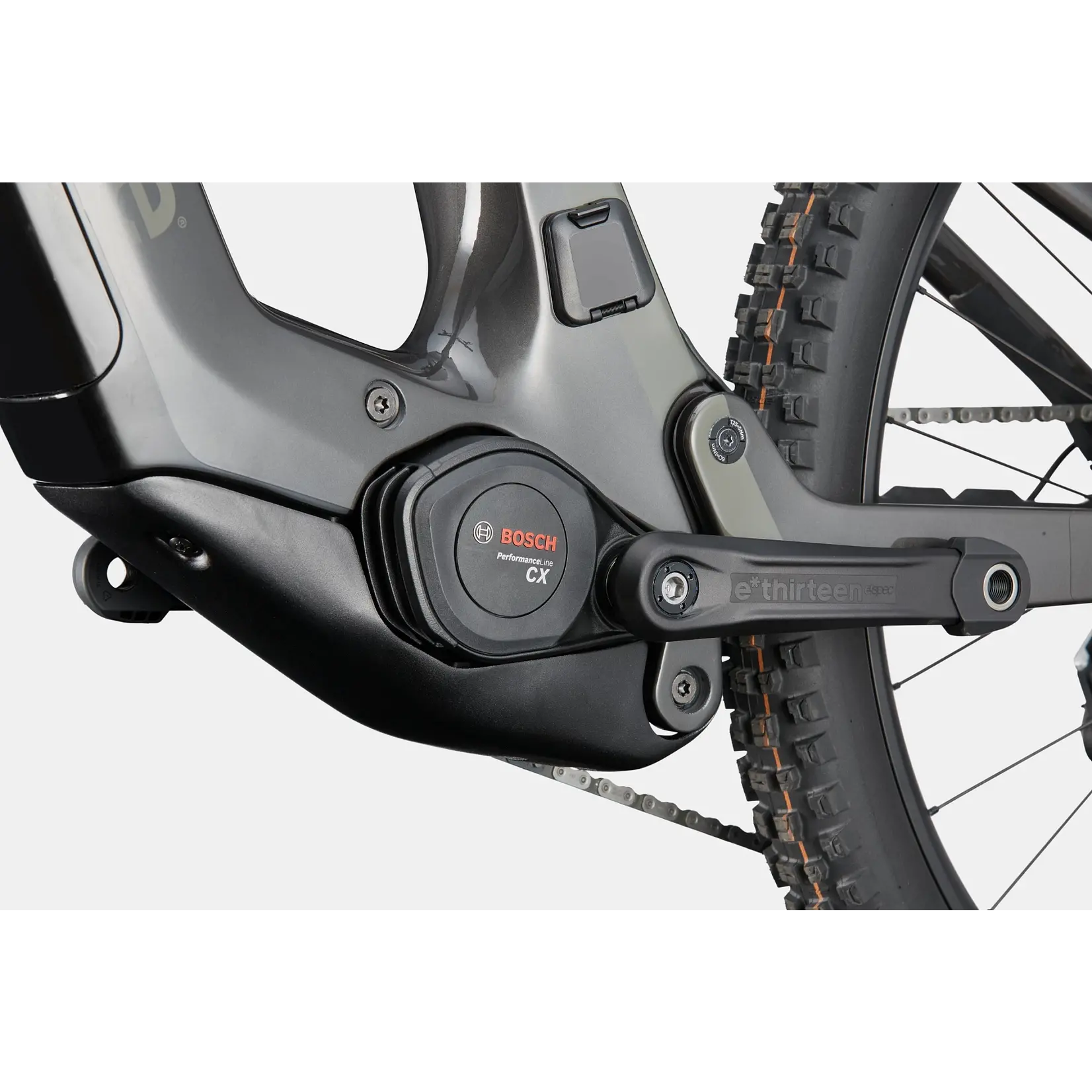

With the Bosch CX motor, you get up to 100Nm of serious torque without the soundtrack. The integrated 800Wh battery keeps the ride clean, quiet, and packed with power, so you can climb harder, explore longer, and keep things stealthy. The Bosch mini remote keeps everything dialed, letting you adjust on the fly without breaking the flow.
Ready to Bash, Engineered to Last
1,000 grams lighter than before. 170mm of Fox 38 travel. 165mm DHX coil shock. The Moterra LT isn’t here to tiptoe. It’s here to rip. Drop in, send it deep, and let the suspension do its thing—this bike was made to take a beating and come back for more.
Size-Specific, Trail-Perfect

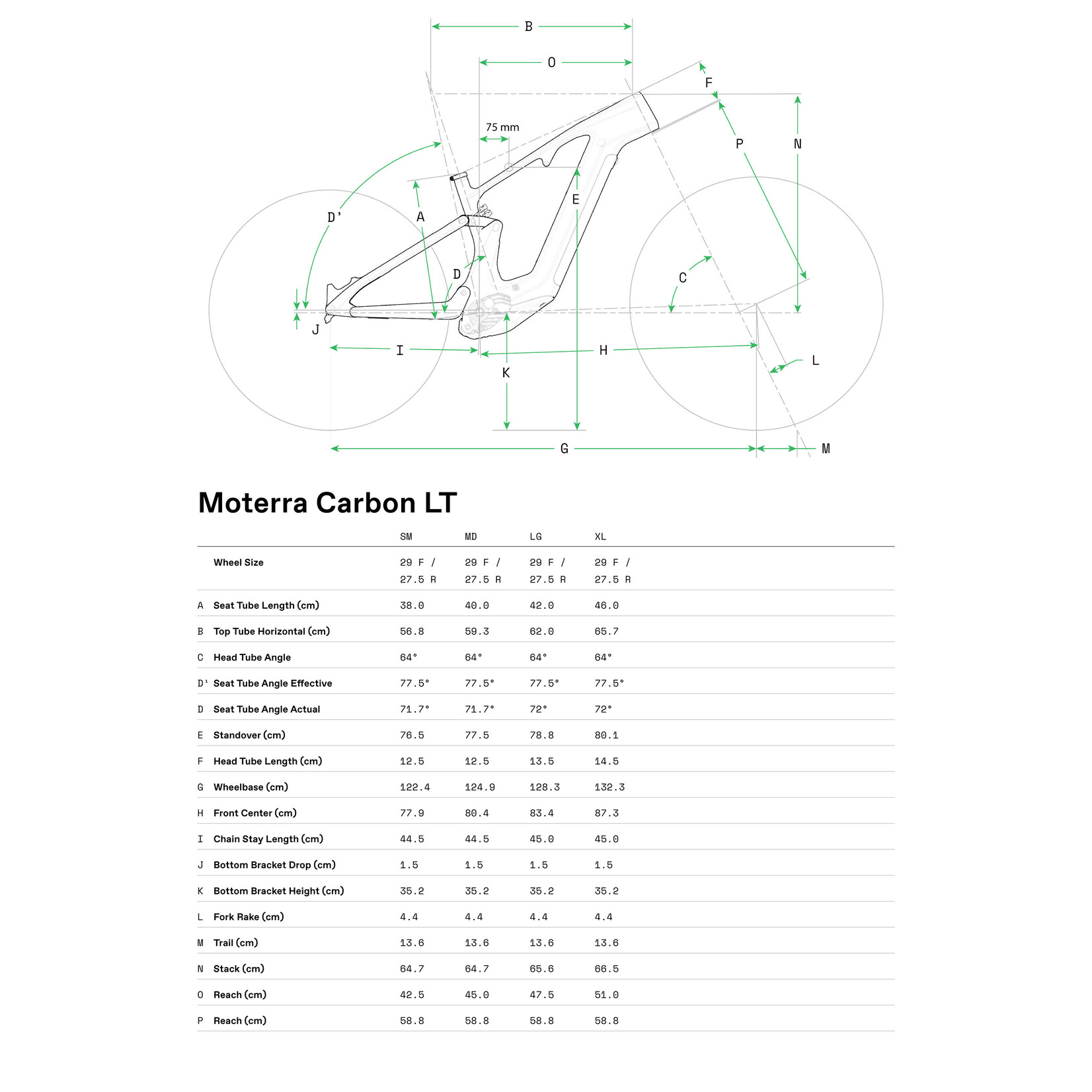

Forget scaled-up, copy-paste suspension and geo. Moterra LT’s Proportional Response™ adjusts kinematics and geometry for every frame size, so you get the same crisp handling, rock-solid traction, and intuitive ride feel—no matter where you ride.
Specs
Frameset
Frame
Moterra LT Carbon, 27.5" rear wheel, 29" front wheel, 165mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube
Fork
Fox Float Performance 38, 170mm, Grip Damper 3Pos, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
Headset
Acros ICR, 1.5" to 1.8", sealed bearings
Rear Shock
Fox DHX Performance, Coil, 2 pos adj, 230x65mm
E-System
Drive Unit
Bosch Performance Line CX
Battery
Bosch PowerTube, 800Wh
Display

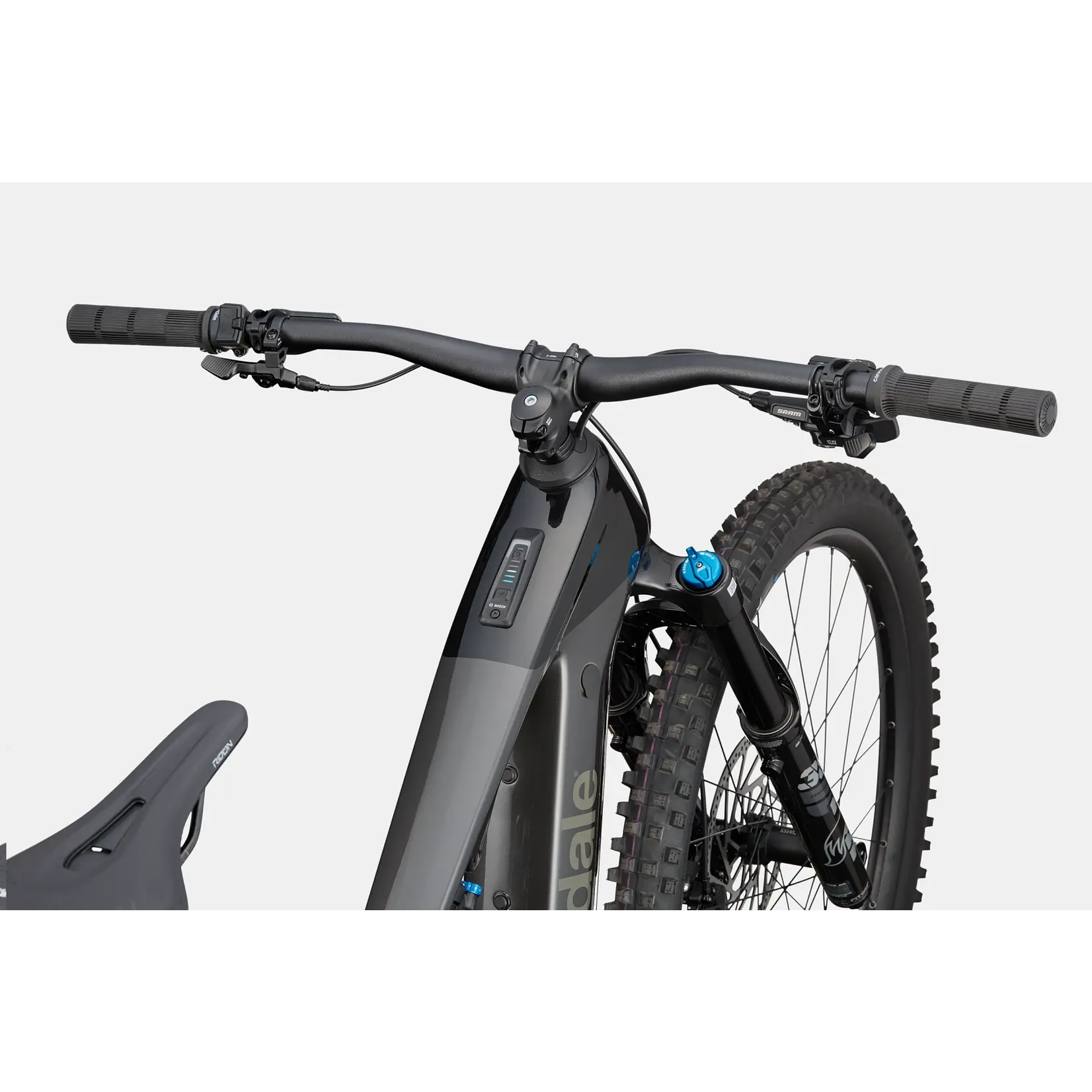

Top Tube System Controller w/ Mini Remote
Drivetrain

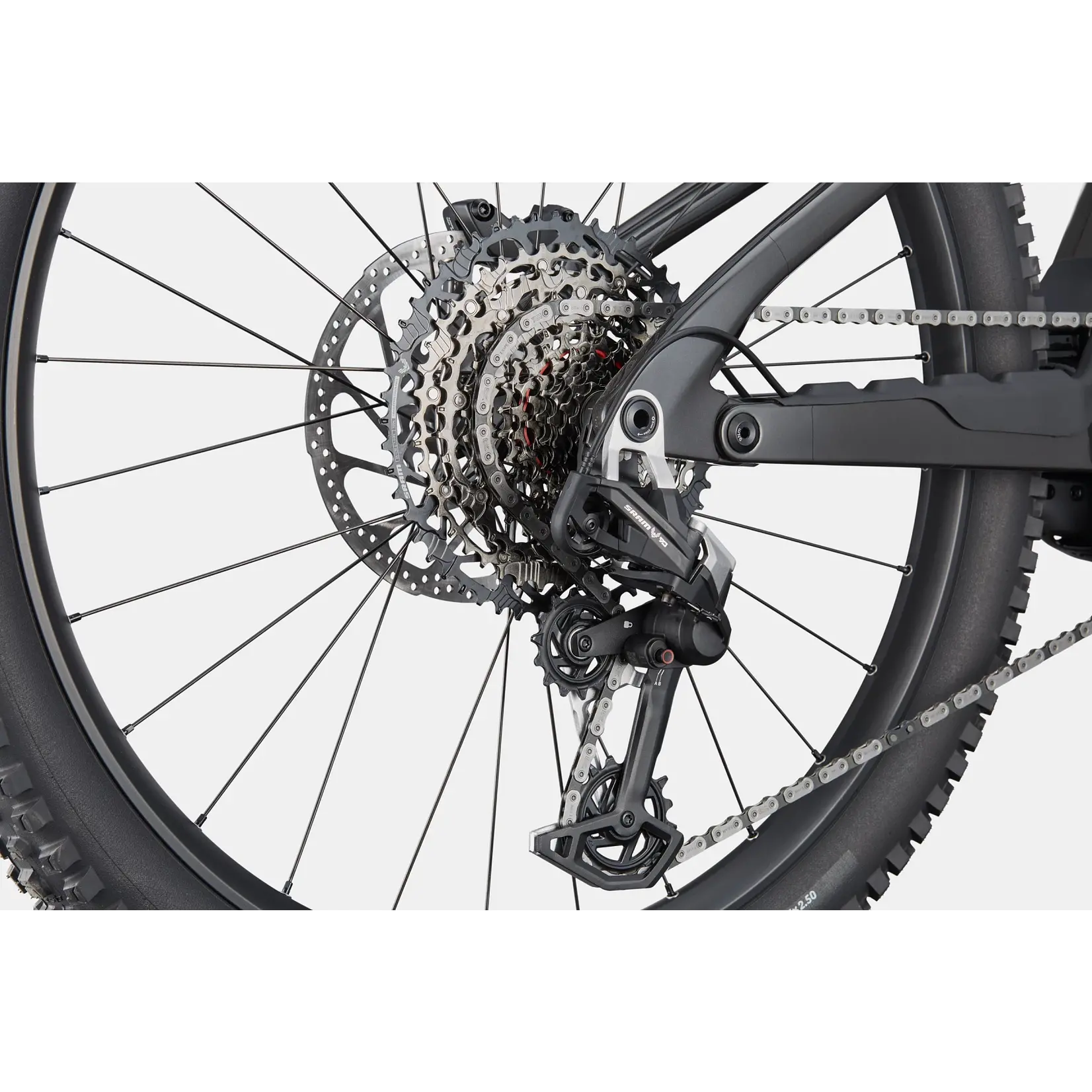

Rear Derailleur
SRAM Eagle 90, T-Type
Shifters
SRAM Eagle 90, T-Type, 12-speed
Chain
SRAM Eagle 70 T-Type, 12-speed
Crank
e*thirteen e*spec Helix Core, 55mm chainline, 160mm, 34T
Rear Cogs
SRAM Eagle 70 T-Type, 10-52, 12-speed
Brakes
Brakes
TRP EVO Pro 4-piston hydraulic disc, 220/203mm rotors, 2.3mm thickness
Brake Levers
TRP EVO Pro hydraulic disc
Wheels
Rims
DT Swiss H 1900 Spline, 30mm inner width, TC (tubeless ready)
Spokes
DT Swiss Competition, straight pull
Hubs
(F) DT Swiss 370, 15x110mm thru-axle / (R) DT Swiss 370 Ratchet System 18, 12x148mm thru-axle, 6-bolt
Tires
(F) Schwalbe Shredda Front, 29x2.5", Radial casing, Addix Ultra Soft Foldable, tubeless ready / (R) Schwalbe Albert, 27.5x2.5", Radial casing, Addix Soft Foldable, tubeless ready
Front Tire
Schwalbe Shredda Front, 29x2.5", Radial casing, Addix Ultra Soft Foldable , tubeless ready
Rear Tire
Schwalbe Albert, 27.5x2.5", Radial casing, Addix Soft Foldable, tubeless ready
Components
Handlebar
Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
Stem
Cannondale 1, 6061 Alloy, 35.0, 40mm, 0°
Grips
Cannondale TaperRidge
Saddle
Fizik Terra Aidon X5, 145mm, Wingflex, S-Alloy Mobius rail
Seatpost
Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
Extra
Extra 1
Tubeless Valves, Bosch PowerMore range extender compatible
Please note that, based on component availability and other factors, specifications are subject to change without notice.
