With advancements in our carbon layup, our engineers have made the new Synapse 20% more compliant than its already butter-smooth predecessor, ensuring you feel 100% more comfortable even on the roughest roads.
Like A Glove
A great fit and feel makes for a great ride. And with our Proportional Response Construction, every rider gets that as standard. From the carbon layup through to the geometry, everything on Synapse has been tuned and tested by frame size. So that your bike works in harmony with you to give the best possible ride for you and your height.
Bring it all, bring it on

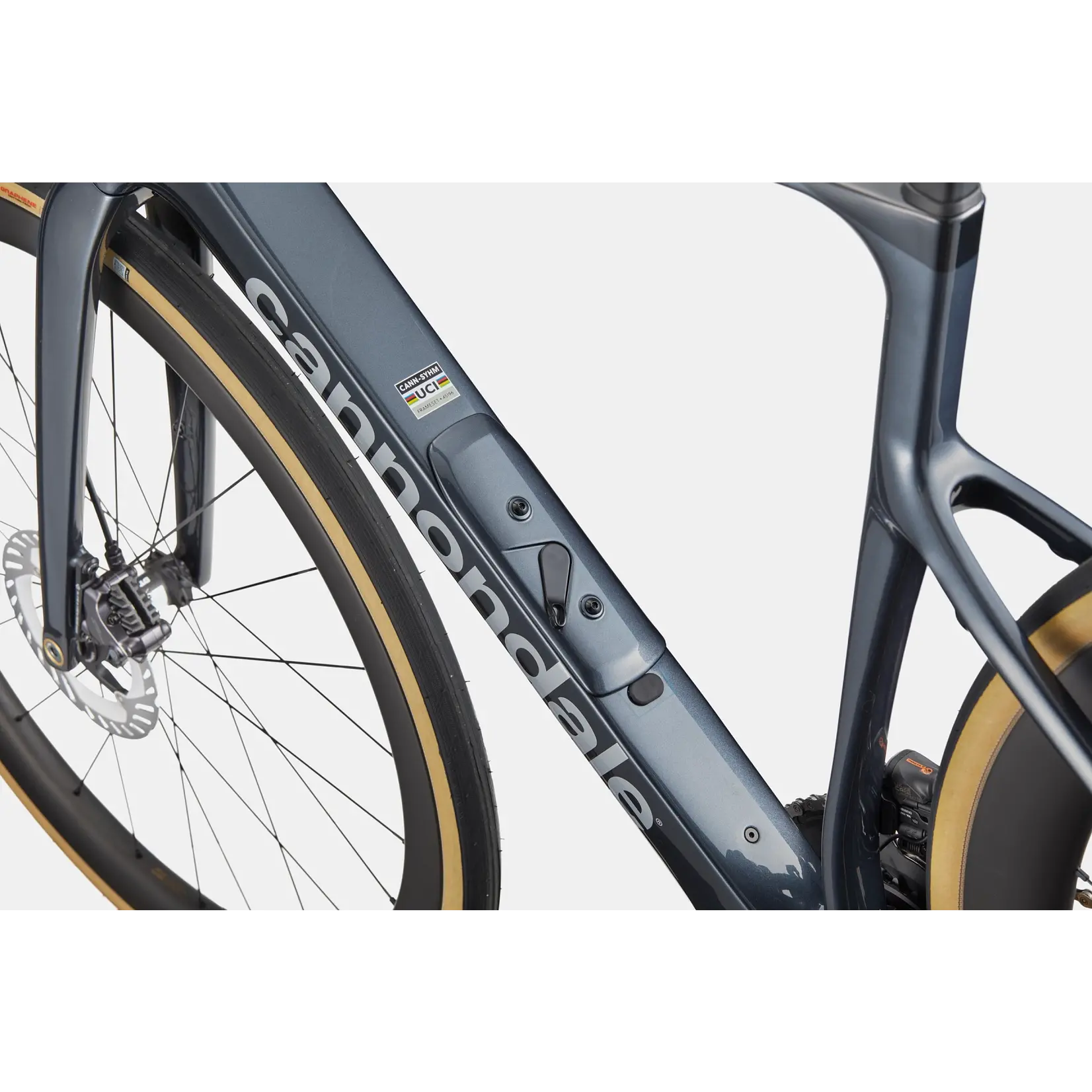

Our all-new StashPort storage system in the downtube is there when you need it and hidden when you don’t. Paired with its StashBag buddy, you can bring along your ride essentials and know that they’ll be secure, whatever you get up to out there. Meanwhile, best-in-class tire clearance lets you take the idea of riding for longer to a whole new level.
Specs
Frameset
Frame
Synapse Hi-MOD Carbon, Proportional Response construction, integrated cable routing, downtube Stashport, 12x142 thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense Gen 2.0 equipped, fender mounts
Fork
Synapse Hi-MOD Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/5" Delta steerer, 55mm offset, fender mounts
Headset
Integrated, 1-1/8" - 1-1/2"
Drivetrain
Rear Derailleur

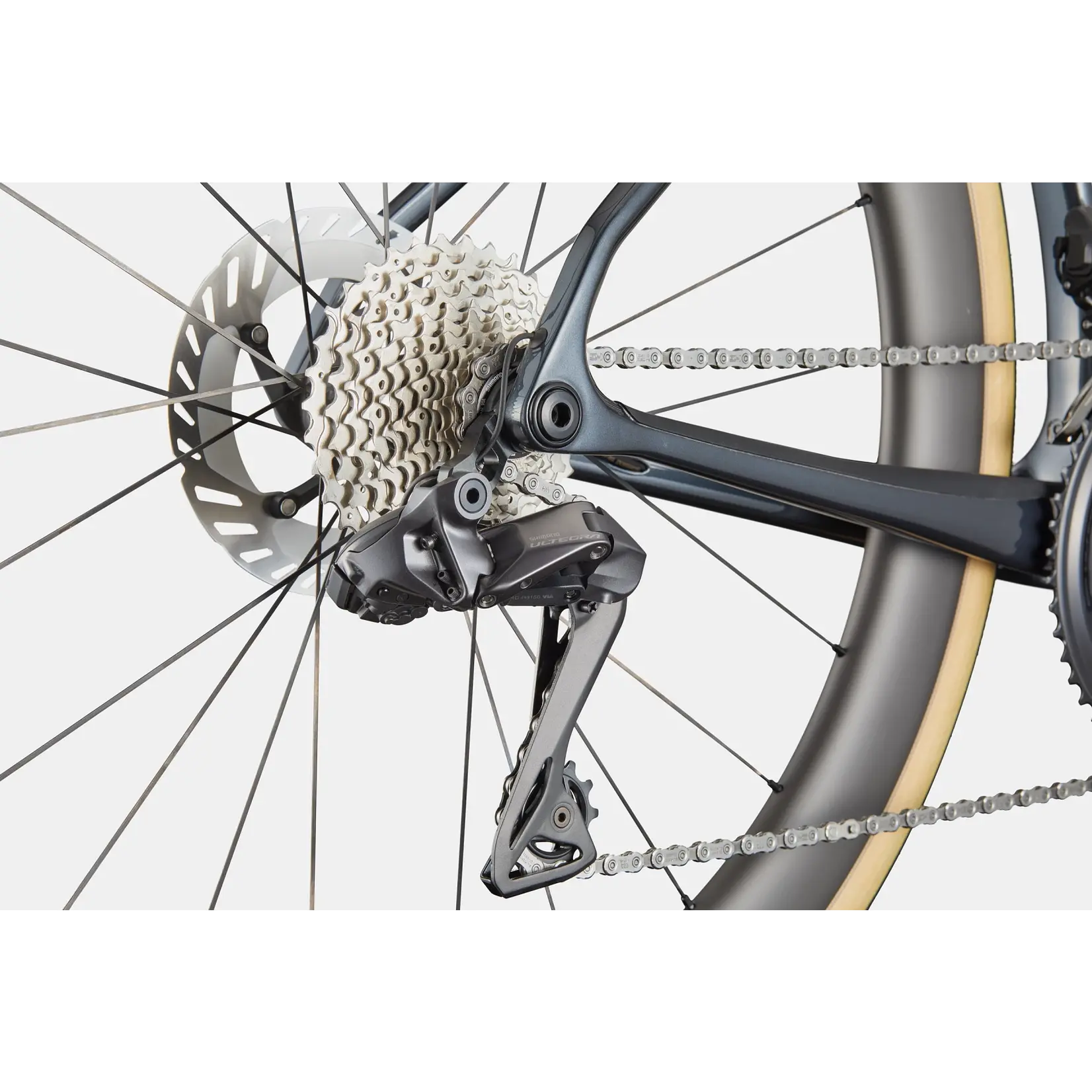

Shimano Ultegra Di2 R8150
Front Derailleur
Shimano Ultegra Di2 R8150
Shifters
Shimano Ultegra Di2 R8170, wireless, 12-speed
Chain
Shimano Ultegra, 12-speed
Crank

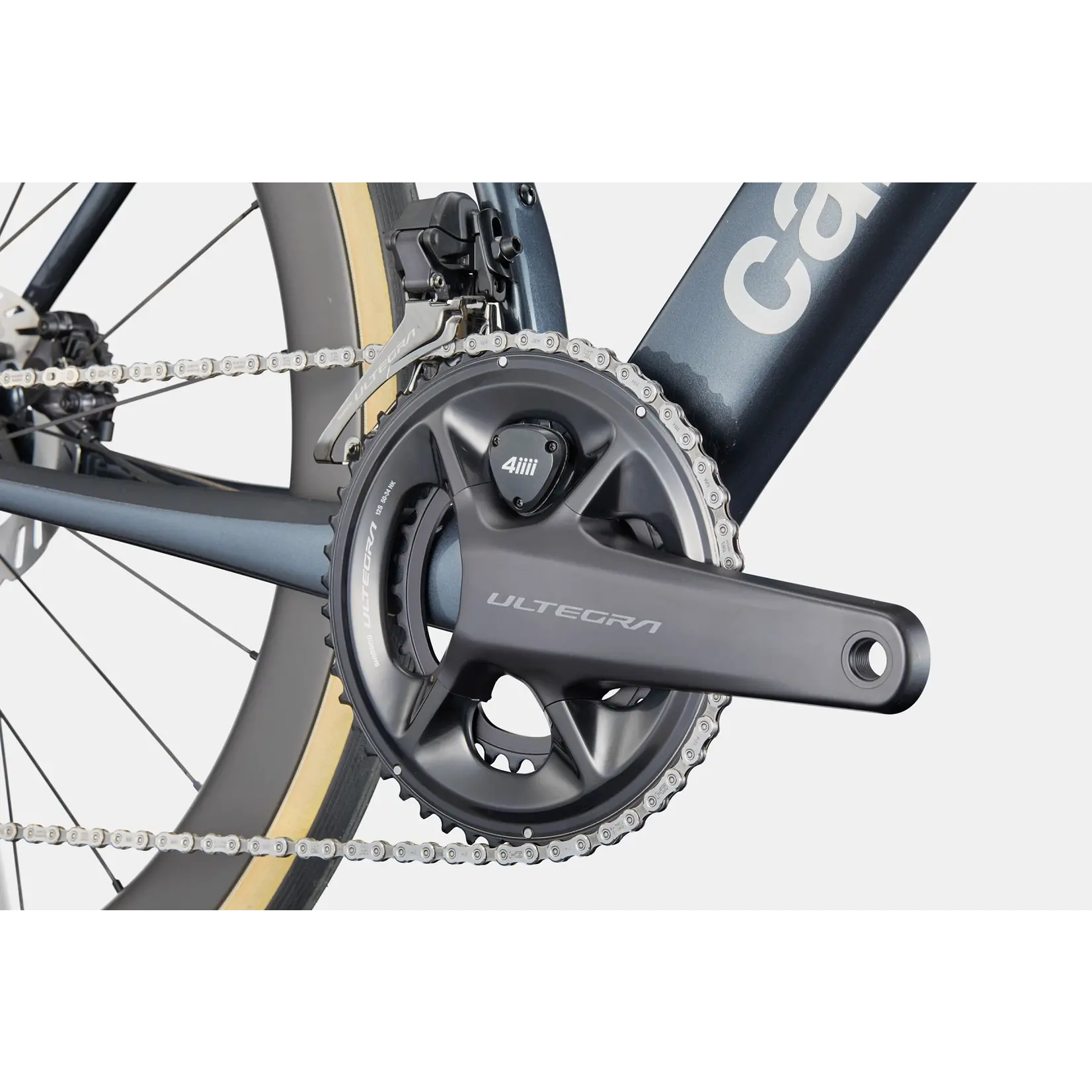

Shimano Ultegra R8100, 50/34, 4iiii PRECISION 3+ PRO Power Meter
Rear Cogs
Shimano Ultegra R8100, 11-34, 12-speed
Bottom Bracket
Shimano BSA 68
Brakes
Brakes
Shimano Ultegra R8170, 160/160mm CL800 rotors
Brake Levers
Shimano Ultegra Di2 R8170 hydraulic disc
Wheels
Rims
Reserve 42 | 49 Turbulent Aero, 24h, tubeless ready
Spokes
Sapim CX-Ray Aero straight pull
Hubs
(F) DT Swiss 350, 12x100mm centerlock / (R) DT Swiss 350, 12x142mm centerlock
Tires
Vittoria Corsa PRO Control, 700x32c, tubeless ready
Components
Handlebar

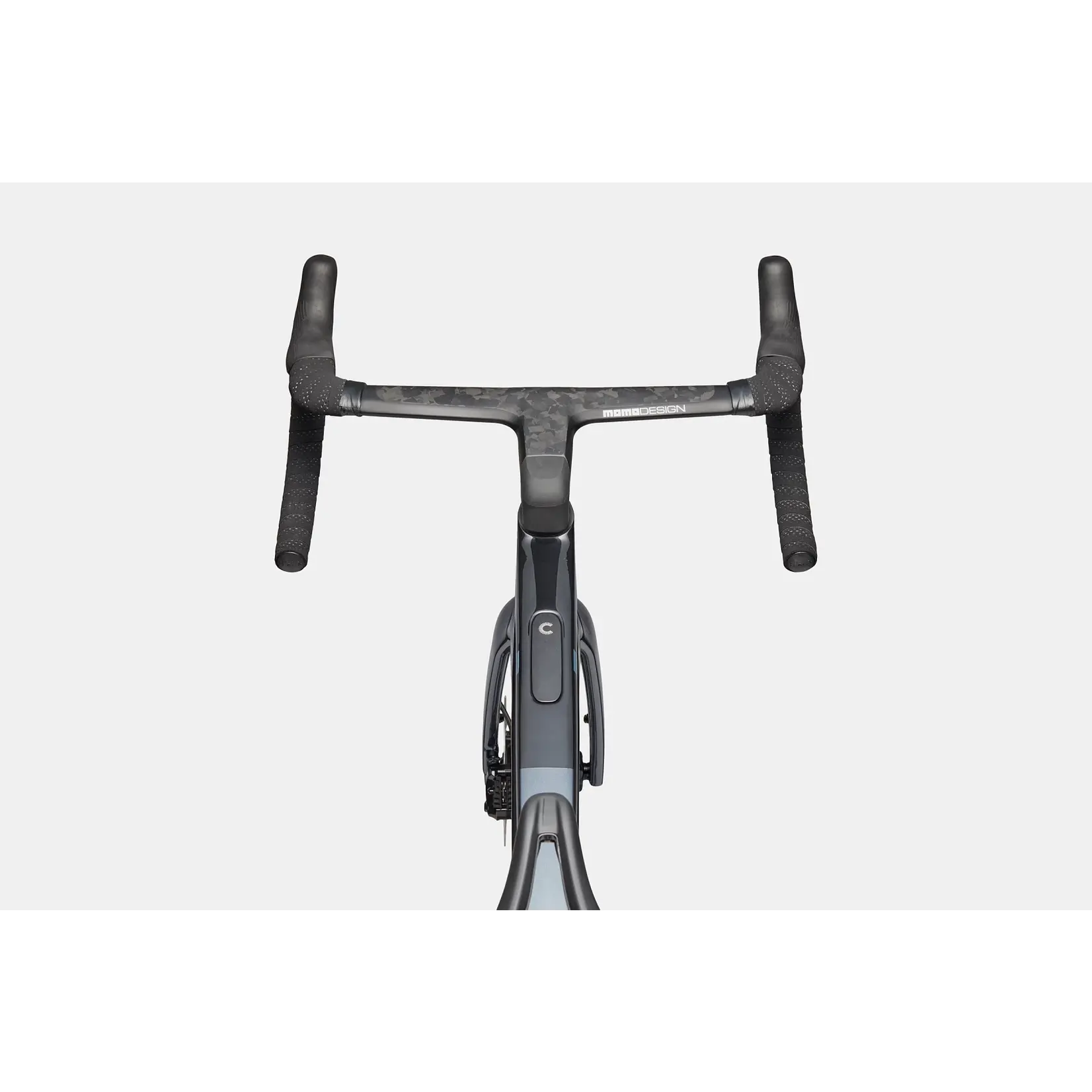

Cannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing
Stem
Cannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing
Grips
Fizik Tempo Bondcush Soft, 3mm
Saddle
Fizik Vento Argo R5, 140mm
Seatpost
Cannondale C1 Aero 27 Carbon, SmartSense compatible, 330mm length, 0mm offset (44-48cm), 15mm offset (51-61cm)
Extra
Extra 1
Large StashBag downtube storage bag, Fillmore tubeless valves
Please note that, based on component availability and other factors, specifications are subject to change without notice.
