With advancements in our carbon layup, our engineers have made the new Synapse 20% more compliant than its already butter-smooth predecessor, ensuring you feel 100% more comfortable even on the roughest roads.
Like A Glove
A great fit and feel makes for a great ride. And with our Proportional Response Construction, every rider gets that as standard. From the carbon layup through to the geometry, everything on Synapse has been tuned and tested by frame size. So that your bike works in harmony with you to give the best possible ride for you and your height.
Bring it all, bring it on

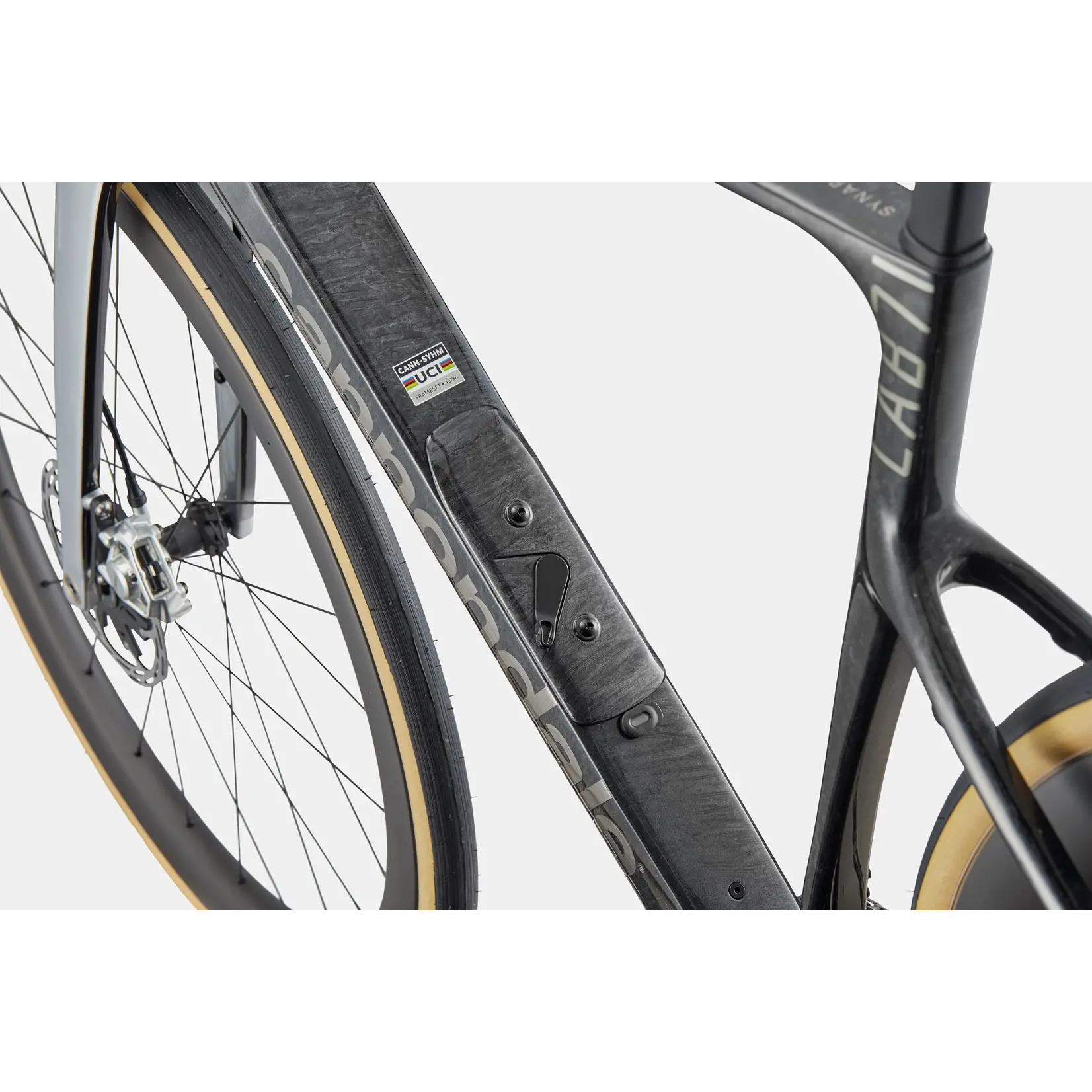

Our all-new StashPort storage system in the downtube is there when you need it and hidden when you don’t. Paired with its StashBag buddy, you can bring along your ride essentials and know that they’ll be secure, whatever you get up to out there. Meanwhile, best-in-class tire clearance lets you take the idea of riding for longer to a whole new level.
Specs
Frameset
Frame
LAB71 Synapse Hi-MOD Carbon, Proportional Response construction, integrated cable routing, downtube Stashport, 12x142 thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense Gen 2.0 equipped, fender mounts
Fork
Lab71 Synapse Hi-MOD Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/5" Delta steerer, 55mm offset, fender mounts
Headset
Integrated, 1-1/8" - 1-1/2"
Drivetrain

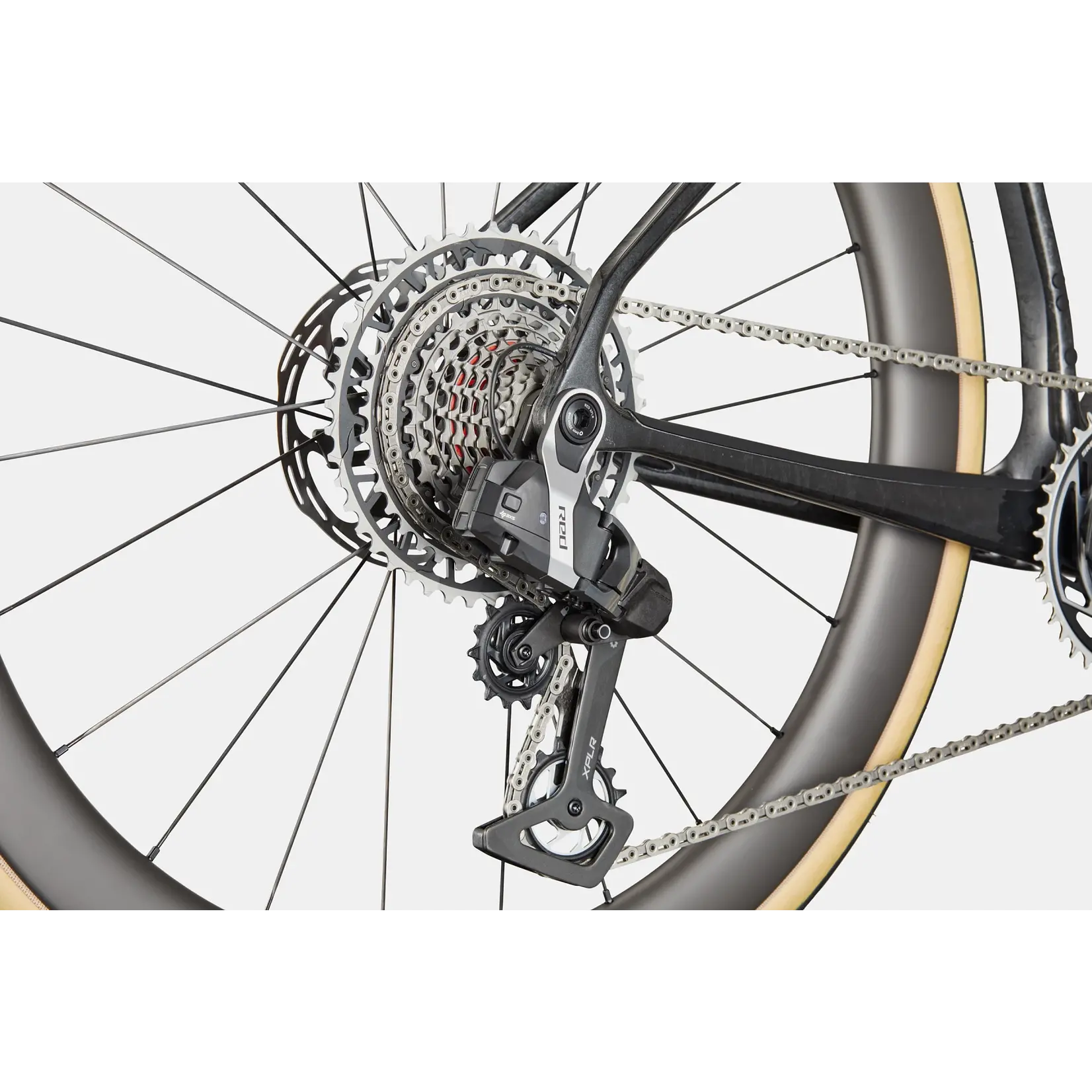

Rear Derailleur
SRAM RED XPLR AXS, 13-speed
Shifters
SRAM RED AXS, 13-speed

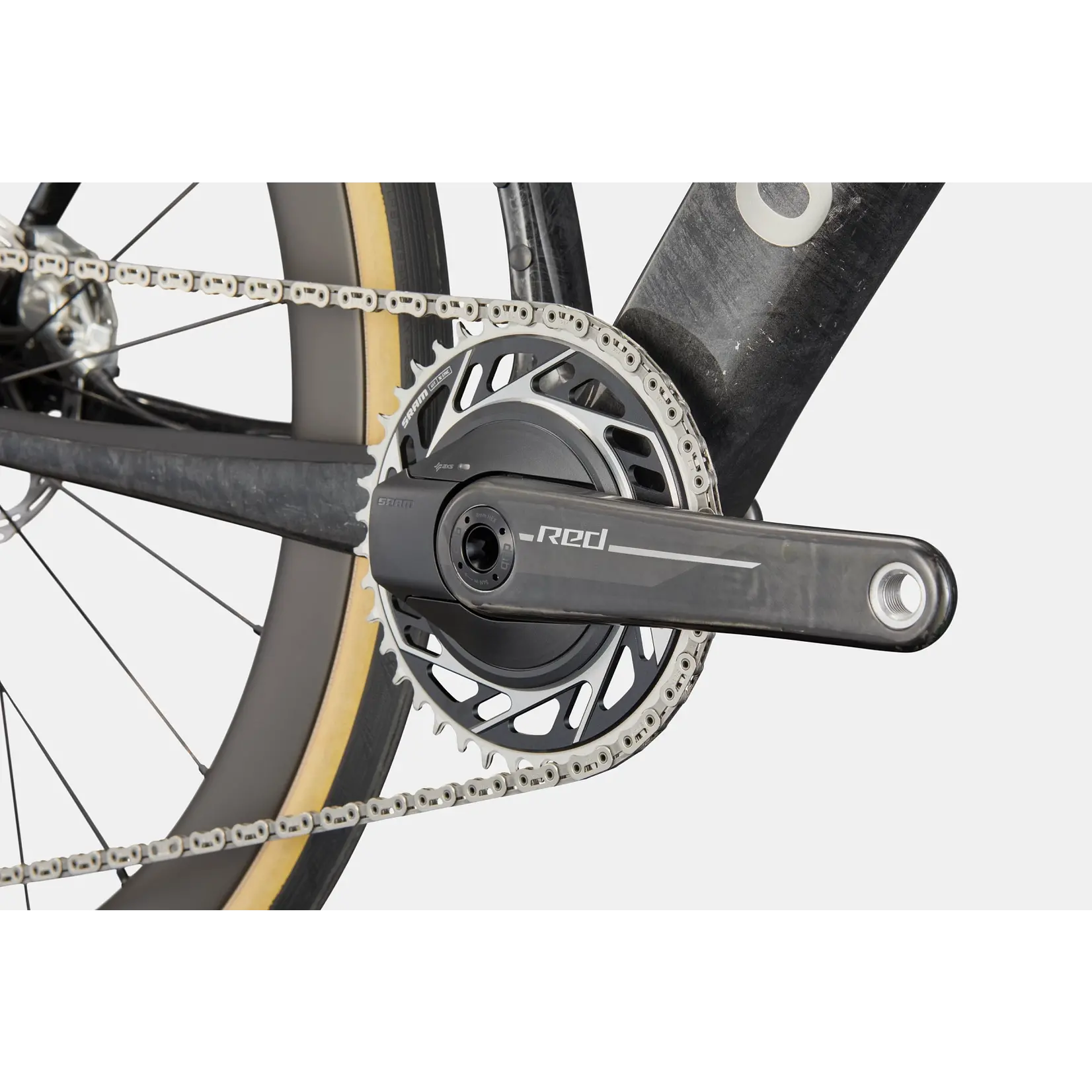

Crank
SRAM RED AXS Power Meter, 44T
Rear Cogs
SRAM XPLR XG-1391, 10-46, 13-speed
Bottom Bracket
CeramicSpeed BSA for SRAM, Coated Version
Brakes
Brakes
RED AXS hydraulic disc Brake, 160/160mm Paceline X centerlock rotors
Brake Levers
SRAM RED AXS hydraulic disc
Wheels
Rims
Reserve 42 | 49 Turbulent Aero, 24h, tubeless ready
Spokes
Sapim CX-Ray Aero straight pull
Hubs
(F) DT Swiss 180, 12x100mm centerlock / (R) DT Swiss 180, 12x142mm centerlock
Tires
Vittoria Corsa PRO Control, 700x32c, tubeless ready
Components

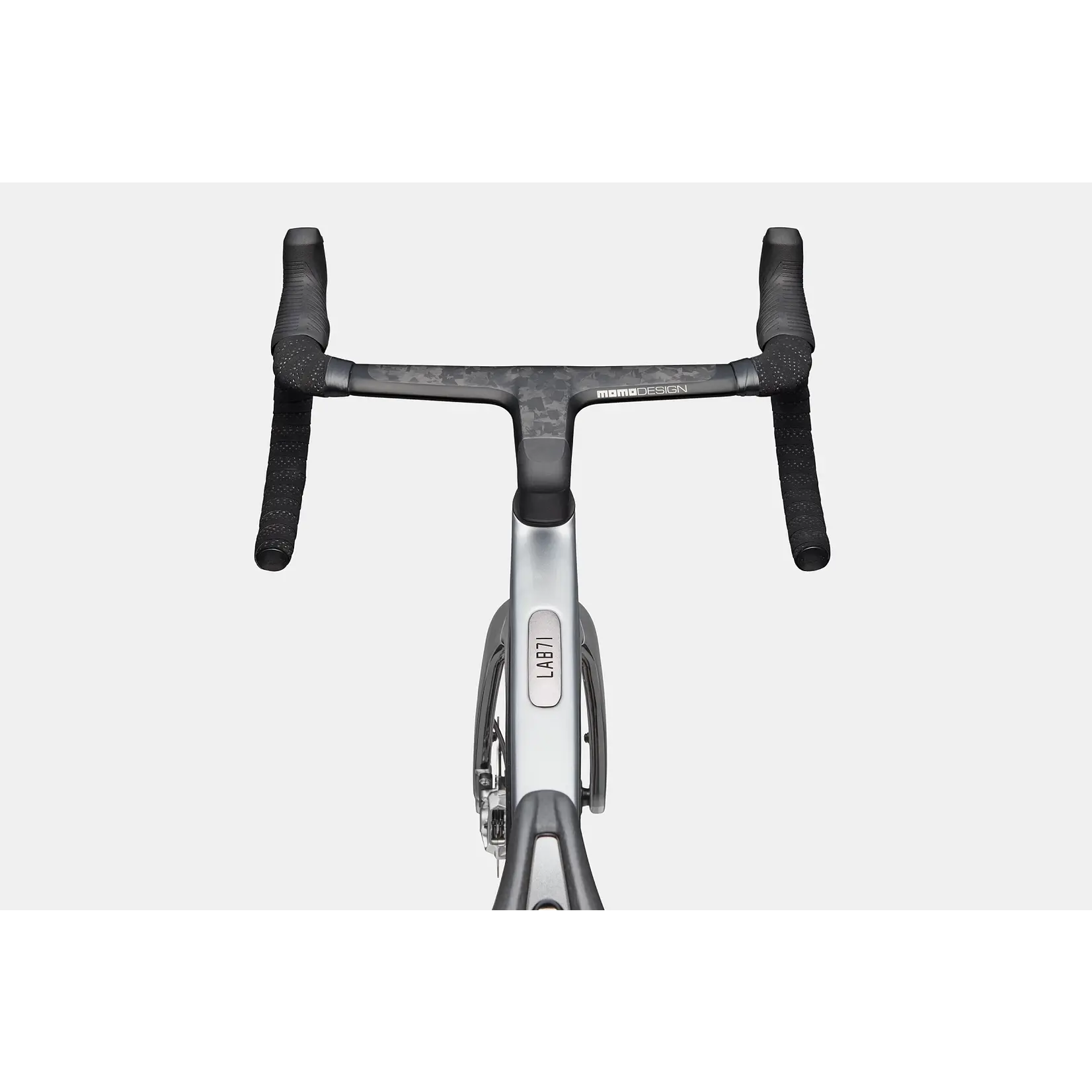

Handlebar
Cannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing
Stem
Cannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing
Grips
Fizik Tempo Bondcush Soft, 3mm
Saddle
Fizik Vento Argo 00 Carbon, 140mm
Seatpost
Cannondale C1 Aero 27 Carbon, SmartSense compatible, 330mm length, 0mm offset (44-48cm), 15mm offset (51-61cm)
Connectivity
Wheel Sensor
Cannondale Wheel Sensor
Extra
Extra 1
SmartSense Gen 2.0 system (Bluetooth BLE and ANT+ compatible: SmartSense LightSkin U1E ultra-compact 800 lumen variable output headlight, SmartSense Garmin Varia eRTL 615 rear-facing radar/taillight, SmartSense 43.2Wh removable internal battery w/integrated flashlight, SmartSense SRAM AXS charging cable), large StashBag downtube storage bag, Fillmore tubeless valves
Please note that, based on component availability and other factors, specifications are subject to change without notice.
