Delivering a smooth ride without the added weight and complexity of a shock and links, Kingpin is our answer for the most demanding gravel riders. Whether you need more comfort to go long, more traction to push beyond or more give to take on the tech - Kingpin is the maintenance-free, lightweight answer to your prayers.
Lefty Goes Big
The smoothest, most-precise handling gravel fork in the world. With 30mm of bob-free travel and room for 700x45mm tires, Lefty Oliver lives to push the boundaries with comfort and control.
Corner like a Boss
Rail through the rough and come out smiling. Led by our OutFront steering geometry, the Topstone Carbon offers up handling that's serenely stable in the chop, and light & nimble everywhere else.
Specs
Frameset
Frame
Topstone Carbon, Kingpin suspension system, SmartSense compatible, Proportional Response construction, 12x142mm thru-axle, 27.2 dropper post ready, BSA 68mm threaded BB, DirectLine internal cable routing, removable fender bridge, multiple gear/bottle mounts
Fork
Lefty Oliver Carbon, 30mm travel, lockout, Chamber Damper w/ All-Over tune, ISO High-Ride air spring, tapered steerer, 700c, 55mm offset
Headset
Integrated, Carbon, 1-1/8" - 1-1/2"
Drivetrain

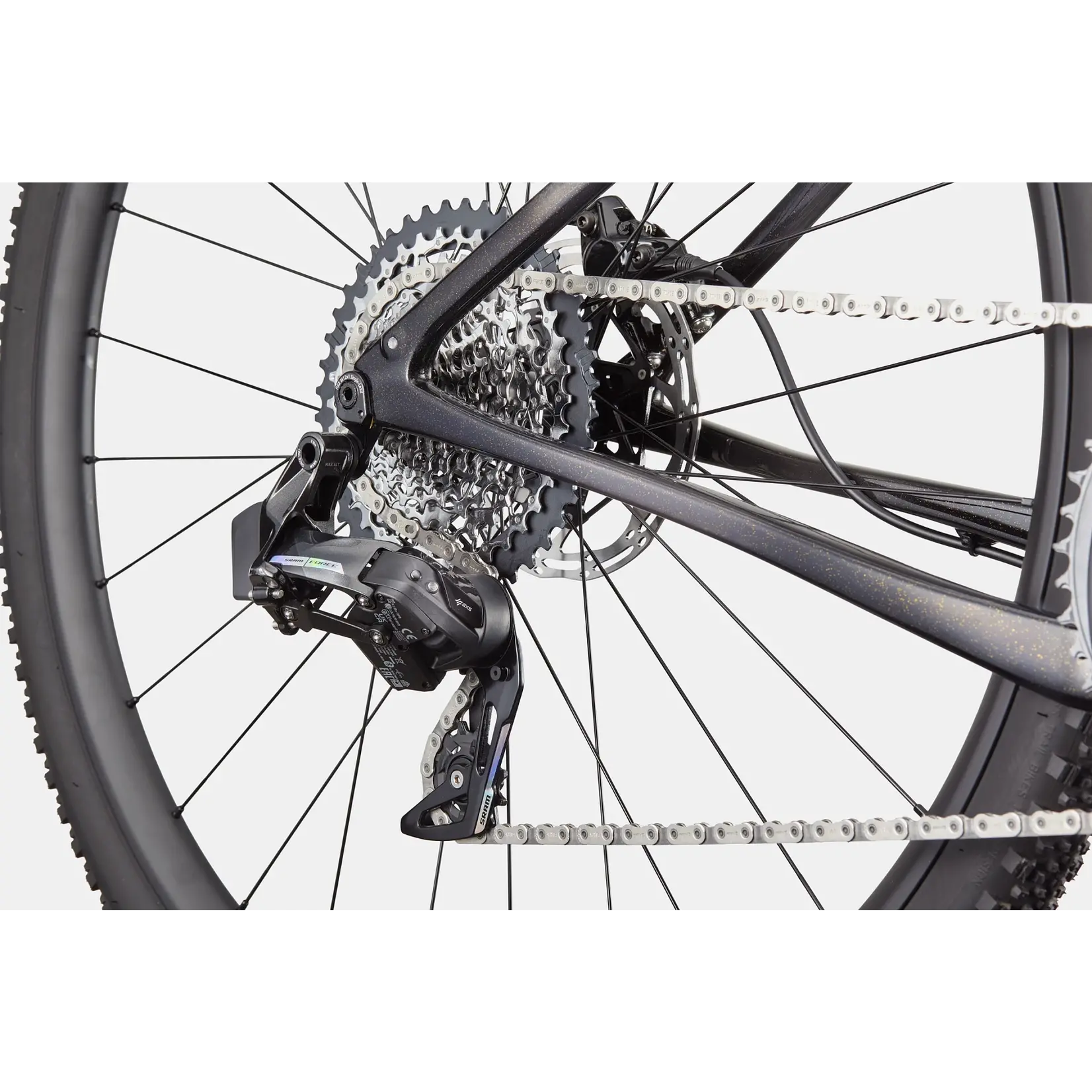

Rear Derailleur
SRAM Force eTap AXS XPLR

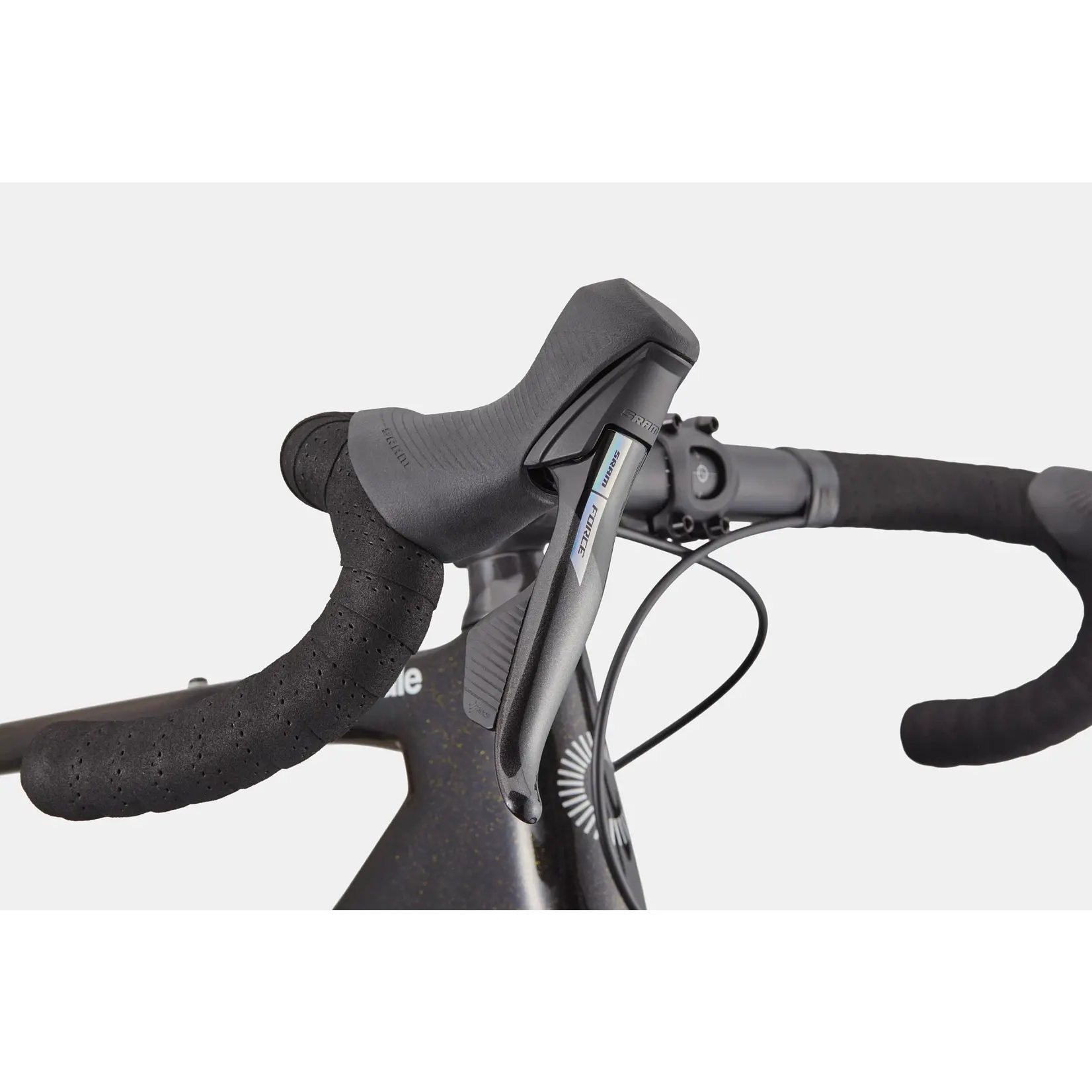

Shifters
SRAM Force eTap AXS, 12-speed
Chain
SRAM Force, 12-speed

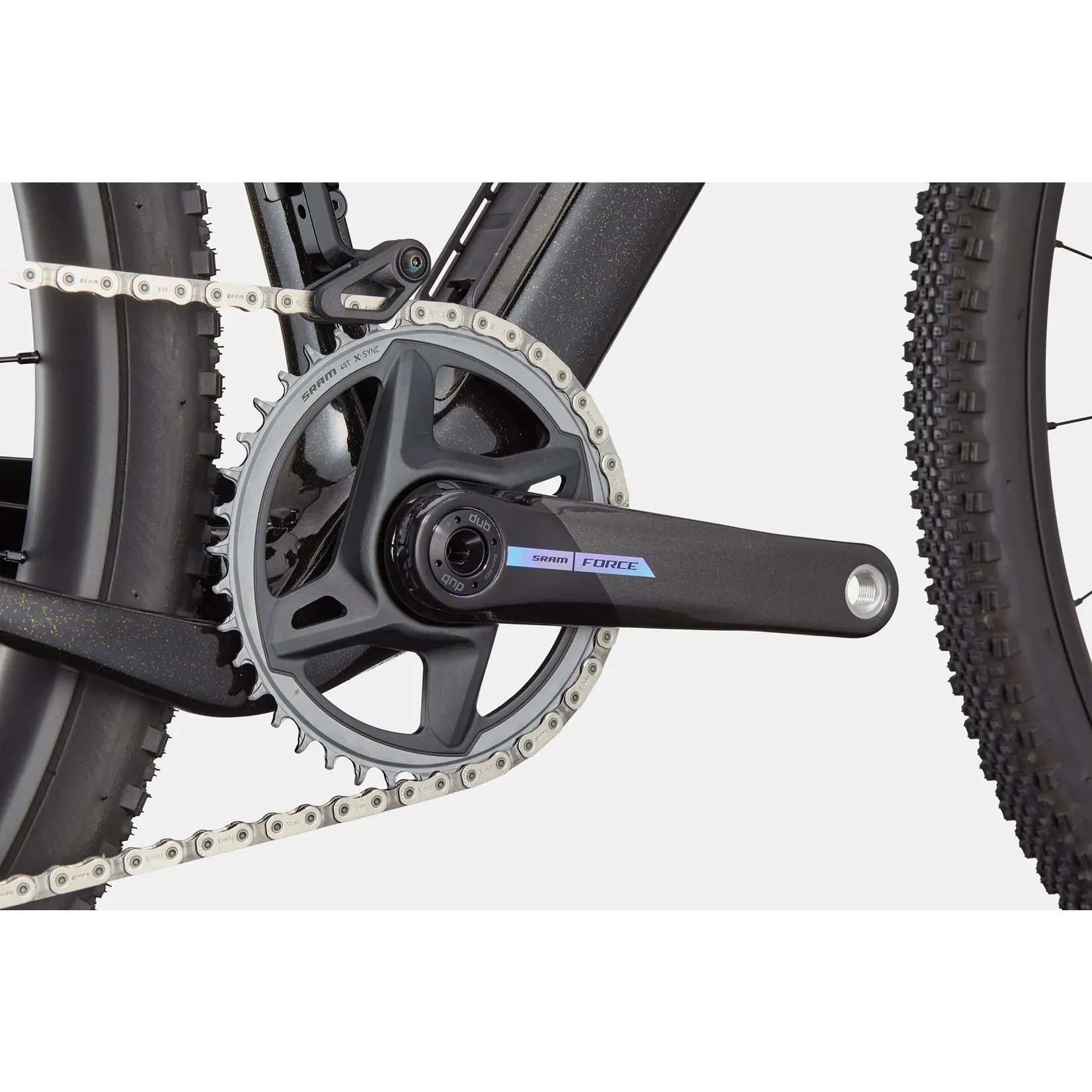

Crank
SRAM Force Direct Mount, 40T
Rear Cogs
SRAM XG-1271 XPLR, 10-44, 12-speed
Bottom Bracket
SRAM DUB BSA Road 68 Wide
Brakes
Brakes
SRAM Force eTap AXS hydraulic disc, 160/160mm CenterLine rotors
Brake Levers
SRAM Force eTap AXS
Wheels
Rims
HollowGram G-S 27 Carbon, 700c, 27mm internal width, 21mm deep, 28h, hookless, tubeless compatible
Spokes
Formula Grand Forza, double butted
Hubs
(F) HollowGram, Lefty, centerlock / (R) HollowGram 12x142mm w/ DT Swiss 350 internals, centerlock
Tires
WTB Raddler TCS Light, 700x44c, tubeless ready (Europe/UK - Vittoria Mezcal III 700x44c ANT tubeless compatible)
Front Tire
WTB Raddler TCS Light, 700x44c, tubeless ready (Europe/UK - Vittoria Mezcal III 700x44c ANT tubeless compatible)
Rear Tire
WTB Raddler TCS Light, 700x44c, tubeless ready (Europe/UK - Vittoria Mezcal III 700x44c ANT tubeless compatible)
Components

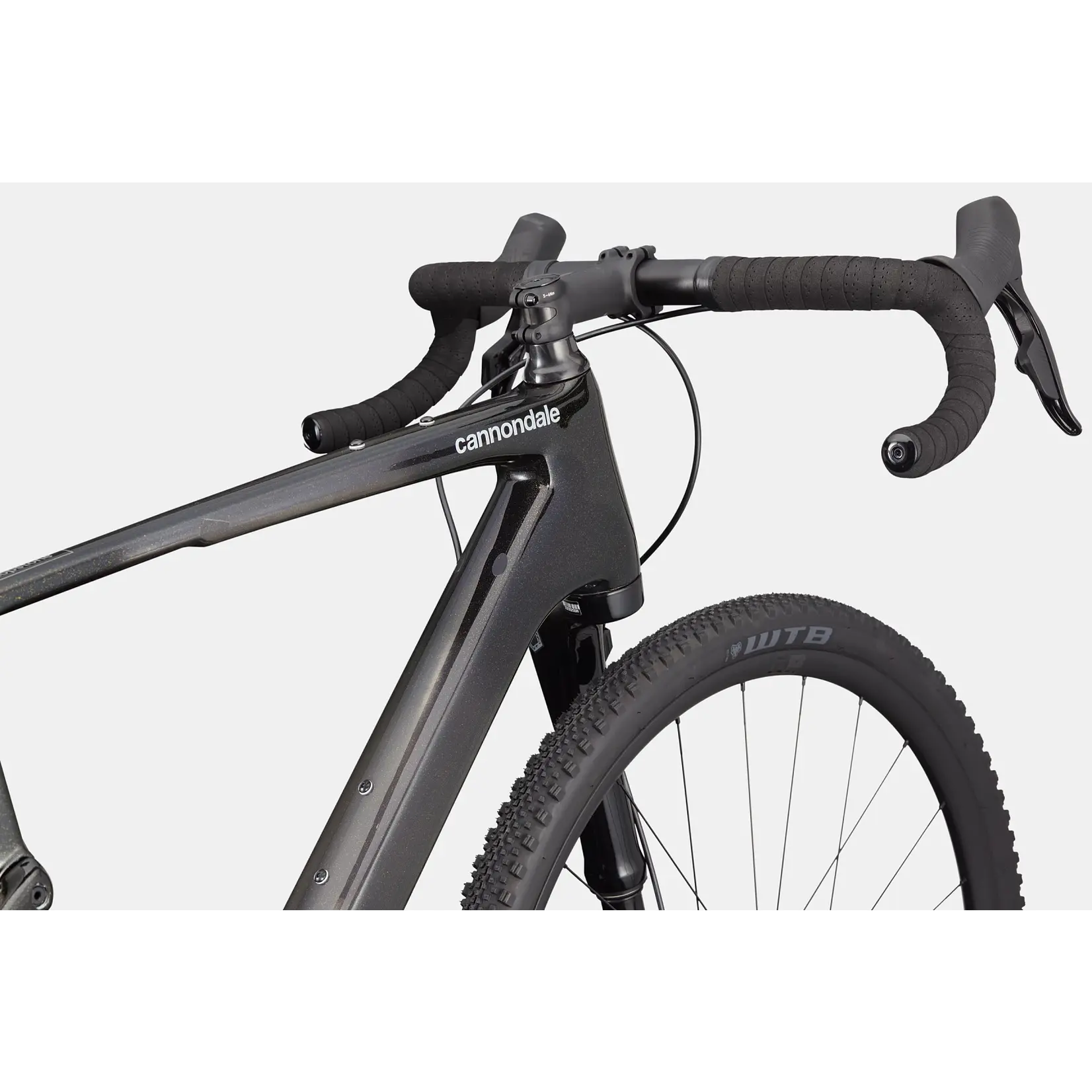

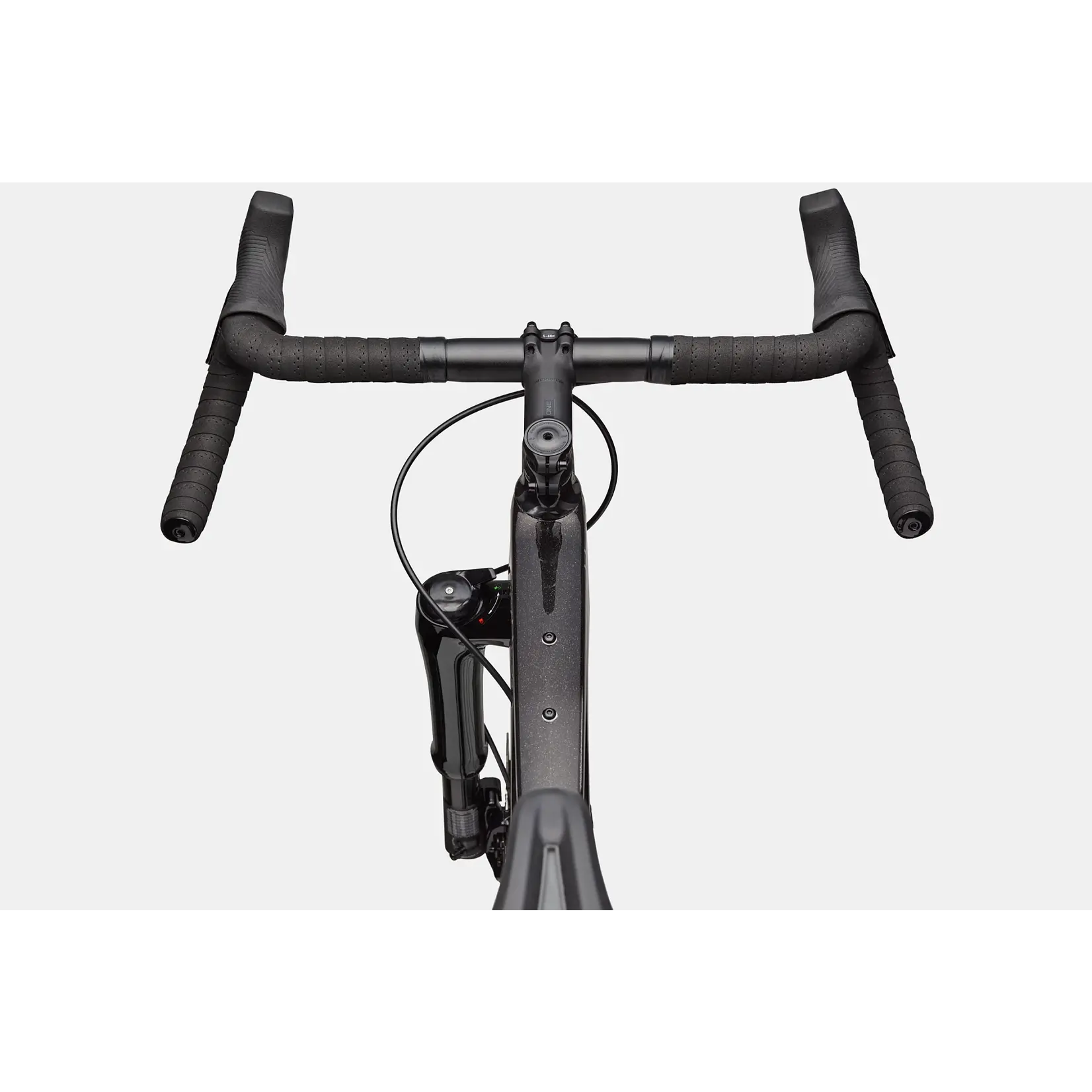

Handlebar
Cannondale 2 ShortDrop, 7050 alloy, 12 deg flare drop
Stem
Cannondale 1, 7050 Alloy, -7°
Grips
Fizik Solocush Soft, 3mm
Saddle
Fizik Terra Argo X3, kium rails
Seatpost
SAVE Carbon, 27.2x350mm (XS-L), 400mm (XL)
Connectivity
Wheel Sensor
Cannondale Wheel Sensor
Extra
Extra 1

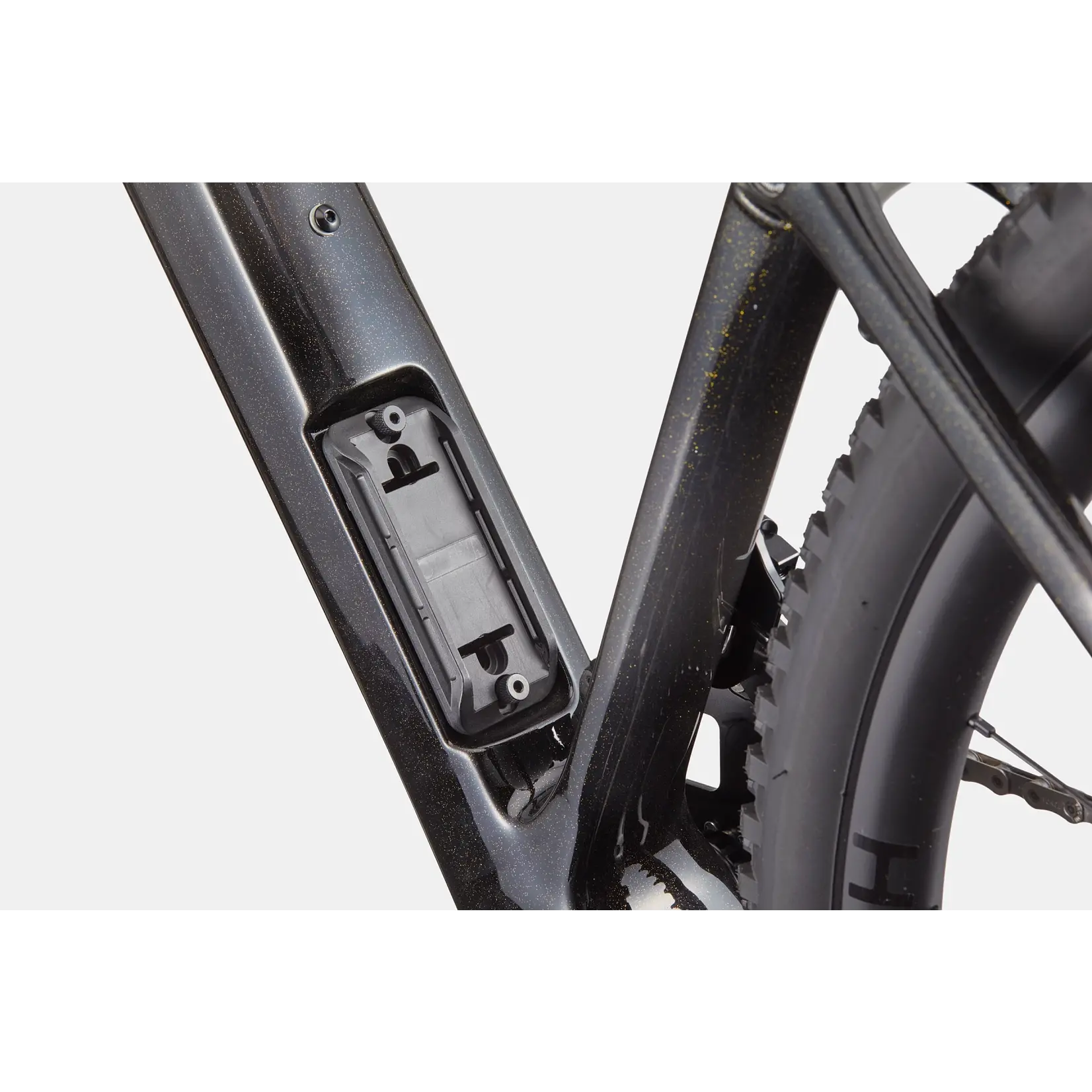

StrapRack tool/stuff holder
Please note that, based on component availability and other factors, specifications are subject to change without notice.
