Kingpin is our lightweight, go-for-longer rear suspension. Maintenance-free and complexity-free, it gives the Topstone frame legit rear-wheel travel without compromising stiffness for the sprint. Kingpin provides a smoother ride, more traction to push harder, and more give to take on the rough stuff. You’ll hardly know it’s there, but you’ll be very glad you’ve got it.
Bring It All

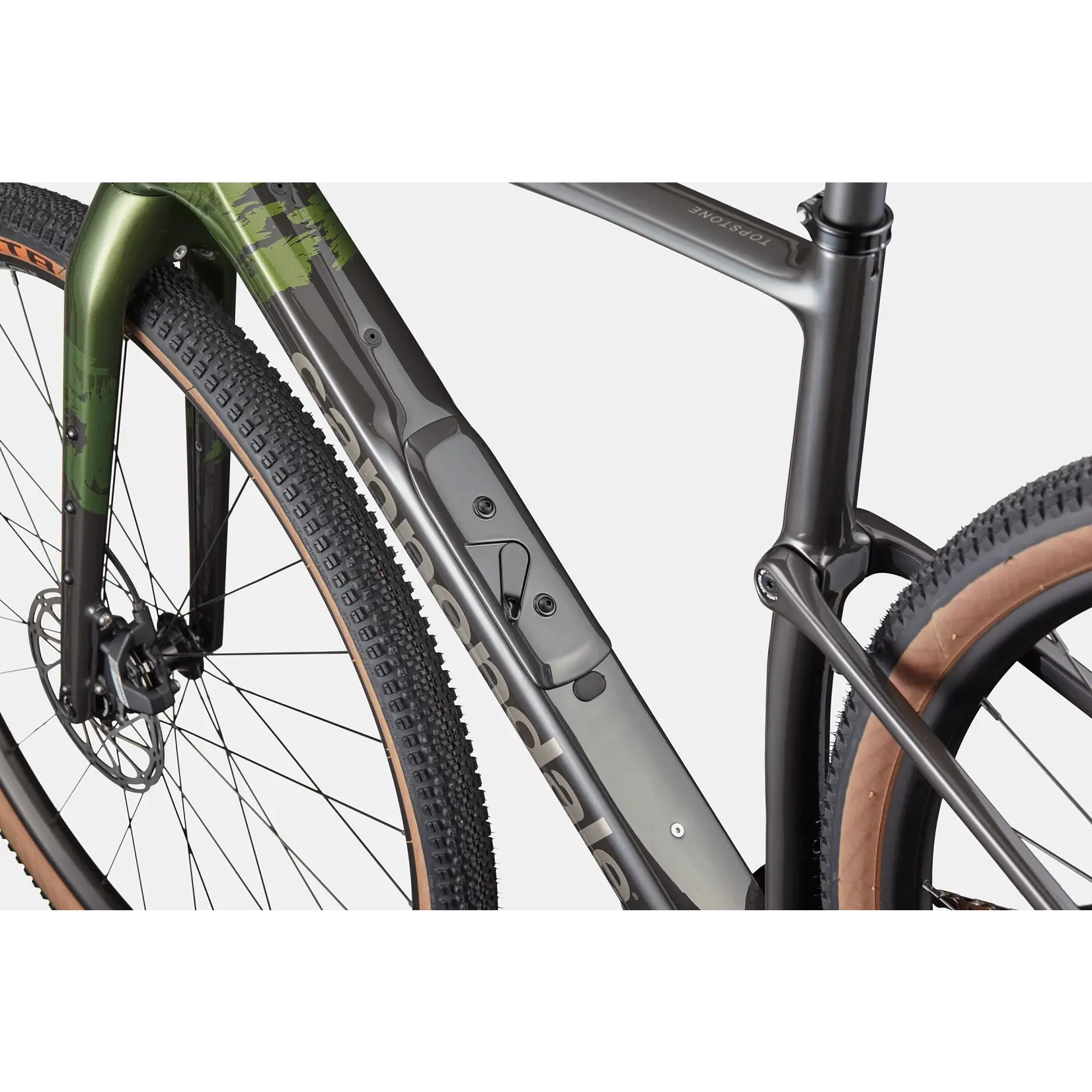

Our all-new StashPort storage system in the downtube is designed to be concealed yet convenient. Paired with the special StashBag, you can bring your essentials along for the ride and know that they’ll be kept safe, whatever you get up to out there. Meanwhile, multiple mounting points on the frame, mean more gear and more adventures.
Tuned Ride
A dialed-in ride, just for you. AKA: Proportional Response Construction. Everything from the carbon layup to the geometry on Topstone is individually tuned by frame size. So that the bike – including KingPin suspension – works in harmony to give you the best ride for you and your dimensions.
Specs
Frameset
Frame
Topstone Carbon, Kingpin suspension system, Proportional Response construction, downtube Stashport, internal cable routing, 12x142mm thru-axle, 27.2 dropper post ready, UDH, BSA 68mm threaded BB, flat mount disc, removable fender bridge, multiple gear/bottle mounts
Fork
Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts
Headset
Acros IS52/40 ICR
Drivetrain

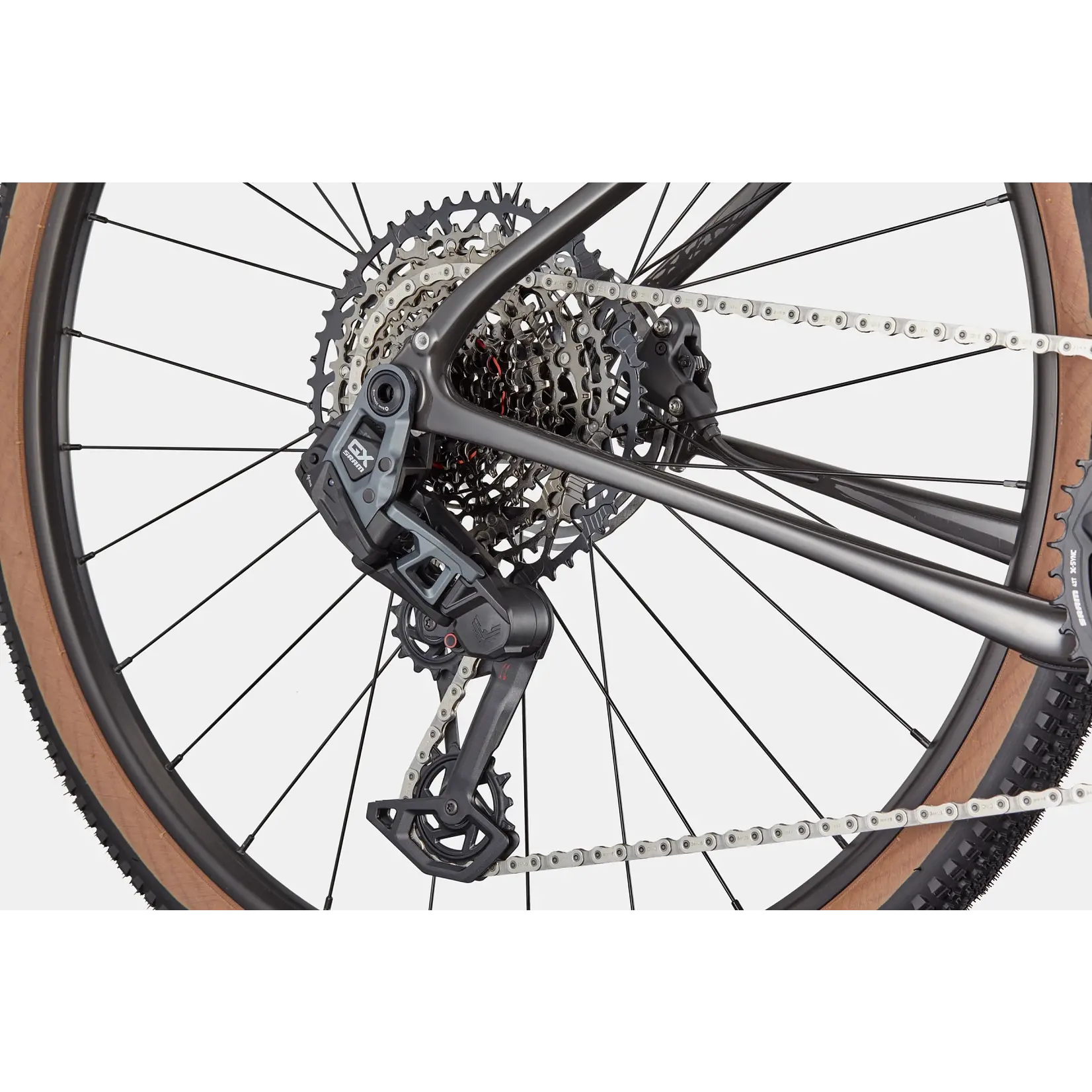

Rear Derailleur
SRAM GX Eagle AXS, T-Type
Shifters
SRAM Apex AXS, 12-speed
Chain
SRAM GX Eagle Transmission, 12-speed

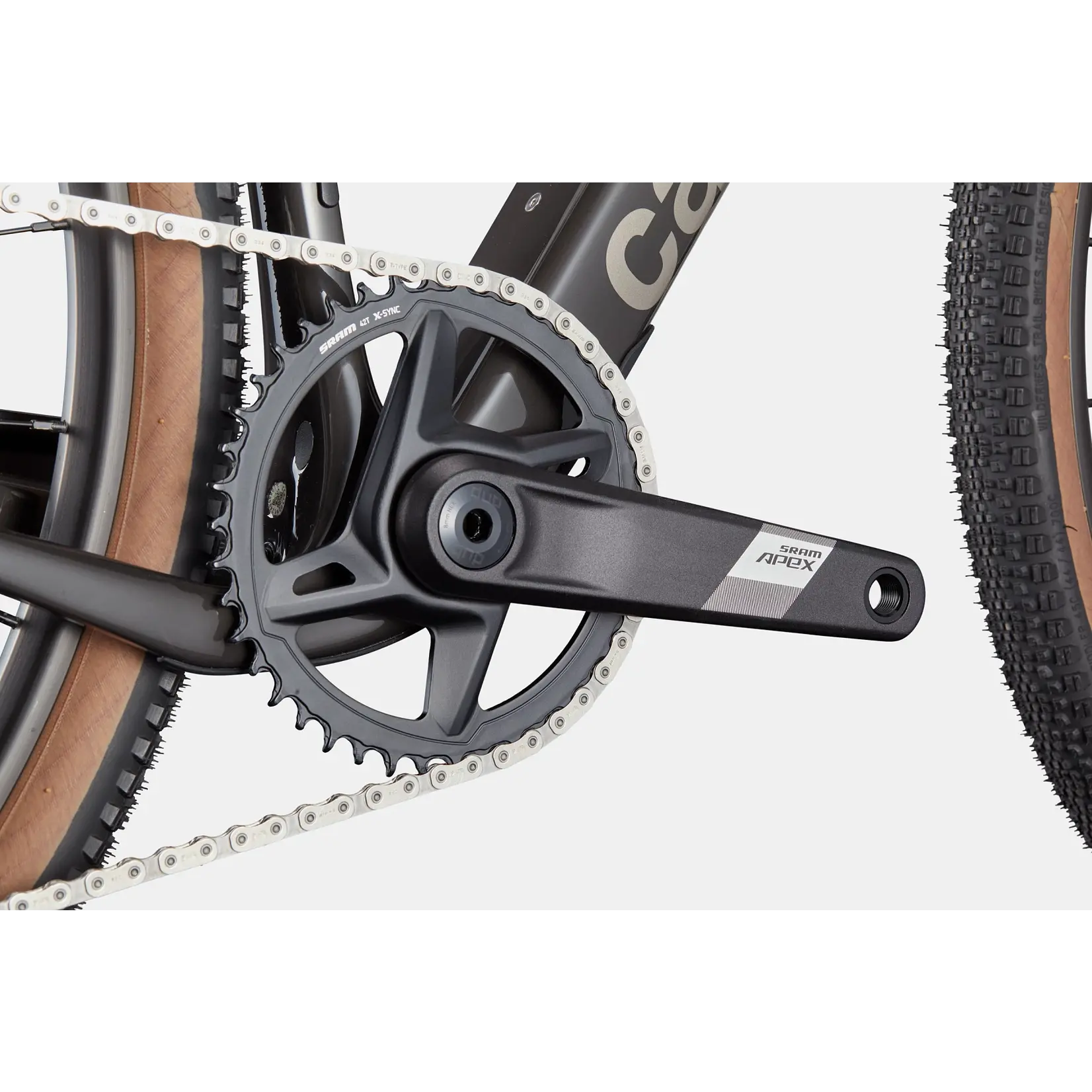

Crank
SRAM Apex DUB Wide, 42T
Rear Cogs
SRAM XS-1270, 10-52, T-Type, 12-speed
Bottom Bracket
SRAM DUB BSA Road 68 Wide
Brakes
Brakes
SRAM Apex hydraulic disc, 160/160mm CenterLine centerlock rotors
Brake Levers
SRAM Apex AXS hydraulic disc
Wheels
Rims
WTB KOM Team i25 TCS, 28h, tubeless ready
Spokes
Stainless Steel, 14g
Hubs
(F) Shimano TC500, 12x100mm centerlock / (R) Shimano TC500, 12x142mm centerlock
Tires
WTB Riddler TCS Light, 700x45c, tubeless ready
Components

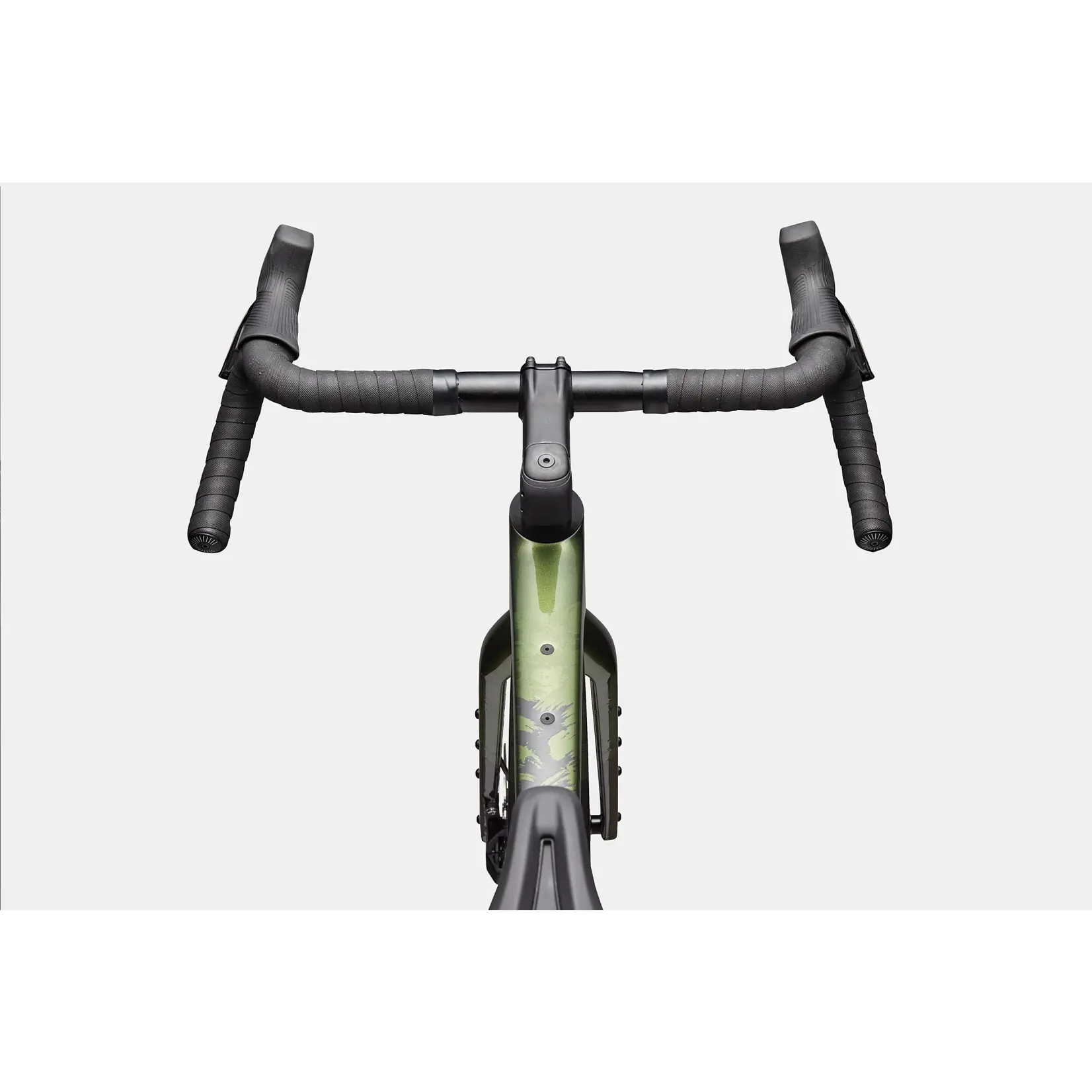

Handlebar
Cannondale 2 ShortDrop, 7050 alloy, 12 deg flare drop
Stem
Cannondale C1 Conceal, Alloy, 31.8, -6°
Grips
Cannondale KnurlCork, 2.7mm
Saddle
Fizik Terra Argo X7
Seatpost
Cannondale 2 Carbon, 27.2x350mm (47-58), 400mm (61)
Connectivity
Wheel Sensor
Cannondale Wheel Sensor
Extra
Extra 1
Large StashBag downtube storage bag, tubeless valve stems, SRAM AXS charger
Please note that, based on component availability and other factors, specifications are subject to change without notice.
