Kingpin is our lightweight, go-for-longer rear suspension. Maintenance-free and complexity-free, it gives the Topstone frame legit rear-wheel travel without compromising stiffness for the sprint. Kingpin provides a smoother ride, more traction to push harder, and more give to take on the rough stuff. You’ll hardly know it’s there, but you’ll be very glad you’ve got it.
Bring It All

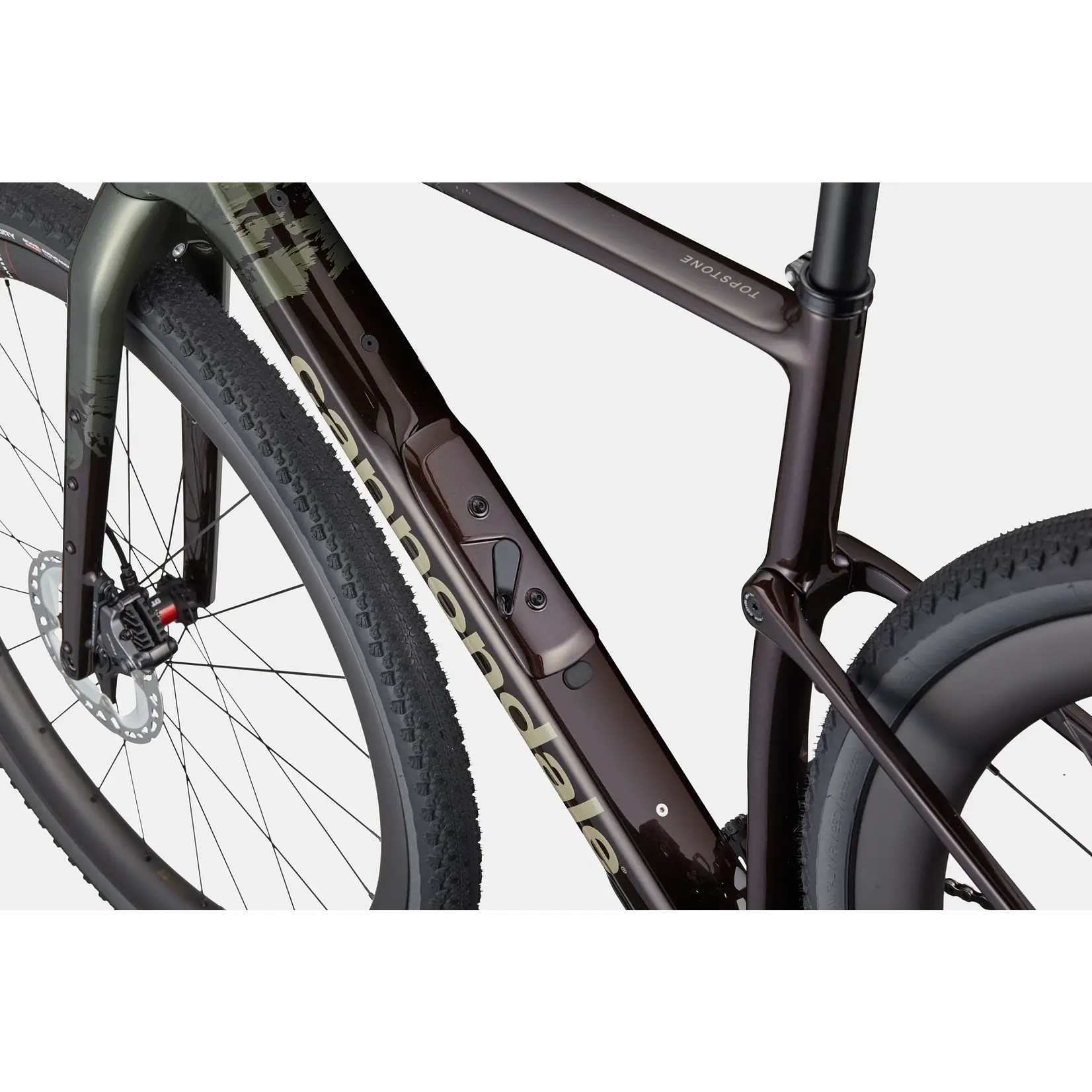

Our all-new StashPort storage system in the downtube is designed to be concealed yet convenient. Paired with the special StashBag, you can bring your essentials along for the ride and know that they’ll be kept safe, whatever you get up to out there. Meanwhile, multiple mounting points on the frame, mean more gear and more adventures.
Tuned Ride
A dialed-in ride, just for you. AKA: Proportional Response Construction. Everything from the carbon layup to the geometry on Topstone is individually tuned by frame size. So that the bike – including KingPin suspension – works in harmony to give you the best ride for you and your dimensions.
Specs
Frameset
Frame
Topstone Carbon, Kingpin suspension system, Proportional Response construction, downtube Stashport, internal cable routing, 12x142mm thru-axle, 27.2 dropper post ready, UDH, BSA 68mm threaded BB, flat mount disc, removable fender bridge, multiple gear/bottle mounts
Fork
Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts
Headset
Acros IS52/40 ICR
Drivetrain

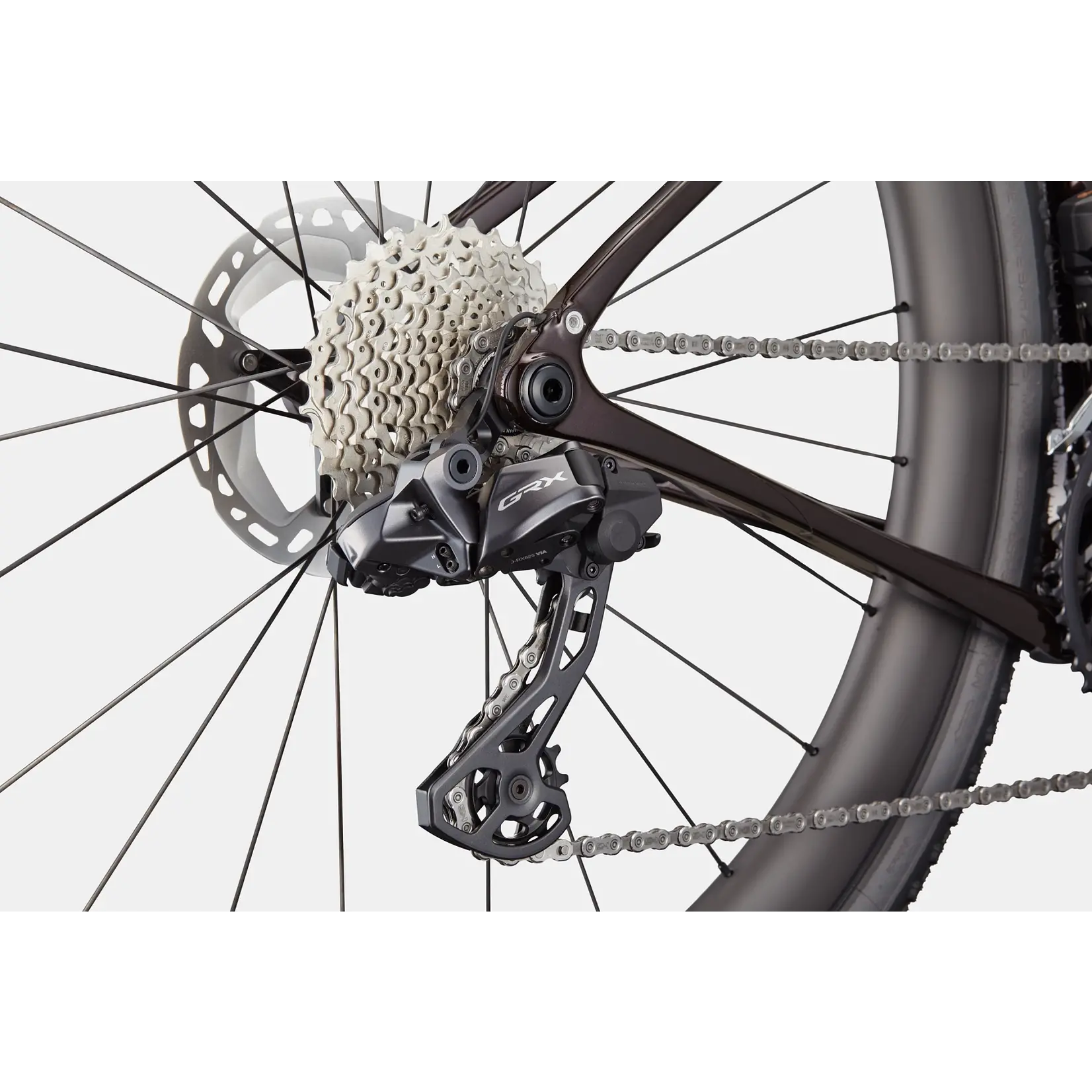

Rear Derailleur
Shimano GRX 825, Di2, Shadow RD+
Front Derailleur
Shimano GRX 825, Di2
Shifters
Shimano GRX 825, Di2, 12-speed
Chain
Shimano M8100, 12-speed

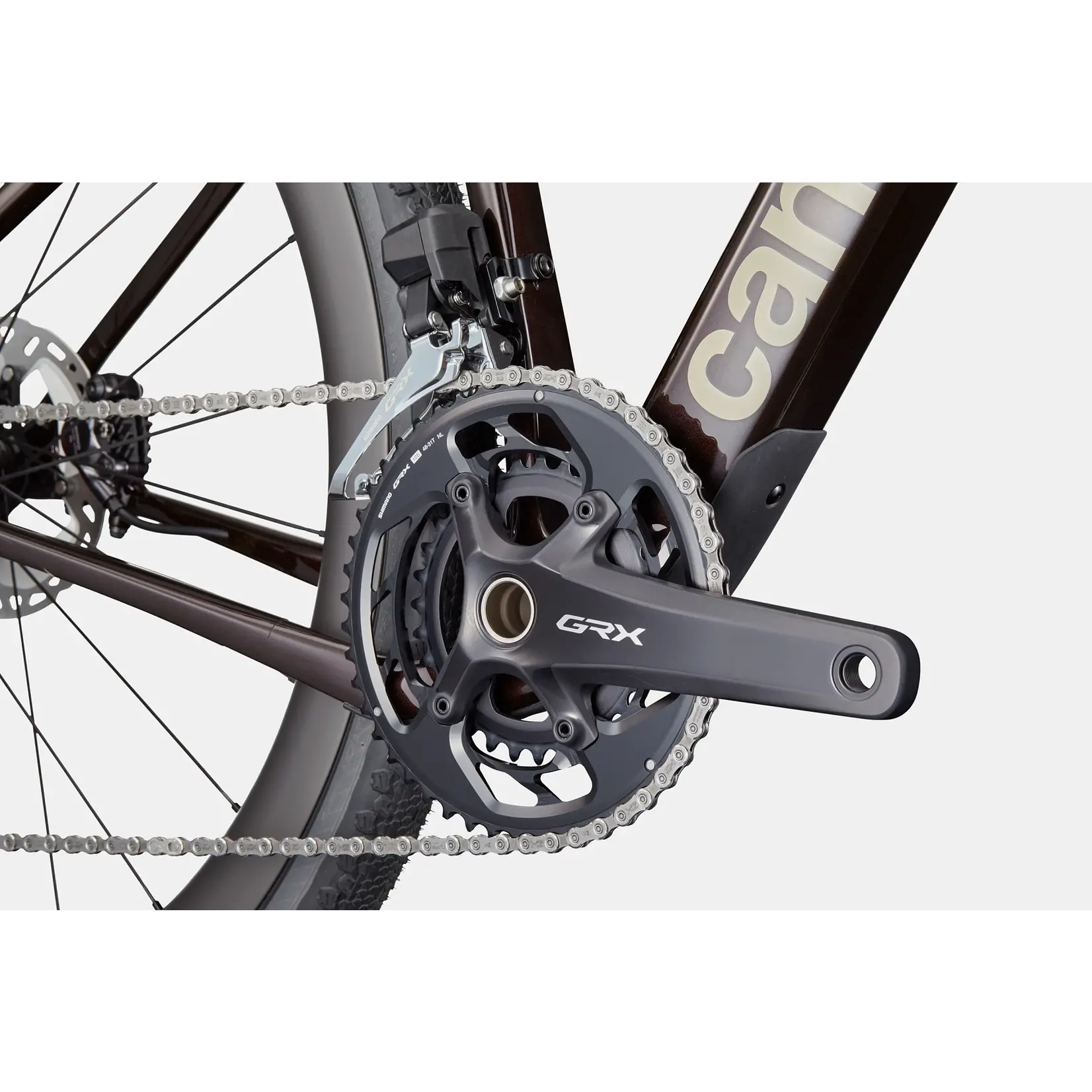

Crank
Shimano GRX 820, 48/31
Rear Cogs
Shimano Ultegra R8100, 11-34, 12-speed
Bottom Bracket
Shimano BSA 68
Brakes
Brakes
Shimano GRX RX820, 160/160mm MT800 centerlock rotors
Brake Levers
Shimano GRX 825 hydraulic disc
Wheels
Rims
Reserve 40 I 44 GR Carbon, Turbulent Aero Tech, 24h, tubeless ready
Spokes
Sapim CX-Ray Aero straight pull
Hubs
(F) DT Swiss 240, 12x100mm centerlock / (R) DT Swiss 240, 12x142mm centerlock
Tires
Vittoria Terreno T30, 700x45c, tubeless ready
Components

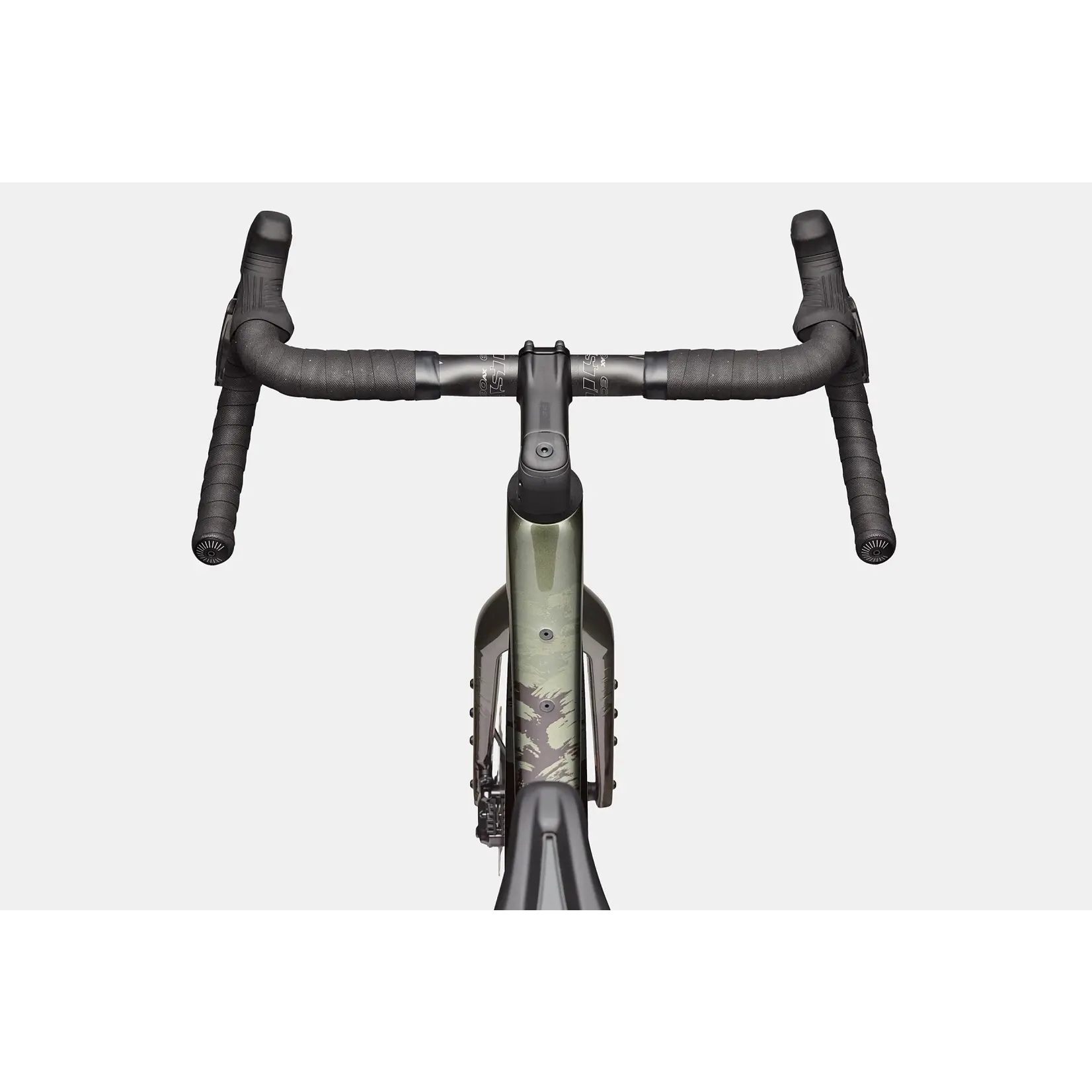

Handlebar
Easton EC90 AX Carbon
Stem
Cannondale C1 Conceal, Alloy, 31.8, -6°
Grips
Cannondale KnurlCork, 2.7mm
Saddle
Fizik Terra Argo X3, Kium rails
Seatpost
Cannondale SAVE Carbon, 27.2x350mm (47-58), 400mm (61)
Connectivity
Wheel Sensor
Cannondale Wheel Sensor
Extra
Extra 1
Large StashBag downtube storage bag, Reserve Fillmore tubeless valve stems, Shimano Di2 charger
Please note that, based on component availability and other factors, specifications are subject to change without notice.
