A super versatile eBike. On the one hand it comes as standard with mudguards, a pannier rack and lights to move comfortably around the city, yet it’s also a fully-fledged off road bike offering you access to the trails and bridleways when you feel like it
The perfect choice for someone looking for a versatile bike to give them the widest range of options possible. On the one hand it comes as standard with dropper seat post, mudguards, a pannier rack and lights to move comfortably around the city, yet it’s also a fully-fledged off road bike offering you access to the trails and bridleways when you feel like it.

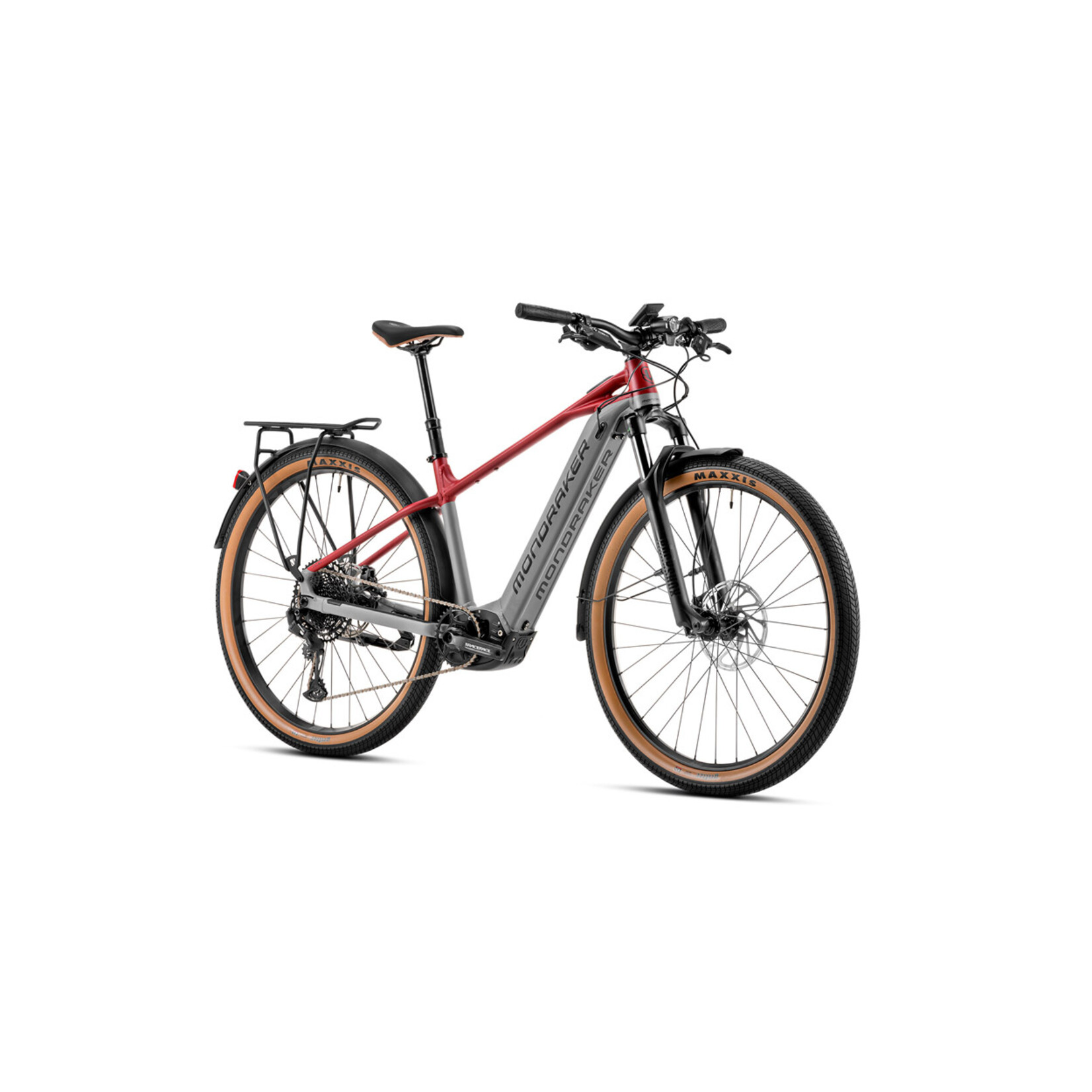

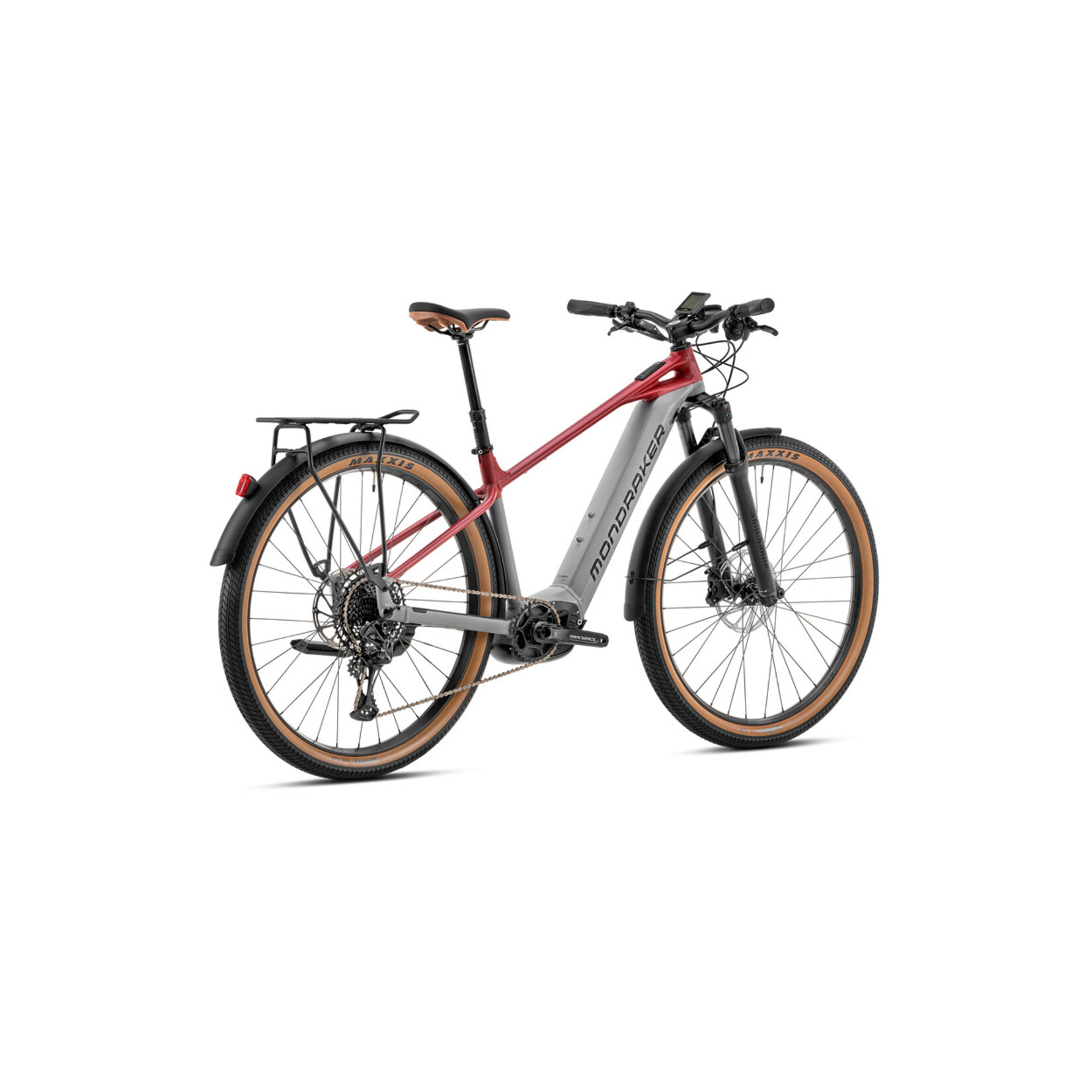

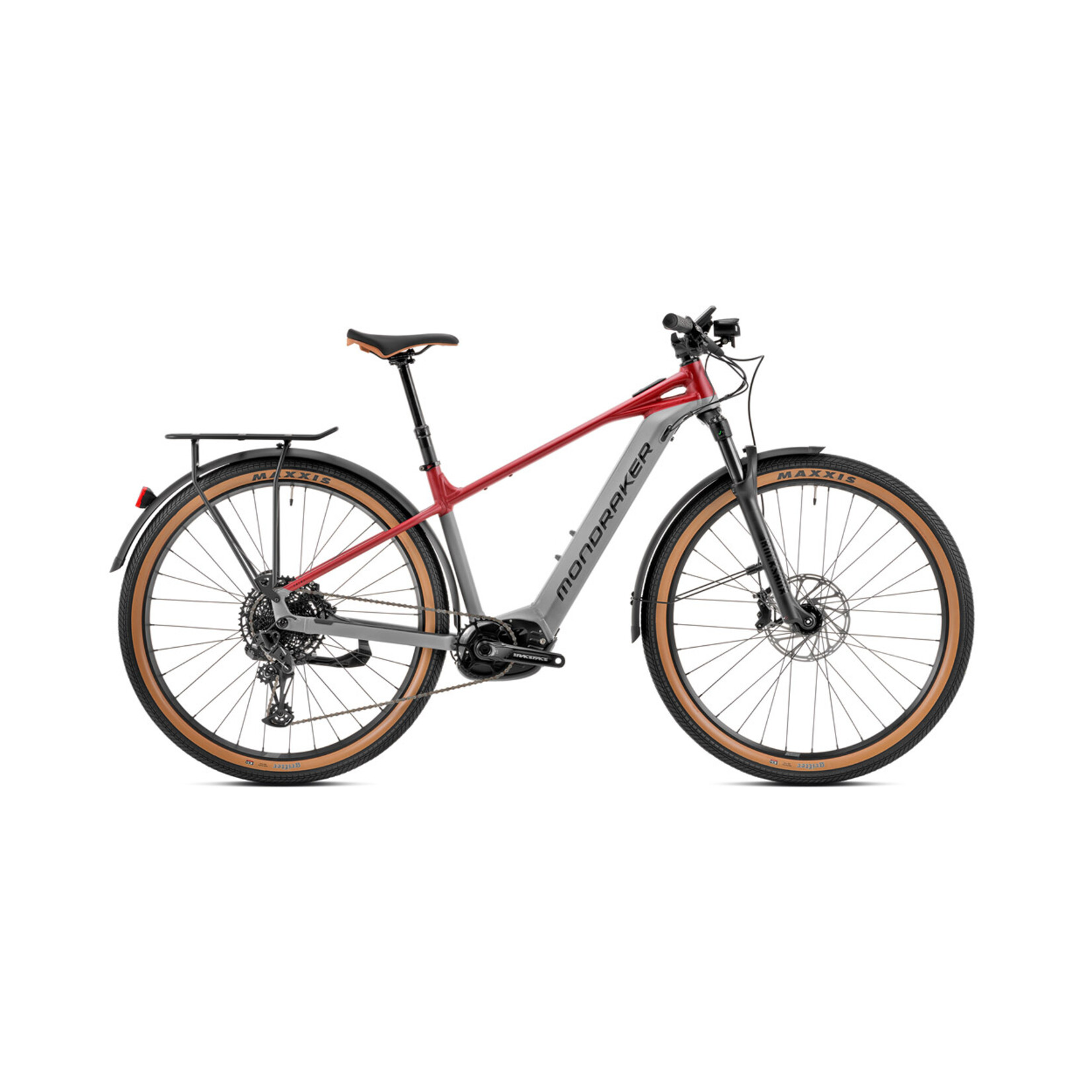

The Mondraker Prime R comes equipped with the Performance Line CX, the most powerful motor in Bosch's Smart System line up, the latest and most advanced ebike drive systems on the market.
| 01. FRAME | Prime 6061 Xtralite Full Butted Alloy, Forward Geometry, internal non-removable battery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor |
| 02. FORK | RockShox 35 Silver TK 29, 100mm, TurnKey, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air p |
| 03. HEADSET | Onoff Saturn tapered for 1-1/8" to 1-1/2" head tube, ACB sealed bearings, top 41x30.2x7x45 degreex45 degree, bottom 51.9x40x8x45 degreex45 degree |
| 04. STEM | MDK Urban 40mm 5 degree, 6061 forged alloy, 31.8mm barbore |
| 05. HANDLEBAR | MDK Urban 1.0 double butted 6061 alloy, rise: 20mm, width: 680mm, 9 degree backsweep, 5 degree upsweep, 31.8mm barbore |
| 06. GRIPS | Onoff Shaper |
| 07. SEATPOST | Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm |
| 08. SADDLE | MDK urban |
| 09. FRONT BRAKE | Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| 10. REAR BRAKE | Sram DB8, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| 11. BRAKE LEVER | Sram DB8, tool-free reach adjust |
| 12. FRONT HUB | Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts |
| 13. REAR HUB | Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts |
| 14. FRONT TIRE | Maxxis Grifter 29x2.5, single compound, 60TPI, wire bead, tanned wall. |
| 15. REAR TIRE | Maxxis Grifter 29x2.5, single compound, 60TPI, wire bead, tanned wall. |
| 16. CRANKSET | Race Face Aeffect ebike, 165mm |
| 17. RINGS | Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| 18. PEDALS | N/A |
| 19. CHAIN | Sram SX Eagle, 12s, Powerlock |
| 20. REAR DERAILLEUR | Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1 |
| 21. CASSETTE | Sram PG-1210, 11-50T, 12s |
| 22. MOTOR | Bosch Performance Line CX Cruise (25Km/h) Smart System |
| 23. BATTERY | Bosch Powertube 750Wh |
| 24. DISPLAY | Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller |
| 25. DERAILLEUR HANGER | Mondraker M068 |
| 26. OTHERS | Front light: 50LUX output DC 6-12V, waterproof Alloy cage. Rear Light: Fender Mount, w/ Reflective, e-bike version, 6-12V. Fenders: Alloy black MDK custom fenders. Rack: Alloy MDK rear Rack, Max loadi |
| 27. SIZES | M: 430mm / L: 470mm / XL: 510mm |
