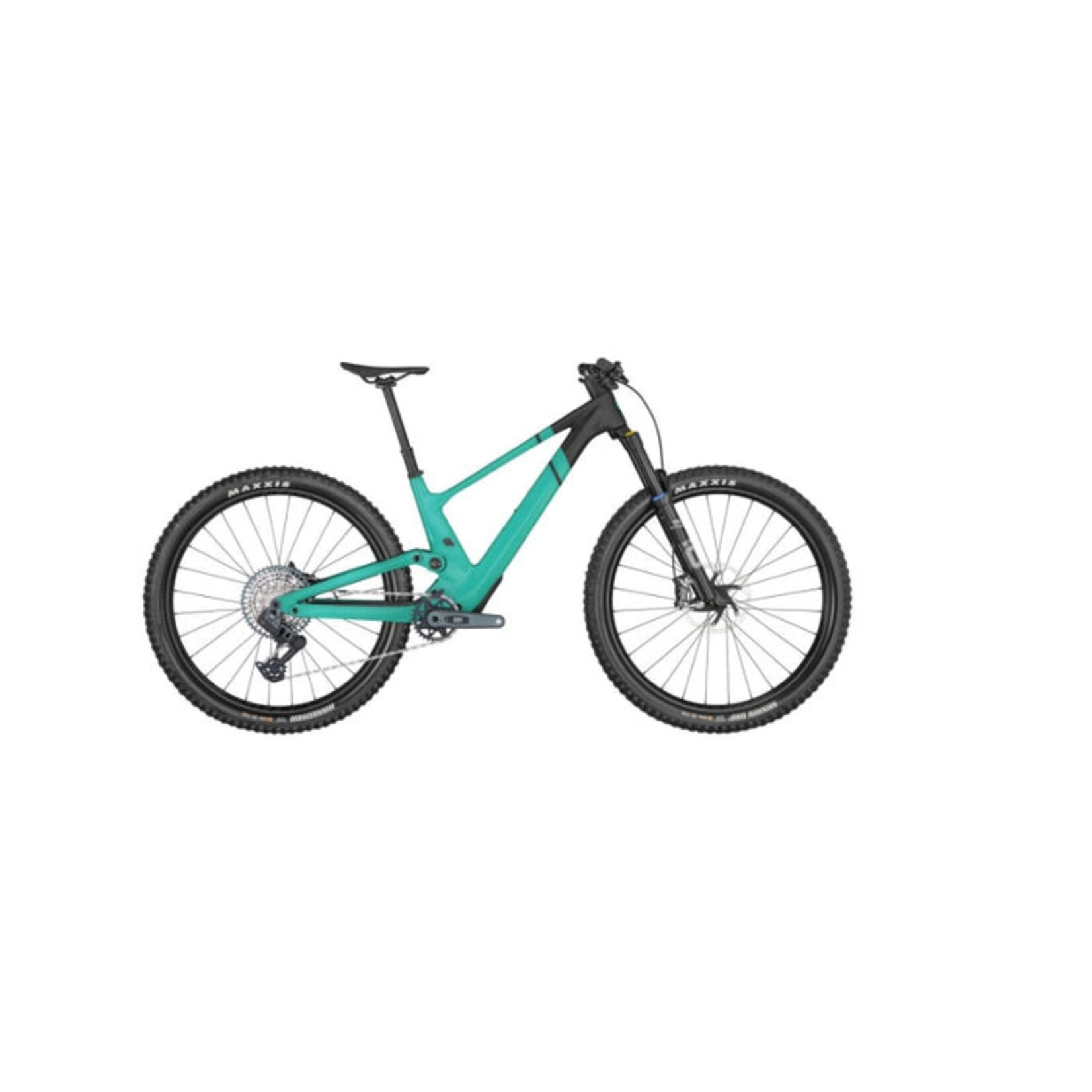

Made to go up the mountain in a hurry, and down the mountain even faster. The all new Genius ST features a custom Float X Nude shock from FOX and is the perfect bike for those who have an insatiable hunger for rippin' trail.
Please note that bike specifications are subject to change without prior notice.
Key Features
- Genius Carbon HMF-Alloy Frame
- FOX 36 P. Elite Grip2 160mm
- FOX FLOAT X Nude, TracLoc, 150mm
- SRAM GX Eagle AXS Transmission
- Shimano XT 4 Piston Hydraulic Disc Brakes
SPECS
BOTTOM BRACKET SRAM DUB PF 92 MTB Wide / shell 41x92mm
BRAKES Shimano XT M8120 4 Piston Disc
BRAKES ROTOR Shimano SM-RT76 / 6 Bolt / 203/F and 180/R
CASSETTE SRAM GX Eagle XS 1275 Transmission 10-52
CHAIN SRAM CN GX Eagle Transmission
CRANKSET SRAM GX Eagle Transmission Bash guard / DUB / 55mm CL / 32T
EXTRAS SRAM AXS Powerpack
FORK Ohlins RXF36 m.2 Air TTX-Technology HSC - LSC - LSR adjustable / 15x110mm Axle 44mm offset / tapered steerer 160mm travel
FRAME Genius Carbon HMF Mainframe with Alloy 6061 Swingarm
FRONT TYRE Maxxis Minion DHF / 2.6" / 120TPI Foldable Tubeless Ready / EXO 3C maxxTerra
GRIPS Syncros Endurance lock-on grips
HANDLEBAR Syncros Hixon iC Carbon Size S & M 15mm rise / Size L & XL 25mm rise back sweep 8° / 780mm
HEADSET Syncros - Acros Angle adjust & Cable Routing HS System +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB
REAR DERAILLEUR SRAM GX Eagle AXS Transmission 12 Speed Wireless Electronic Shift System
REAR TYRE Maxxis Dissector / 2.6" / 60TPI Foldable Tubeless Ready / EXO 3C maxxTerra
REMOTE SYSTEM TracLoc Technology Rear Suspension & Dropper Remote 3 Rear Suspension modes
SADDLE Syncros Tofino 2.0 Regular CRMO rails
SEATPOST Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm S size 140mm / M size 180mm / L & XL size 210mm
SHIFTERS SRAM GX Eagle AXS Rocker Controller
SHOCK FOX FLOAT X NUDE PE EVOL Piggy Back Trunnion SCOTT custom w. travel / geo adj. 3 modes: Climb-Traction Control-Descend Custom large Air volume / Comp & Reb. Adj. Travel 150-100-Climb / T185X55mm
WHEELSET Syncros Revelstoke 2.0 6 Bolt
WHEEL SIZE 29
NOTE Specifications subject to change
