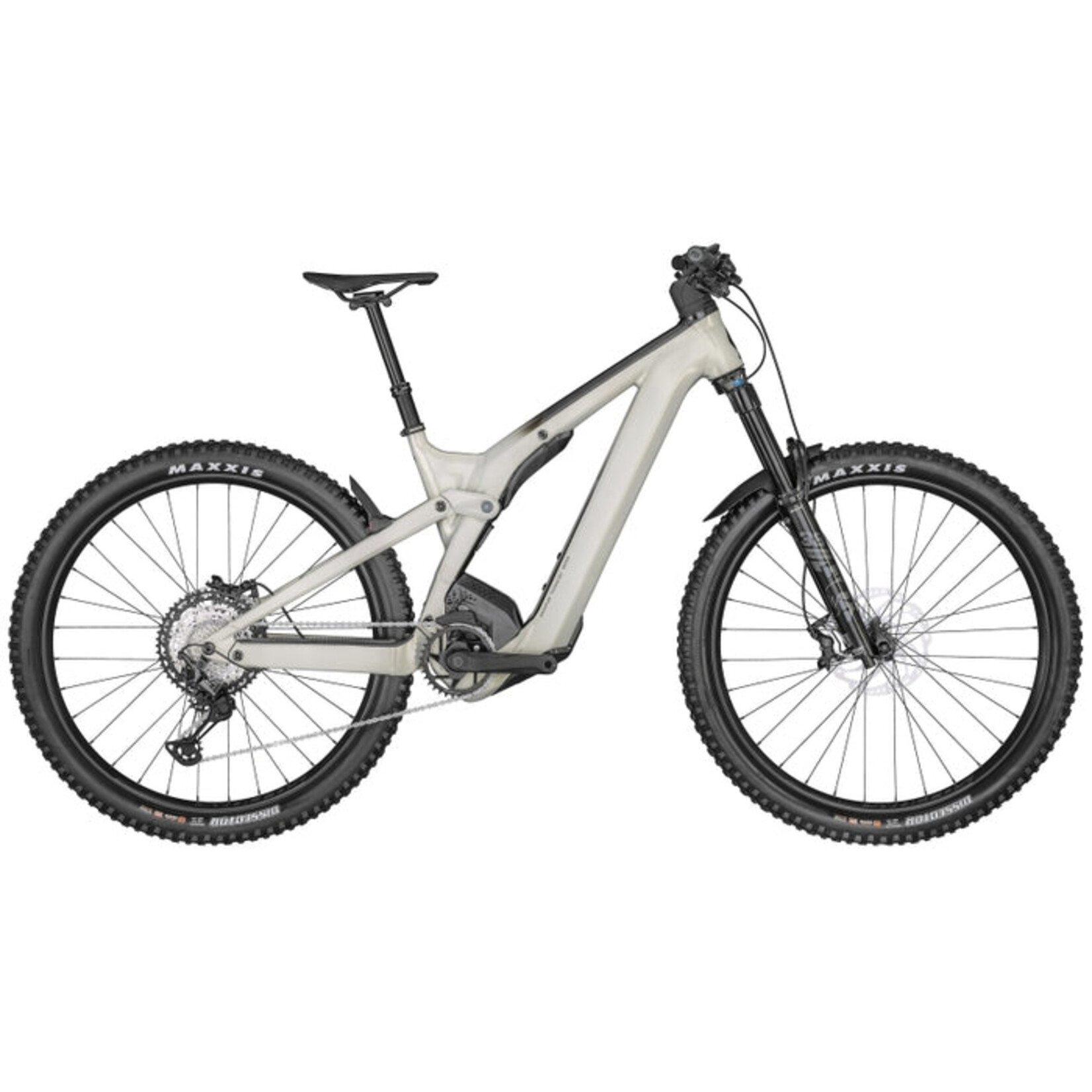

The all-new Patron eRIDE 910 was designed as a system optimized for all day trail riding. Supreme integration and painstakingly chosen geometry paired with a powerful new Bosch drive unit deliver much more than a great ride. What you get, rather, is a sublime experience up and down the mountain, time and time again. Patron eRIDE - boss the trails.
FrameAlloy Frame & LinkVirtual 4 link kinematic VLK29x2.6 / Boost 148x12mm UDH160mm travel / Bosch Gen4 / Integr. removable Battery1.8" Headtube, Central Kickstand MountIntegr. Cable
TravelFront: 160mm / Rear: 160mm
ForkFOX 38 Perf. Air / eMTB+ / FIT43-Modes with low Speed adj. / QR Axle 15x110mm axle44mm offset / tapered steerer / Reb. Adj. / Lockout / 160mm travel
Rear ShockFOX Float EVOL eRIDE Trunnion3 modes / Lockout-Trail-DescendDPS / Reb. Adj.Travel 160mm / 205x60mm
Remote SystemSCOTT TwinLoc 2 TechnologySuspension & Dropper Remote3 modes
Drive UnitBosch Performance CXEU: 25kmh / INT: 20mph
BatteryPowerTube 750Wh
DisplayBosch LED Remote & Kiox 300
Charger4A Charger
Rear DerailleurShimano XT / 12 Speed
ShiftersShimano SL-M8100
CranksetFSA CK-745 165mm / 34T
Chainguidee*thirteen / e*spec Slider
ChainringFSA WB604 / 34T / DM / Steel
ChainShimano CN-M8100
CassetteShimano CS-M8100 / 10-51 T
BrakesShimano SLX / BR-M7120 4 Piston
RotorFront&Rear: SM-RT70 CL 203mm
HandlebarSyncros Hixon 1.5 / Alloy 7050D.B.12mm rise / 9° / 780mmSyncros Pro lock-on grips
H'stemSyncros AM1.5 / 7050 Alloy31.8mm / 4° / 1 1/8"
SeatpostSyncros Duncan Dropper Post 2.5Size S 100mm / Size M 125mm / Size L 150mm / Size XL 170mm
SeatSyncros Tofino 1.5 RegularTitanium rails
HeadsetAcros / 1.8"ZS66 OD74 / integr. Cable
Front HubFormula CL-811 / 15x110mm
Rear HubFormula ECT-1481 / Boost 148x12mm
SpokesStainless Black
RimsSyncros MD30 / 32H / 30mm / Pin JointTubeless ready
Front TireMaxxis Dissector 29x2.6"120TPI Foldable BeadEXO+ / TR Tubeless ready3C Maxx Terra
Rear TireMaxxis Dissector 29x2.6"120TPI Foldable BeadEXO+ / TR Tubeless ready3C Maxx Terra
LightsBosch Light Cable pre-installed F&R
ExtrasSyncros Trail 2 fender 36/38Syncros eRIDE integrated light fender
Approx weight in KG26.10
Approx weight in LBS57.54
Max. System Weight128 kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.
