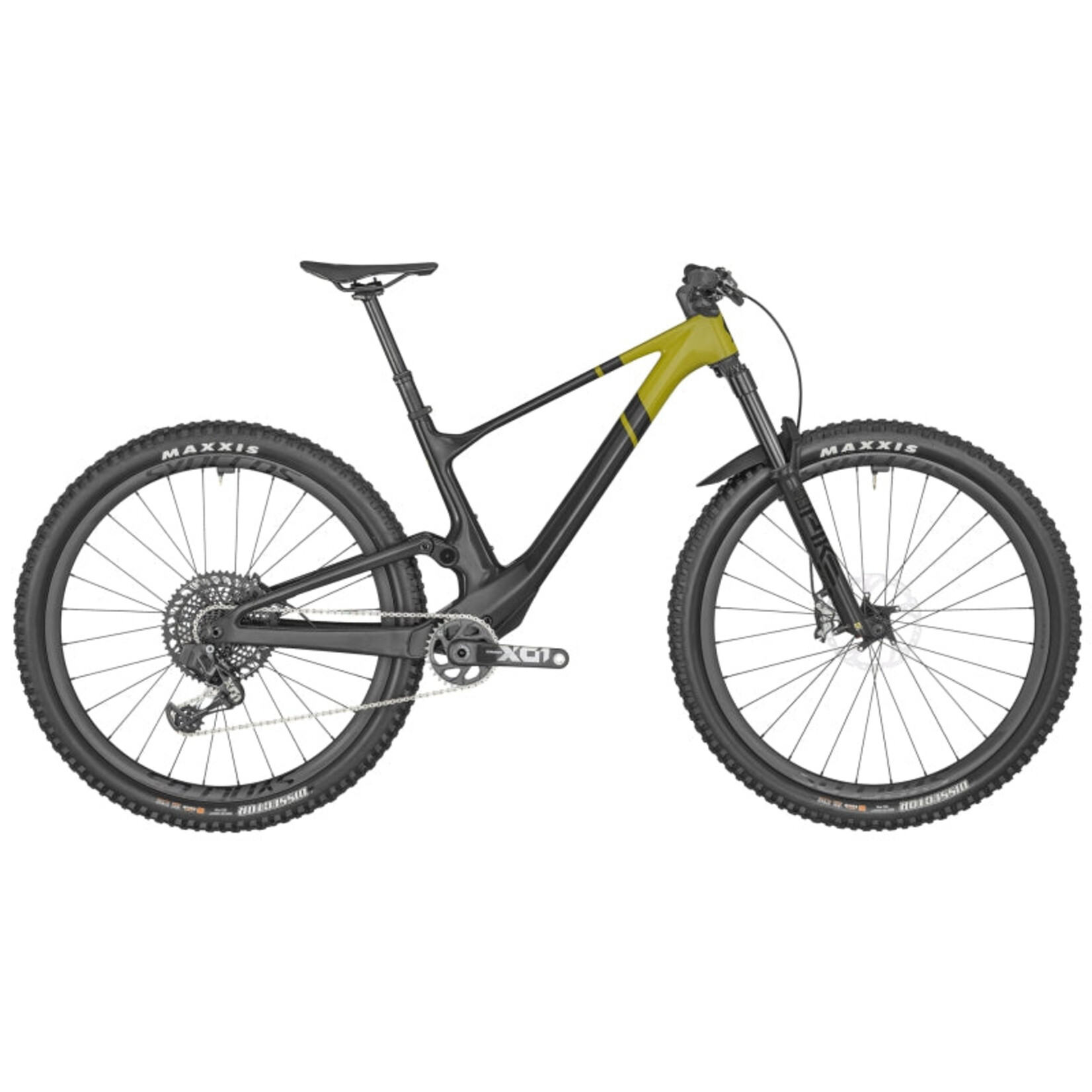

Our Spark ST line of bikes takes a classic Spark 900 vibe and adds suspension components for those aiming to spend a bit more time losing elevation. Now with a custom Float x NUDE from FOX, this short travel trail bike is as capable as ever.
Please note that bike specifications are subject to change without prior notice.
Key Features
- Spark ST Carbon HMF Frame
- RockShox Pike Ultimate 140mm Fork
- FOX FLOAT X Nude, TracLoc, 120mm
- SRAM X01 Eagle AXS 12 Speed
- Shimano XTR 4 Piston Hydraulic Disc Brakes
- Maxxis Dissector Tyres
Frame
Spark ST Carbon HMFIntegrated Suspension TechnologyFlex Pivot / Adjustable head angleSyncros Cable Integration SystemBB92 / UDH Interface / 12x148mm with 55mm Chainline
Fork
RockShox Pike Ultimate AirCharger 3 RC2 w/Butter Cups DamperHSC-LSC-LSR adjustable / 15x110mm Maxle Lite44mm offset / Tapered steererLockout / Reb. Adj. / 140mm travel
Rear Shock
FOX FLOAT X NUDE PE EVOL Piggy Back TrunnionSCOTT custom w. travel / geo adj.3 modes: Climb-Traction Control-DescendCustom large Air volume / Comp & Reb. Adj.Travel 120-80-Climb / T165X45mm
Remote System
TracLoc TechnologyRear Suspension & Dropper Remote3 Rear Suspension modes
Rear Derailleur
SRAM X01 Eagle AXS / 12 SpeedWireless Electronic Shift System
Shifters
SRAM GX Eagle AXS Rocker Controller
Crankset
SRAM X01 DUB Eagle Carbon crankarm55mm CL / 32T
BB-Set
SRAM DUB PF 92 MTB Wide / shell 41x92mm
Chain
SRAM CN X01 Eagle
Cassette
SRAM X01 XG1295 / 10-52 T
Brakes
Shimano XTR M9120 4 Piston Disc
Rotor
Shimano SM-RT76 / 6 Bolt / F&R 180mm
Handlebar
Syncros Fraser iC SL DC Carbon0° rise / back sweep 8° / mini Rise / 780mmSyncros Endurance lock-on grips
Seatpost
Syncros Duncan Dropper Post 1.531.6mm / S size 125mm / M size 140mm / L size 150mm / XL size 150mm
Seat
Syncros Tofino 1.5 RegularTitanium rails
Headset
Syncros - Acros Angle adjust & Cable Routing HS SystemStainless / +-0.6° head angle adjustmentZS56/28.6 – ZS56/40 MTB
Wheelset
Syncros Silverton 1.0-30 6 BoltF: 15x110mm, R: 12x148mm30mm Tubeless ready Carbon rim 28HDT Swiss Ratchet Hubs / XD DriverSRAM TyreWiz / Syncros SL Axle w/Removable Leverwith 6mm Allen, T30 and T25 Tools
Front Tire
Maxxis Dissector / 2.4WT" / 60TPI FoldableTubeless Ready / EXO 3C maxx Terra
Rear Tire
Maxxis Dissector / 2.4WT" / 60TPI FoldableTubeless Ready / EXO 3C maxx Terra
Extras
SRAM AXS PowerpackSRAM TyreWizSyncros Fork Fender
Accessories
Syncros Eco SealantTransport Axle
Approx weight in KG11.95 (Tubeless setup)
Approx weight in LBS26.35 (Tubeless setup)
Max. System Weight
128kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.
