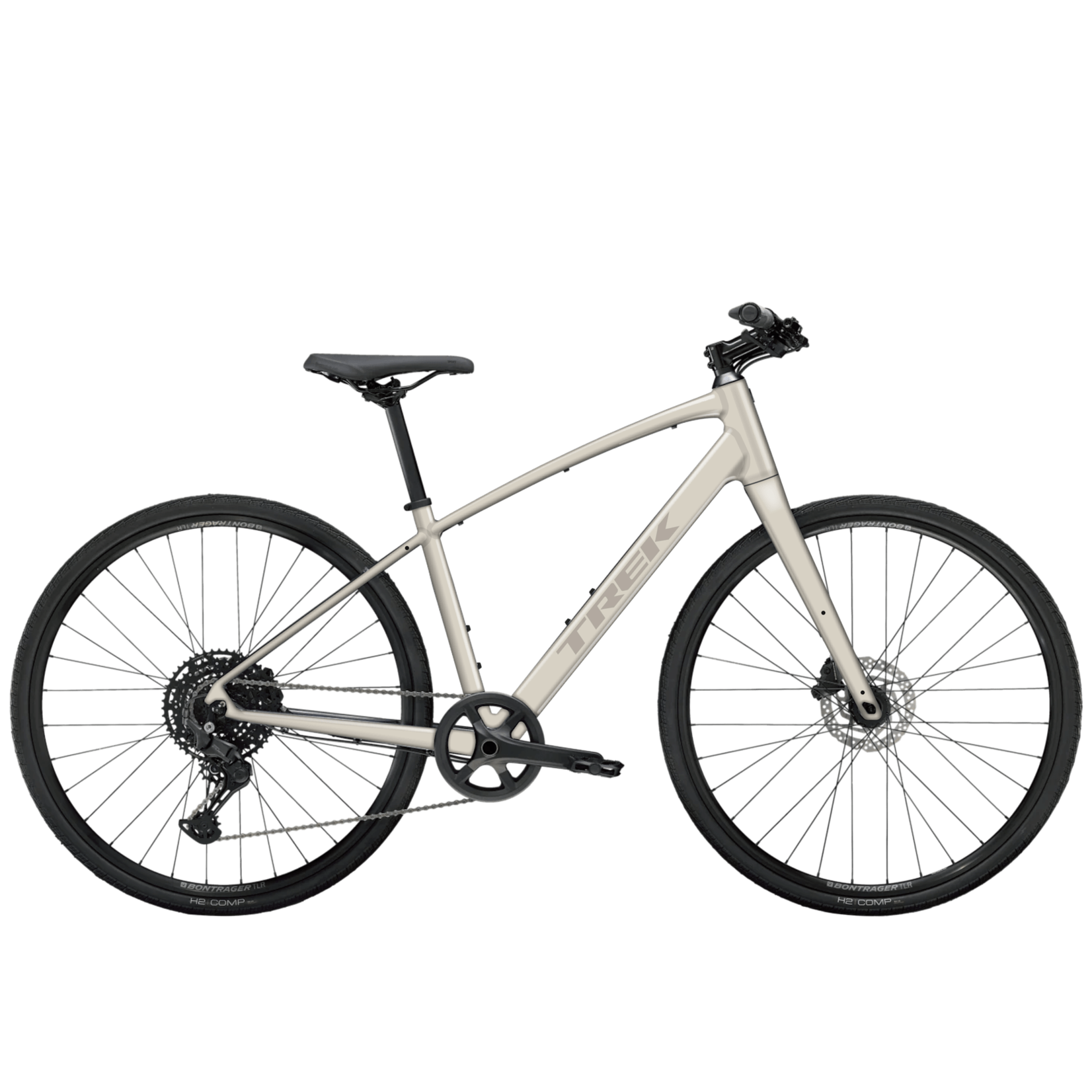

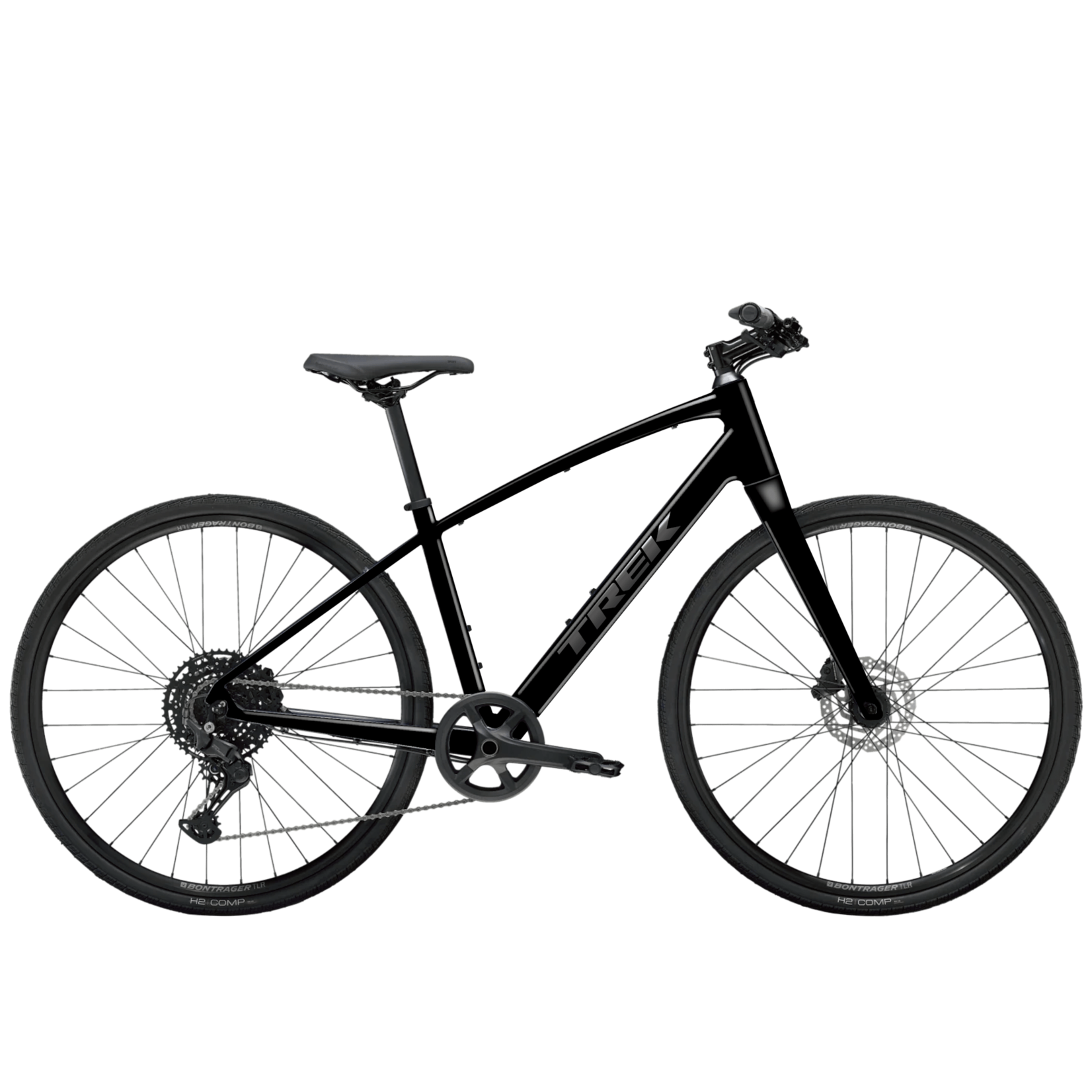

TREK FX 1 Stepover Gen 4

The FX 1 is a versatile and sleek hybrid bike for riding all around town. It's perfect to ride for exercise, commuting or fun. You get price-conscious parts that still deliver a big range of speeds, disc brakes that let you stop on a penny and loads of mounts for accessories.

You want a ride that does everything, while keeping price conscious. Cruising through town, going for a workout or just riding for fun are all up your alley.

A lightweight aluminium frame with mechanical disc brakes for all-weather stopping power. A Shimano drivetrain with eight speeds, so you're never pedalling too hard or too softly, and mounts that make it easy to accessorise your ride.

The FX 1 is a hybrid bike with budget-minded parts that perform on fitness rides, trips to the market or your morning commute. It has endless options for accessories and powerful disc brakes, which provide superior stopping power in all-weather conditions.

Confident disc braking means that bad weather doesn't have to keep you from enjoying your ride
The cables are routed internally, which protects them from the elements and adds to the bike's sleek look
It's easy to accessorise with racks, a kickstand, mudguards, lights and more!
Like every Trek hybrid, it's backed by a lifetime warranty and supported by a wide network of retail partners

Specs

Frameset

Frame	Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR
Fork	FX steel, flat-mount disc, rack mounts, 410mm axle-to-crown, ThruSkew 5mm QR

Wheels

Hub front	Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Skewer front	139x5 mm bolt-on
Hub rear	Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Skewer rear	152x5 mm QR
Tyre	Bontrager H2 Comp, wire bead, 30 tpi, 700x35 mm

Drivetrain

*Shifter	Size: XS, S, M, L, XL Shimano EF500, 2-speed
*Shifter	Size: XS, S, M, L, XL Shimano EF500, 8-speed
Front derailleur	Shimano Tourney TY606, 31.8/34.9 mm clamp, top swing, dual pull
Rear derailleur	Shimano Acera M3020-8, 40T max cog
Crank	Forged alloy, 46/30, 170 mm length
Bottom bracket	Sealed cartridge, 68 mm
Cassette	Shimano 8-speed, 12-32T
Chain	KMC Z8.3
Pedal	Wellgo nylon platform

Components

Saddle	Bontrager Sport
*Seatpost	Size: XS, S, M Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
*Seatpost	Size: L, XL Bontrager alloy, 27.2 mm, 12 mm offset, 400 mm length
*Handlebar	Size: XS, S, M, L Bontrager Riser, steel, 25.4 mm, 30 mm rise, 600 mm width
*Handlebar	Size: XL Bontrager Riser, steel, 25.4 mm, 30 mm rise, 620mm width
Grips	Trek Line Ergonomic Comp, lock-on
*Stem	Size: XS, S, M Bontrager alloy, 25.4 mm clamp, 10-degree, 90 mm length
*Stem	Size: L, XL Bontrager alloy, 25.4 mm clamp, 10-degree, 110 mm length
Brake	Tektro MD-U310 mechanical disc
Brake rotor	Tektro wave, 6-bolt, 160 mm

Weight

Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
