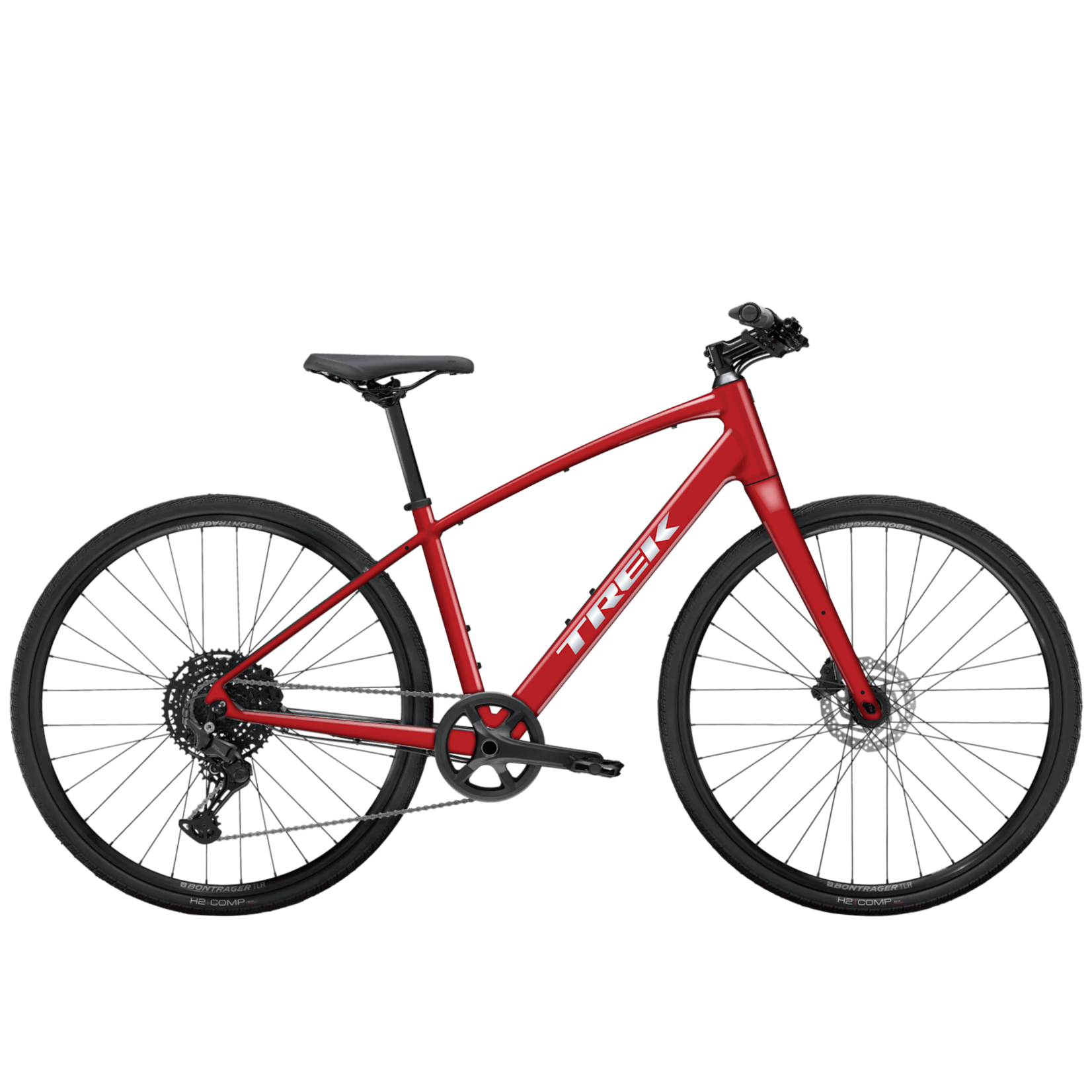

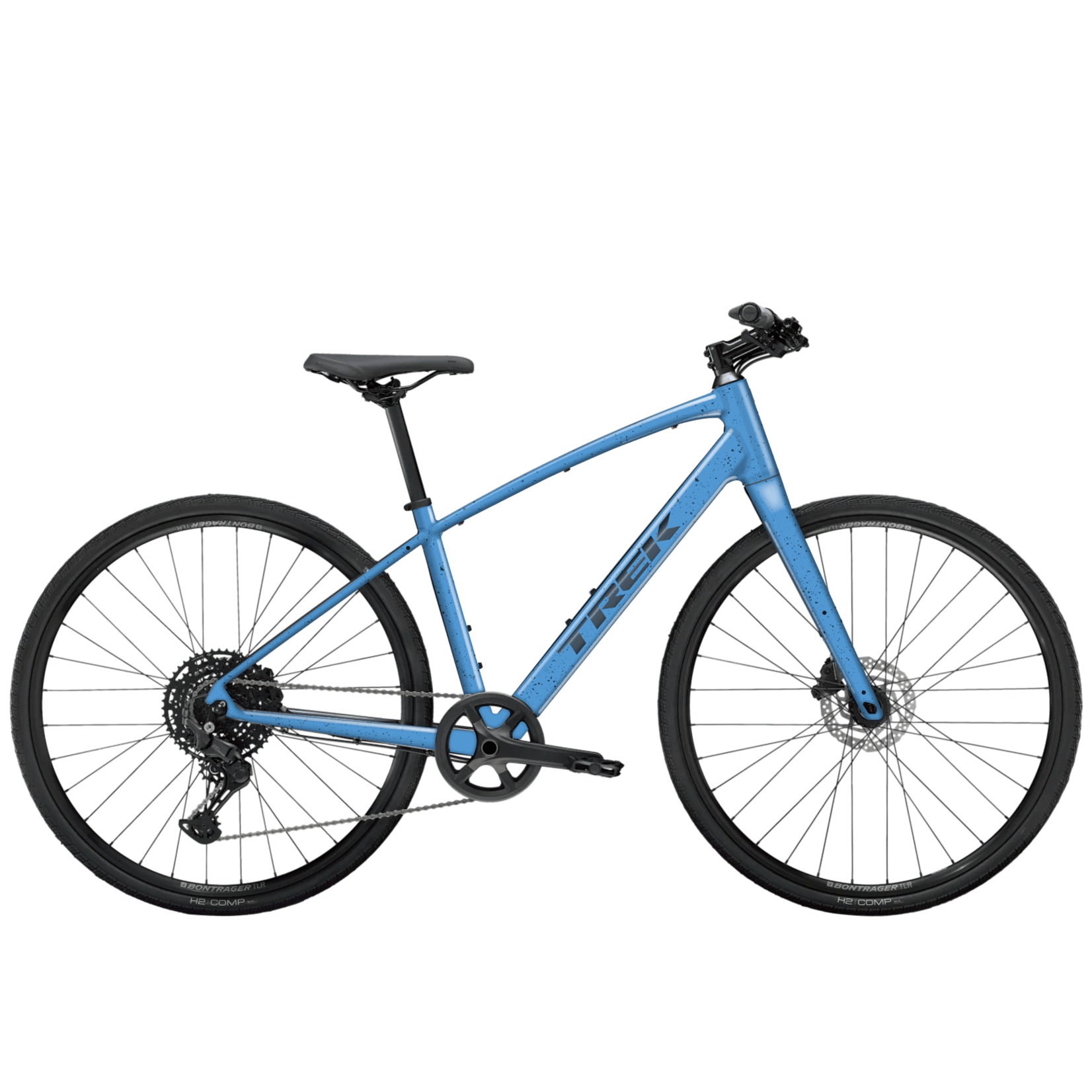

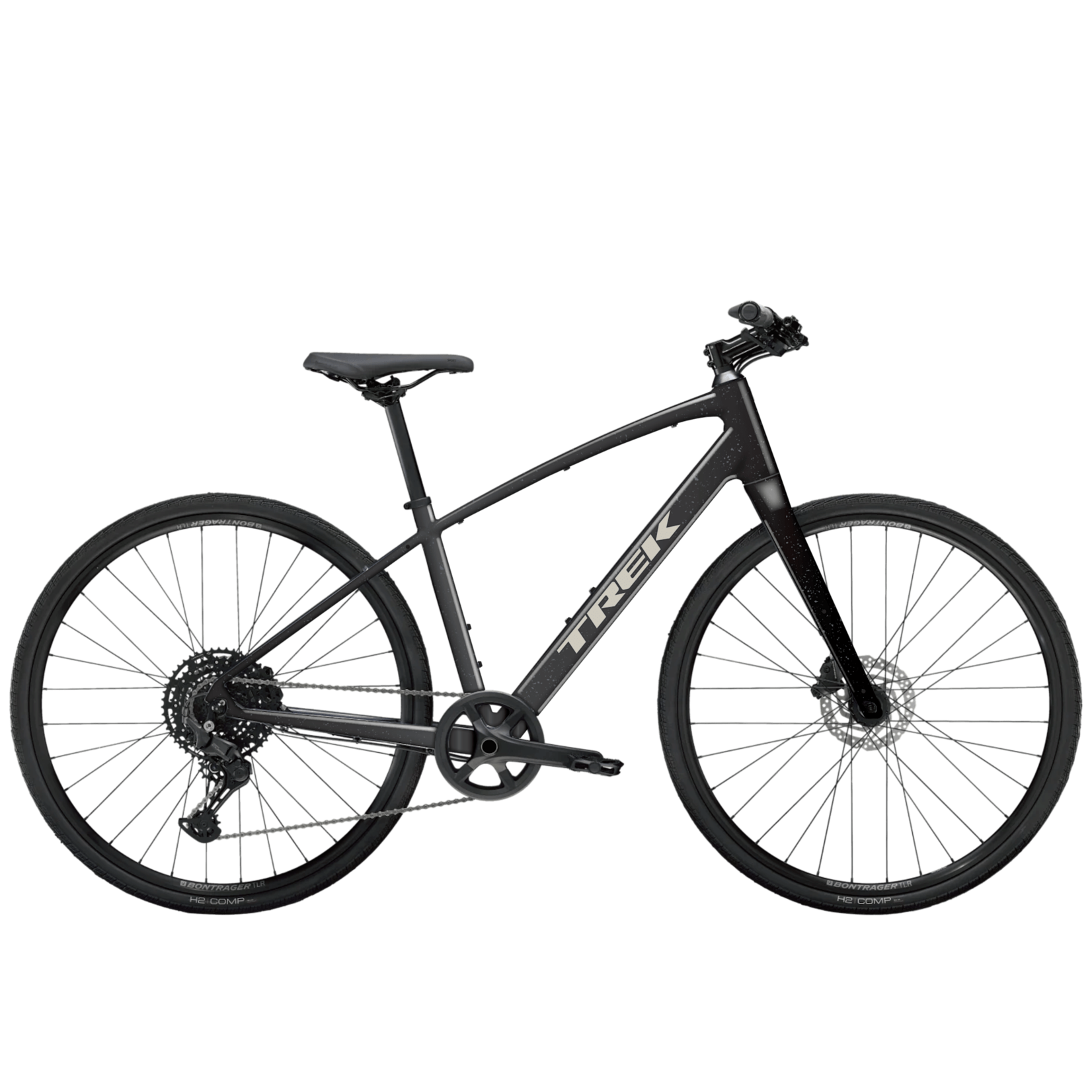

TREK FX 2 Stepover Gen 4

The FX 2 is a stylish and versatile hybrid bike for riding all around town. Exercise, commute or ride for fun with the wide range of speeds, reliable disc brakes that let you stop on a penny and loads of mounts for accessories.

You want nothing to keep you from riding! You're after a high-value hybrid bike with the superior all-weather stopping power of disc brakes, plus a lightweight frame and quality parts that will hold up over time.

A lightweight aluminium frame with hydraulic disc brakes for all-weather stopping power, a Shimano drivetrain with nine speeds and a wide range of gearing, so you're never pedalling too hard or too softly, powerful disc brakes and mounts that make it easy to accessorise your ride.

The FX 2 is a hybrid bike with parts that perform on fitness rides, trips to the market or your morning commute. It has endless options for accessories and powerful disc brakes, which provide superior stopping power in all-weather conditions.

The step-through frame makes it easy to hop on and go, and hop off when your ride is over
The cables are routed internally, which protects them from the elements and adds to the bike's sleek look
It's easy to accessorise with racks, a kickstand, mudguards, lights and more!
Like every Trek hybrid, it's backed by a lifetime warranty and supported by a wide network of retail partners

Specs

Frameset

Frame	Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR
Fork	FX alloy, flat-mount disc, rack mounts, 410mm axle-to-crown, ThruSkew 5mm QR

Wheels

Hub front	Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Skewer front	139x5 mm bolt-on
Hub rear	Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Skewer rear	152x5 mm QR
Rim	Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Tyre	Bontrager H2 Comp, wire bead, 30 tpi, 700x35 mm

Drivetrain

Shifter	Shimano U4000, 9-speed
Rear derailleur	Shimano CUES U4000
Crank	ProWheel Pro alloy, 40T narrow-wide steel ring, 170 mm length
Bottom bracket	Sealed cartridge, 68 mm
Cassette	Shimano LINKGLIDE LG300, 11-46, 9-speed
Chain	Shimano LG500
Pedal	Bontrager City pedals

Components

Saddle	Bontrager Sport
*Seatpost	Size: XS, S, M Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
*Seatpost	Size: L, XL Bontrager alloy, 27.2 mm, 12 mm offset, 400 mm length
*Handlebar	Size: XS, S, M Bontrager alloy, 31.8 mm, 15 mm rise, 600 mm width
*Handlebar	Size: L, XL Bontrager alloy, 31.8 mm, 15 mm rise, 660 mm width
Grips	Trek Line Ergonomic Comp, lock-on
*Stem	Size: XS, S, M Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length
*Stem	Size: L, XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length
Brake rotor	Tektro wave, 6-bolt, 160 mm
Brake Set	Tektro HD-R280 hydraulic disc, 160 mm rotor

Weight

Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
